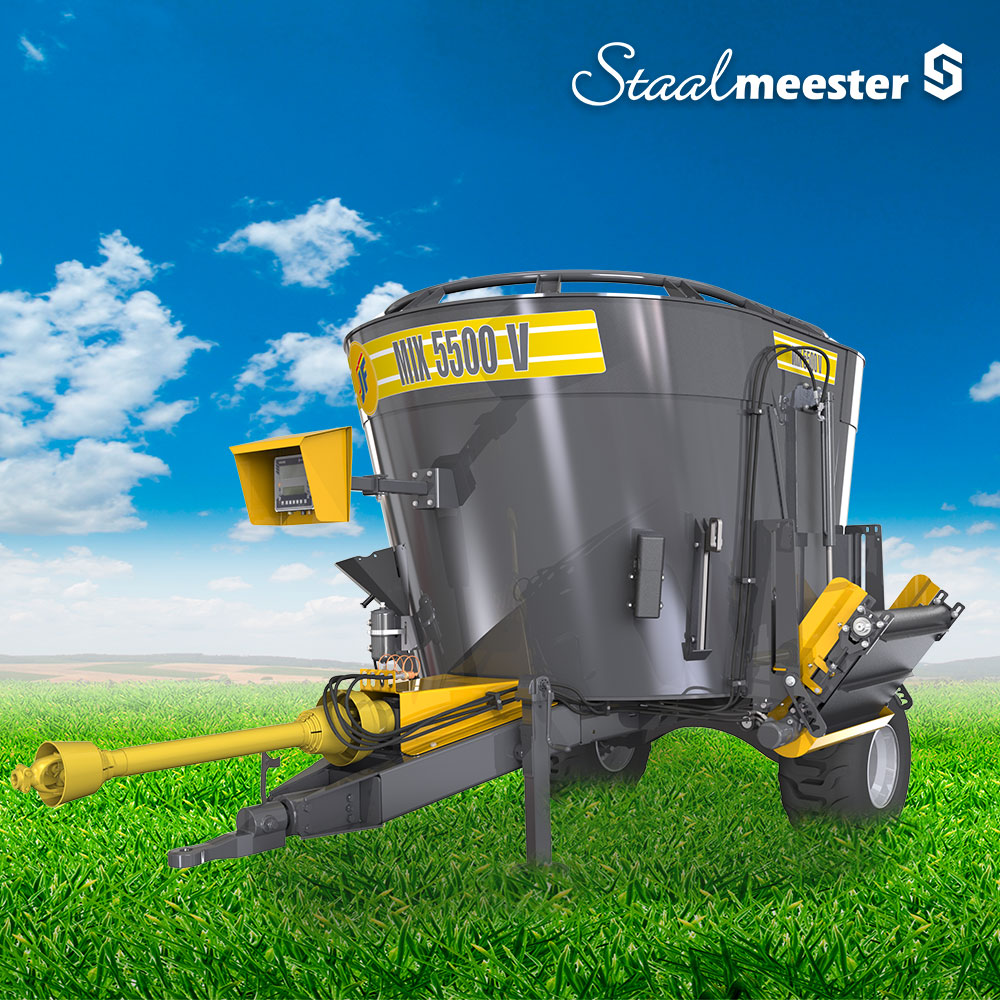

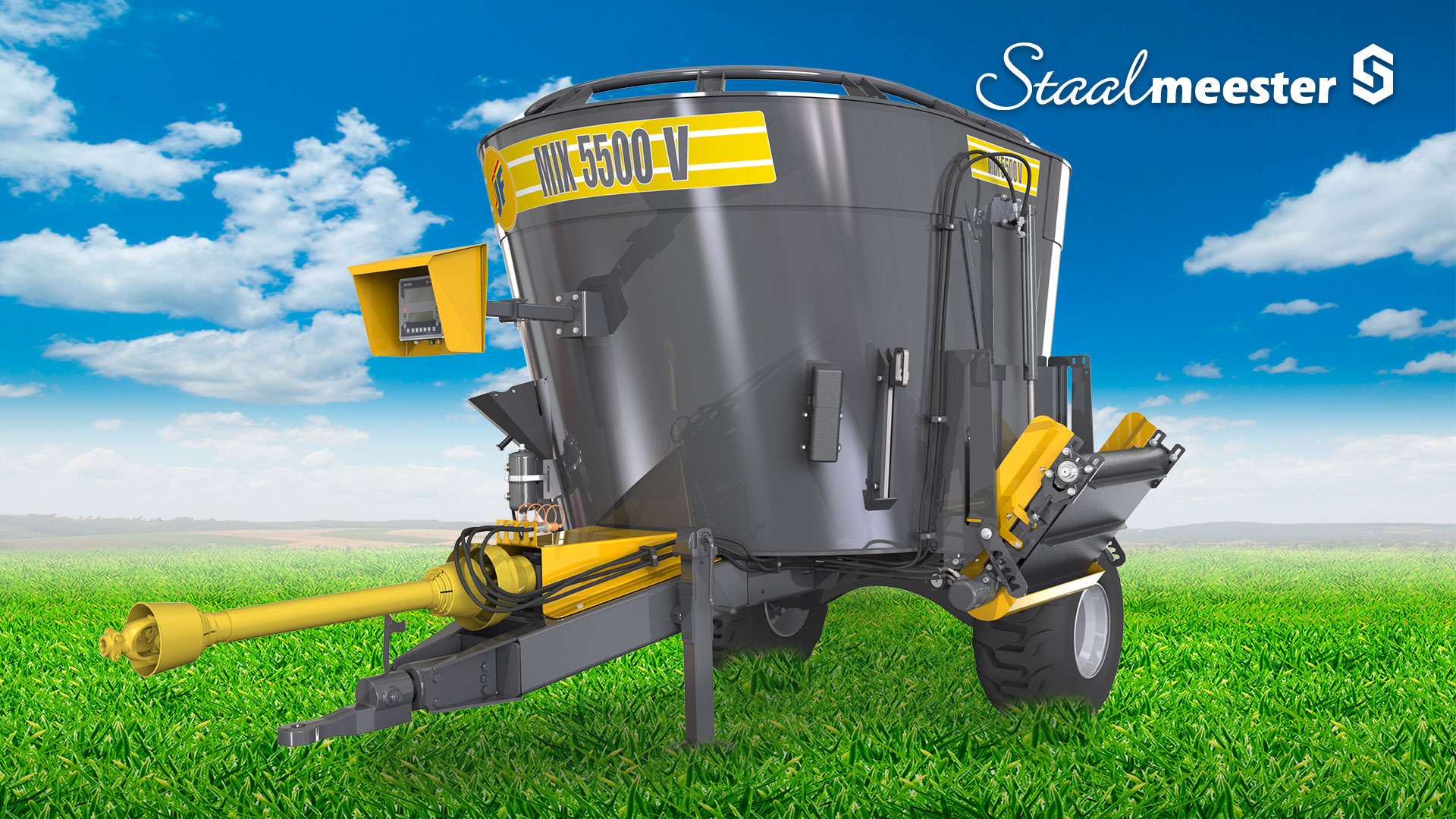

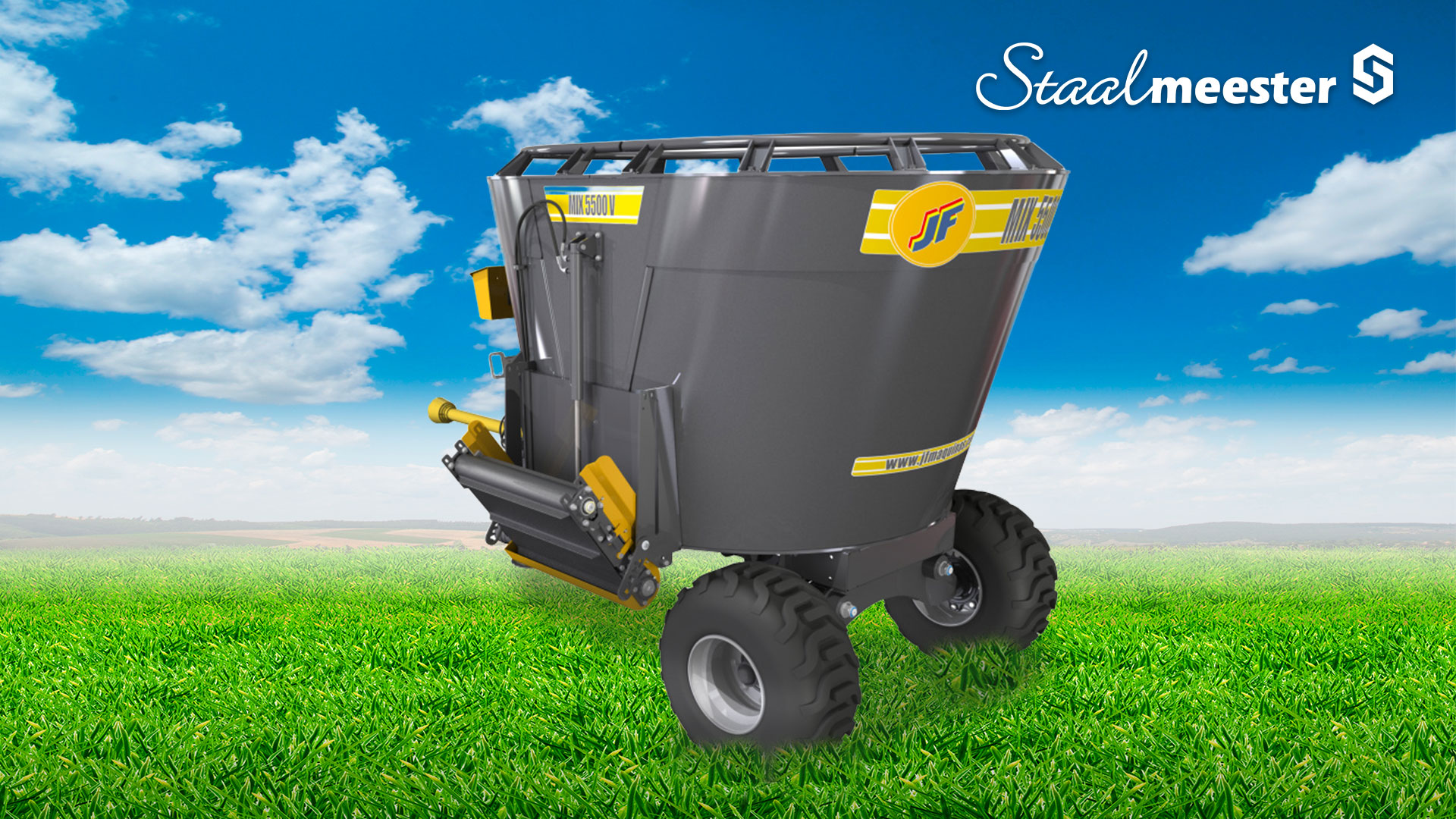

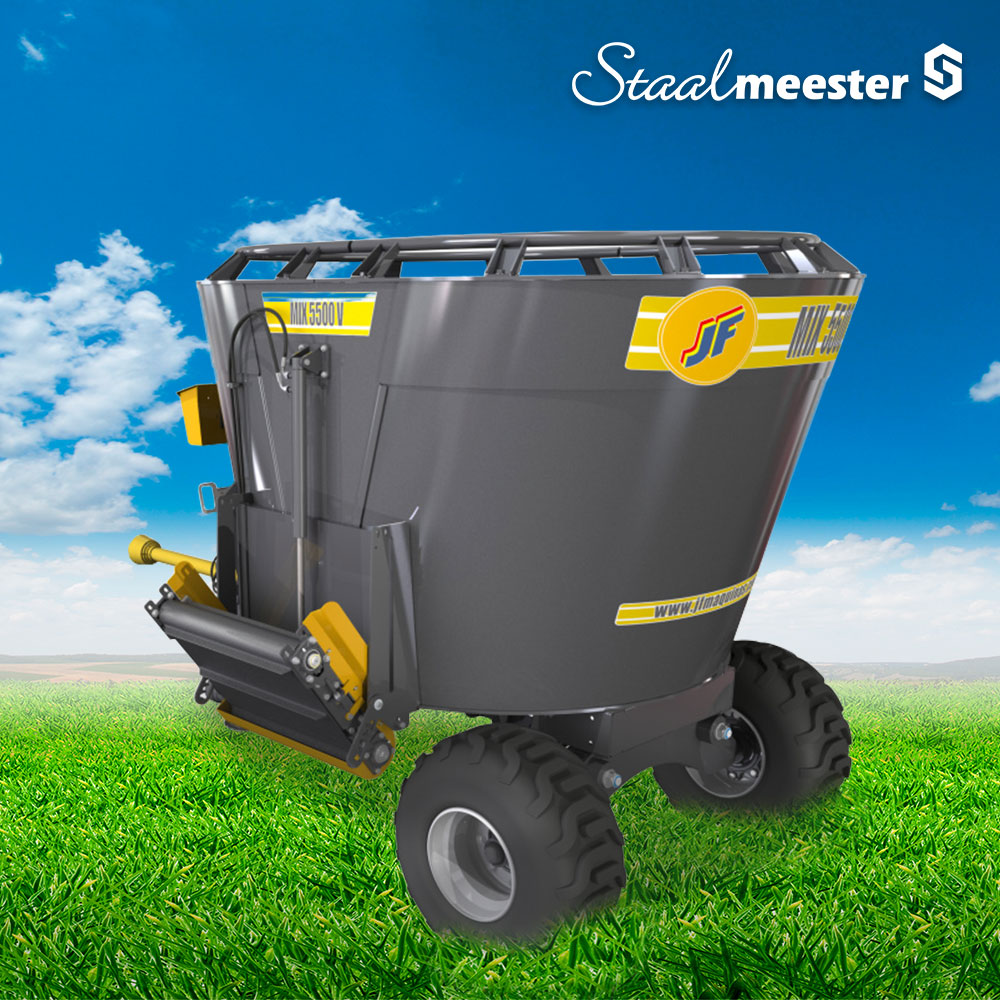

JF Vertical Mix 3500 and JF Vertical Mix 5500 mixers were designed thinking of two of the main challenges for the farmer: quality feed for higher performance and cost reduction. With JF technology and quality the MOVmix© mixing system delivers a homogeneous total mixed ration from the first to the last animal.
Taking in account that that feed costs might be responsible for the largest amount of the total cost of production in livestock, JF spent years in field testing, calculating the coefficients of variation using the Penn State Particle Separator, to actually deliver an equipment that can turn your investments in feeding into more profitability.

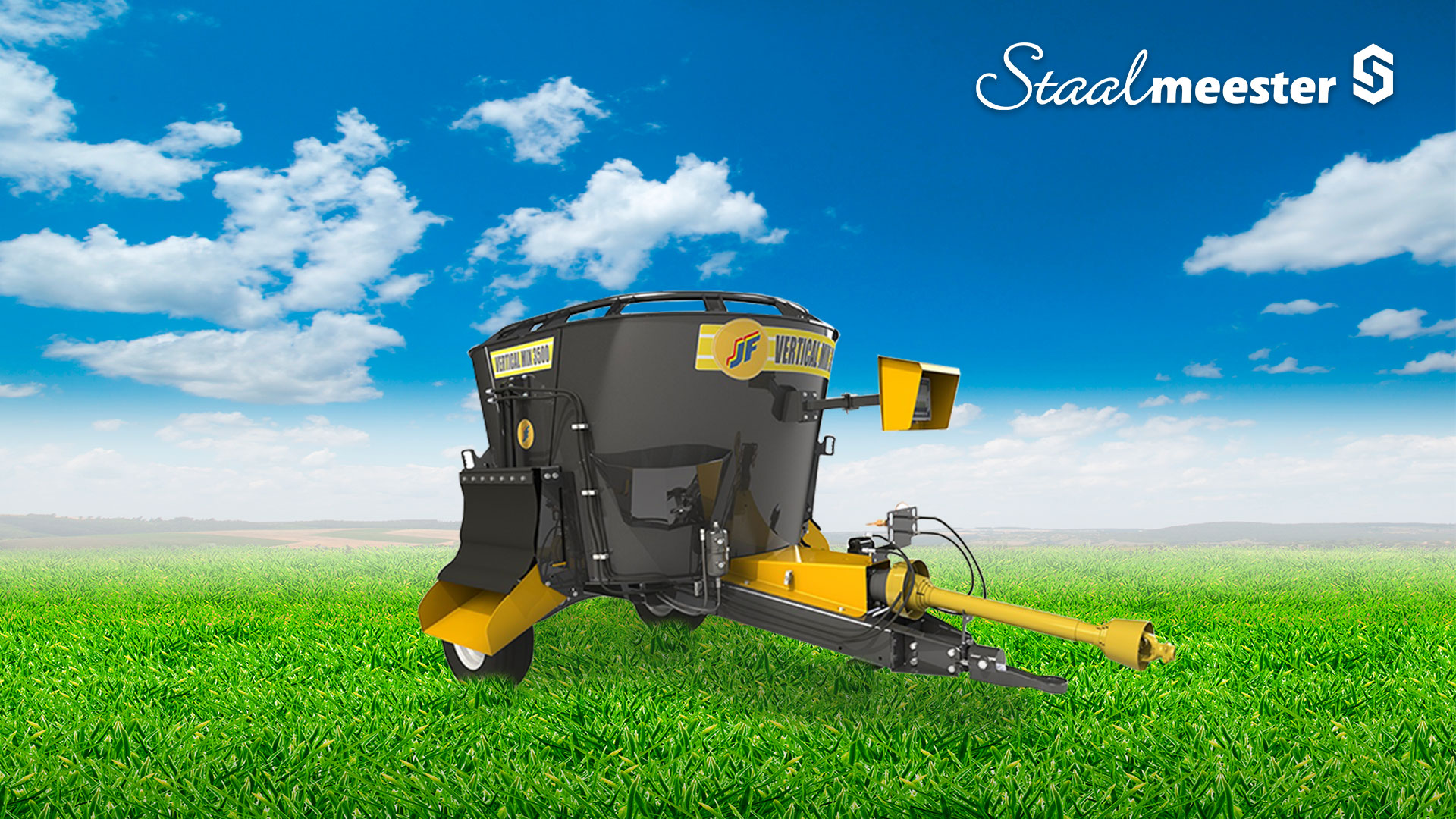

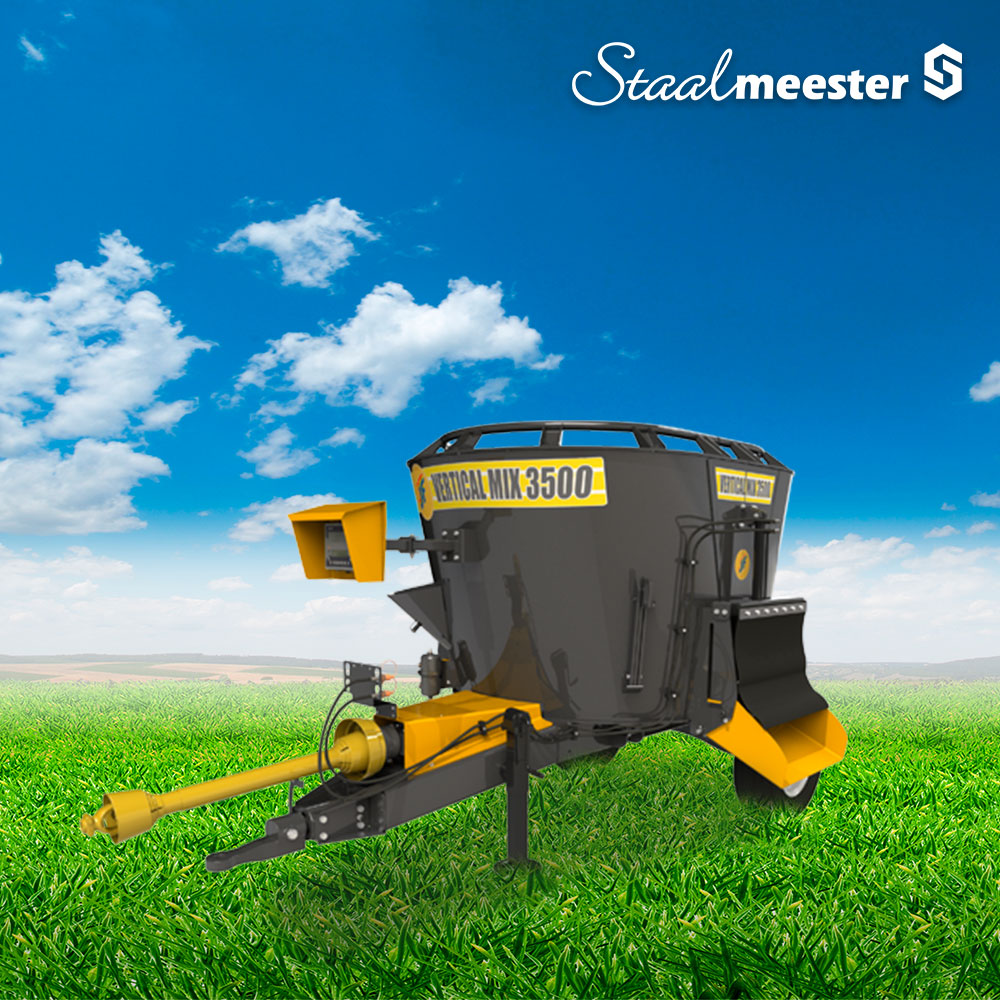

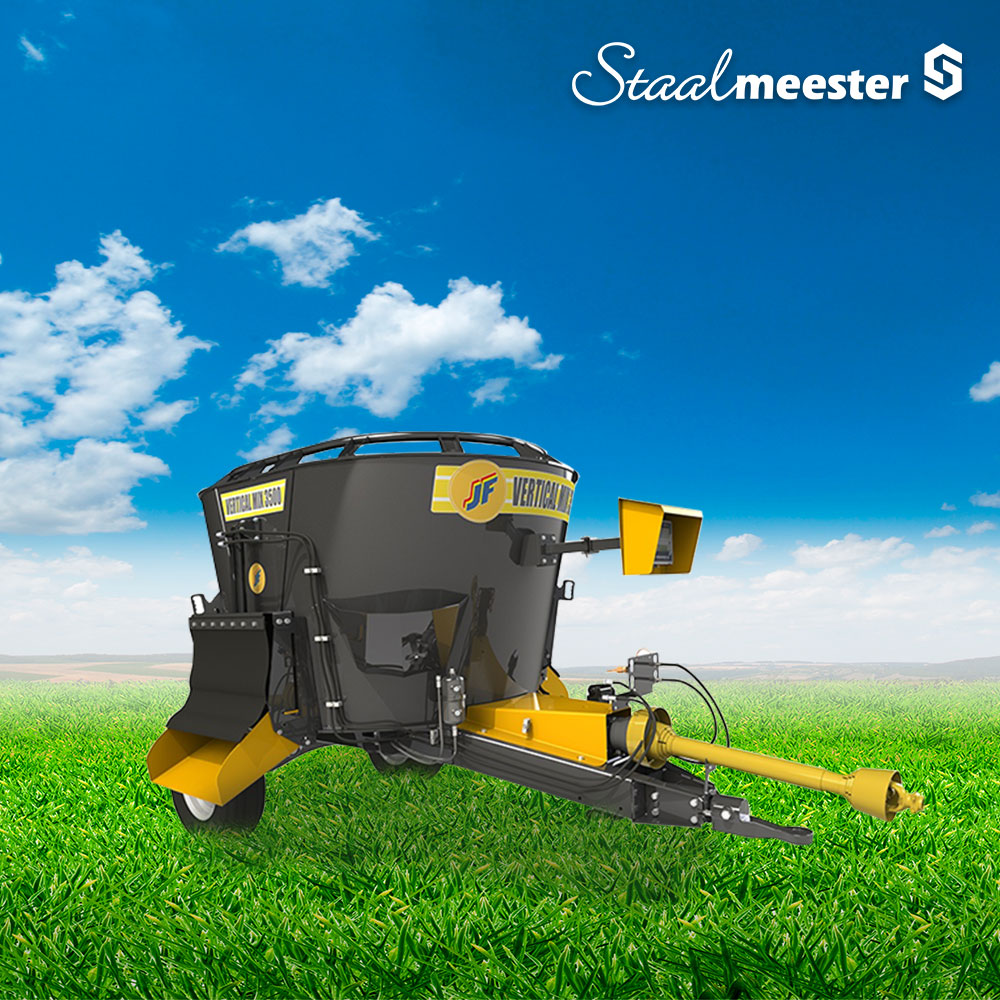

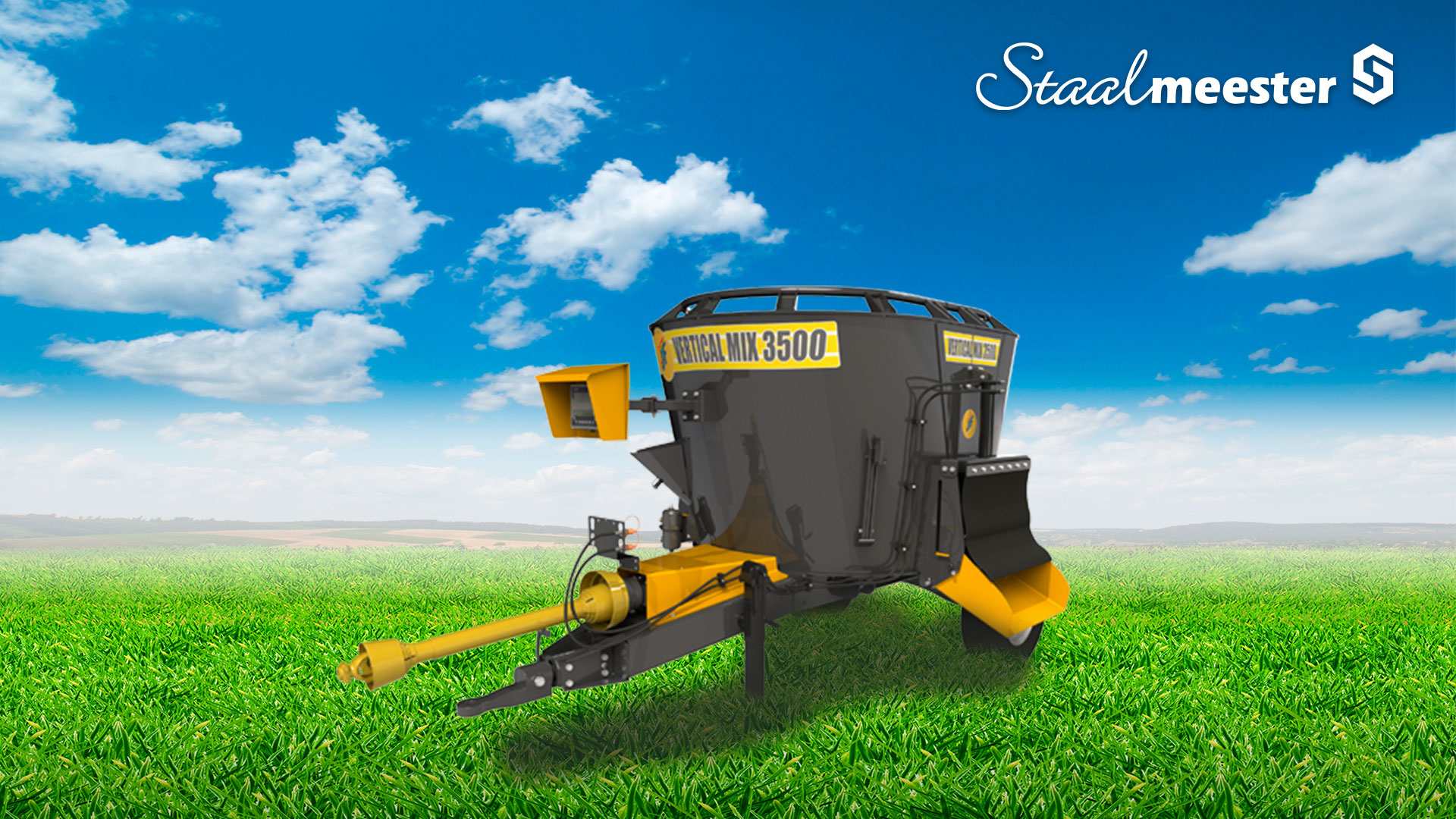

JF Mix 3500 Vertical Mixer

Product Overview

Capacity 3.5m³
Counter blade settings 5
Discharge height by belt up to 780mm
Discharge height by door up to 545mm
Discharge side by belt Left (optional)
Discharge side by door Right / Left / Both (optional)
Height 2180mm
Length 3570mm
Mixing auger Steel sheet 12,7mm
Mixing tank sheet 5mm stainless steel
Number of blades 9
Number of counter blades 2
Power source Tractor PTO
Required power at PTO 50 hp
Required revolution at PTO 540 RPM
Tires 10.5/65-16 RA 28 8 layers
Weight with 1 discharge door (empty) 1780 kg
Weight with 2 discharge doors (empty) 1836 kg
Weight with discharge belt (empty) 1840 kg
Width 2650mm

Additional Info:

Benefits:
MOVmix© technology guarantees efficient mixing in the entire tank, even close to the walls
Stainless steel tank for longer durability, with independent chassis that facilitates maintenance
Mixture with low coefficient of variation tested in several types of diet
Curved and smooth side walls that guarantee a continuous flow of ingredients
Chassis designed for better stability of the tank
Feed window for adding ingredients
Centralized weighing system screen for easier viewing
Extended hay guard
Italian weighing system with three high precision sensors
Heavy duty planetary gearbox
Cutting blades and counter blades with position adjustment for better adaptation to several types of diet. Option to change the Forage Bagger to Cracker Grain Bagger (for moist grain)

JF VERTICAL MIX 3500

Watch the JF Vertical Mix 3500 video on our YouTube channel.
