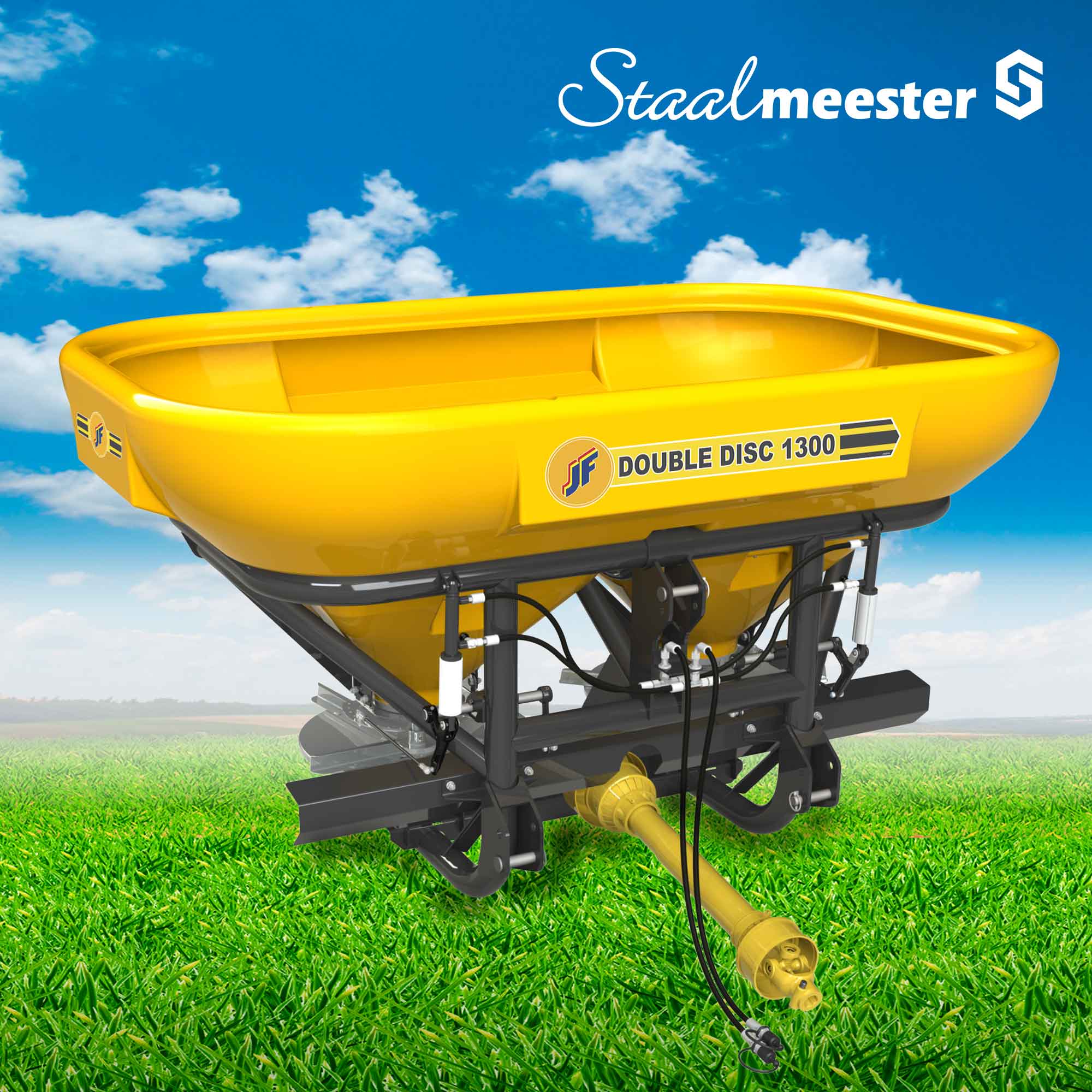

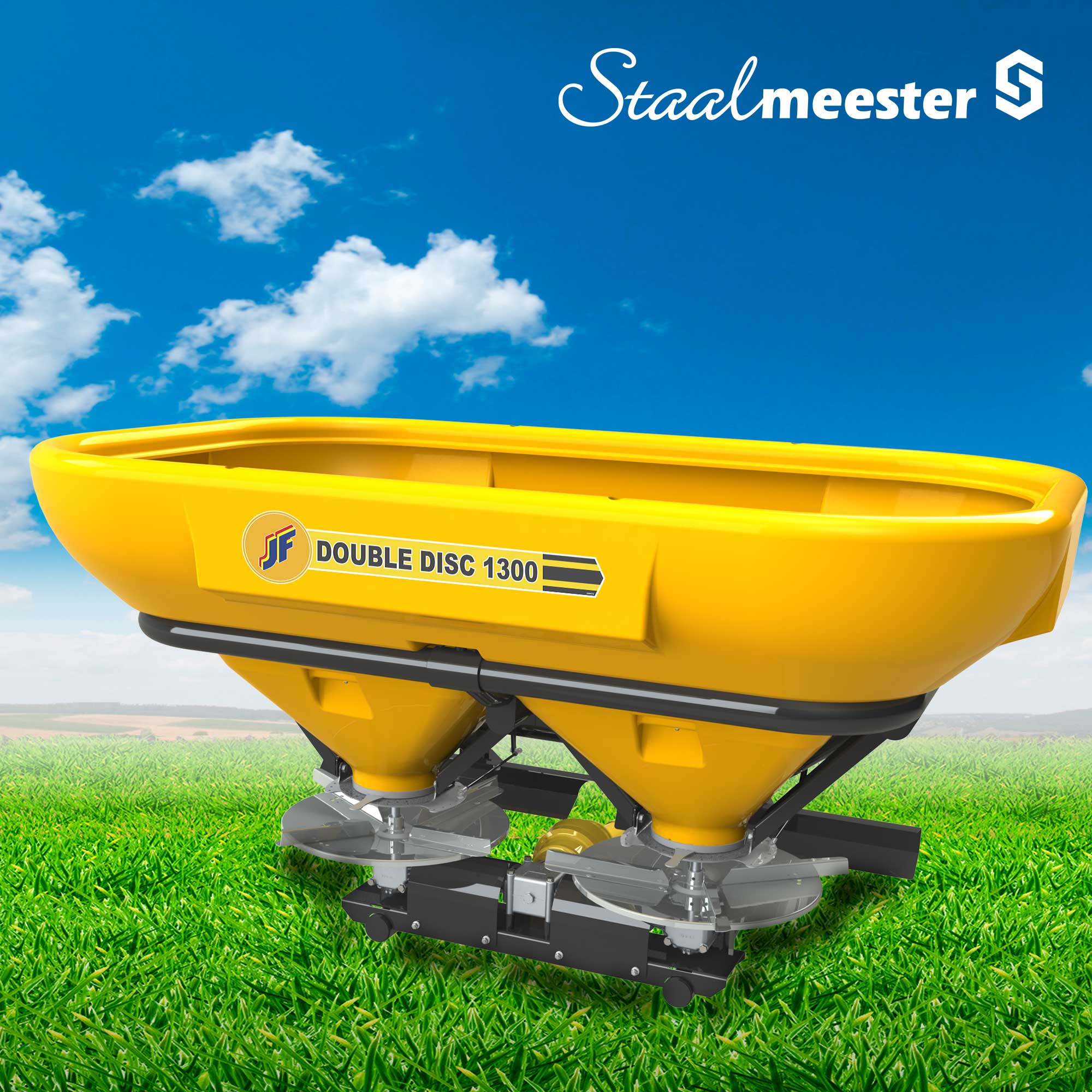

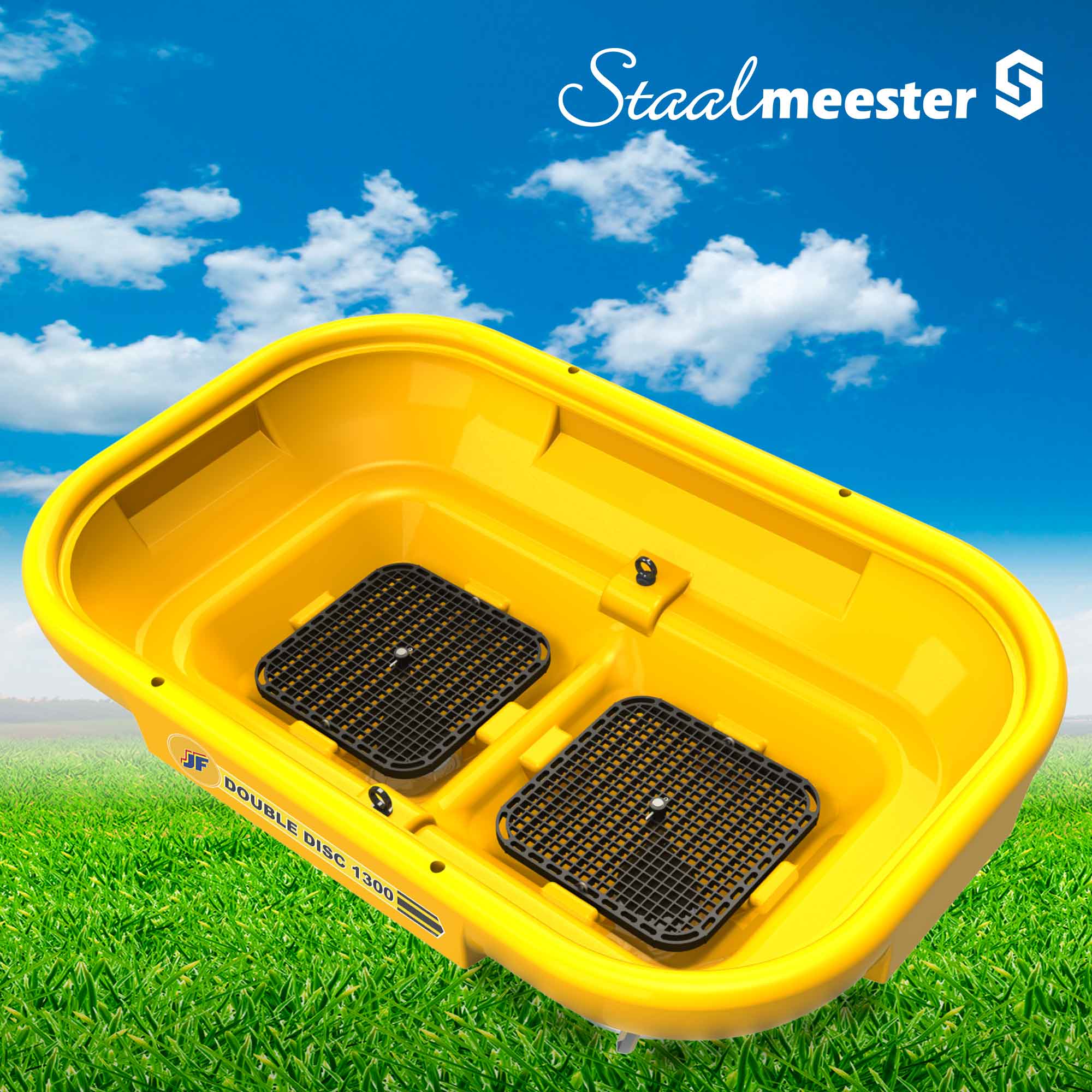

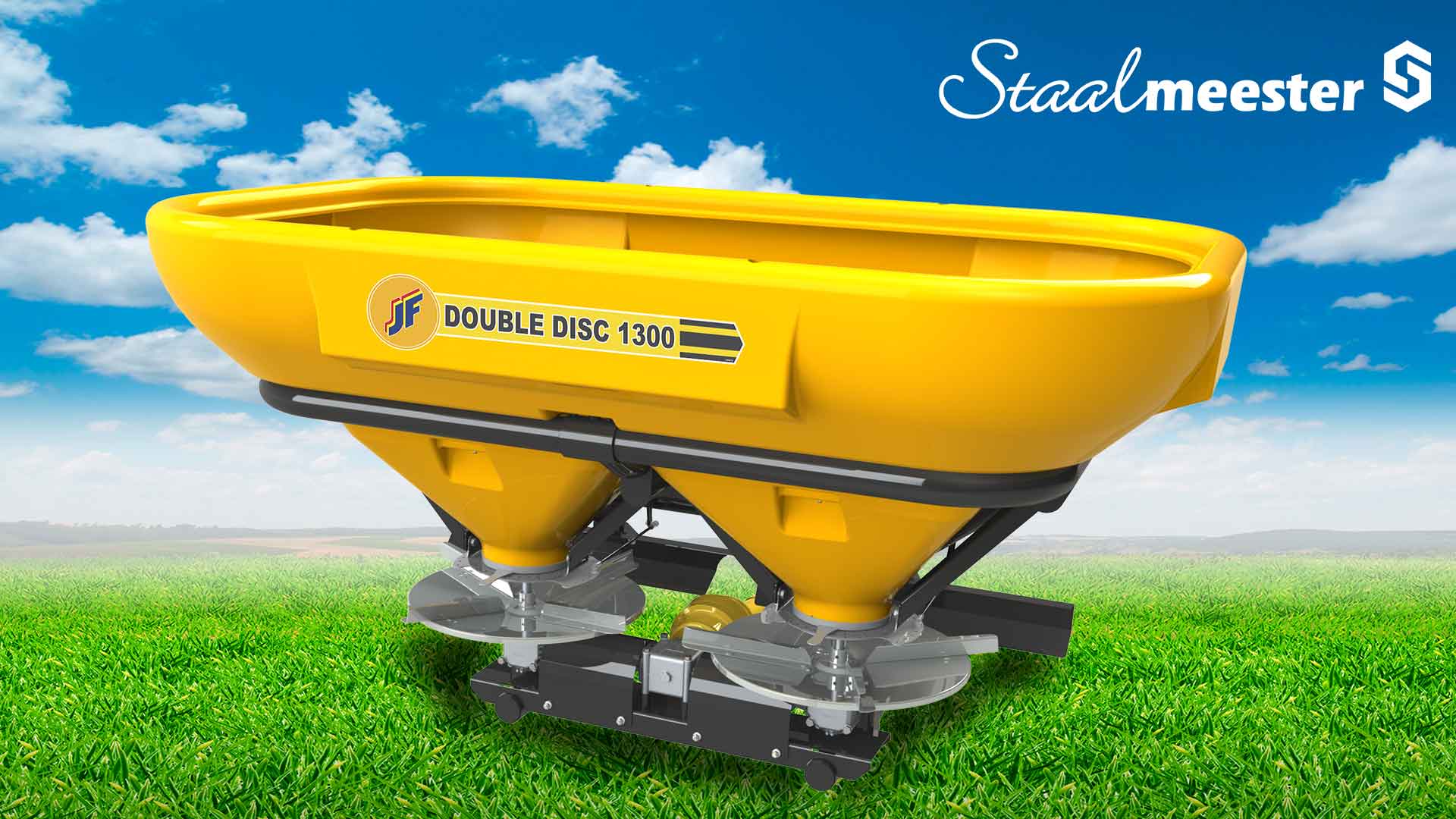

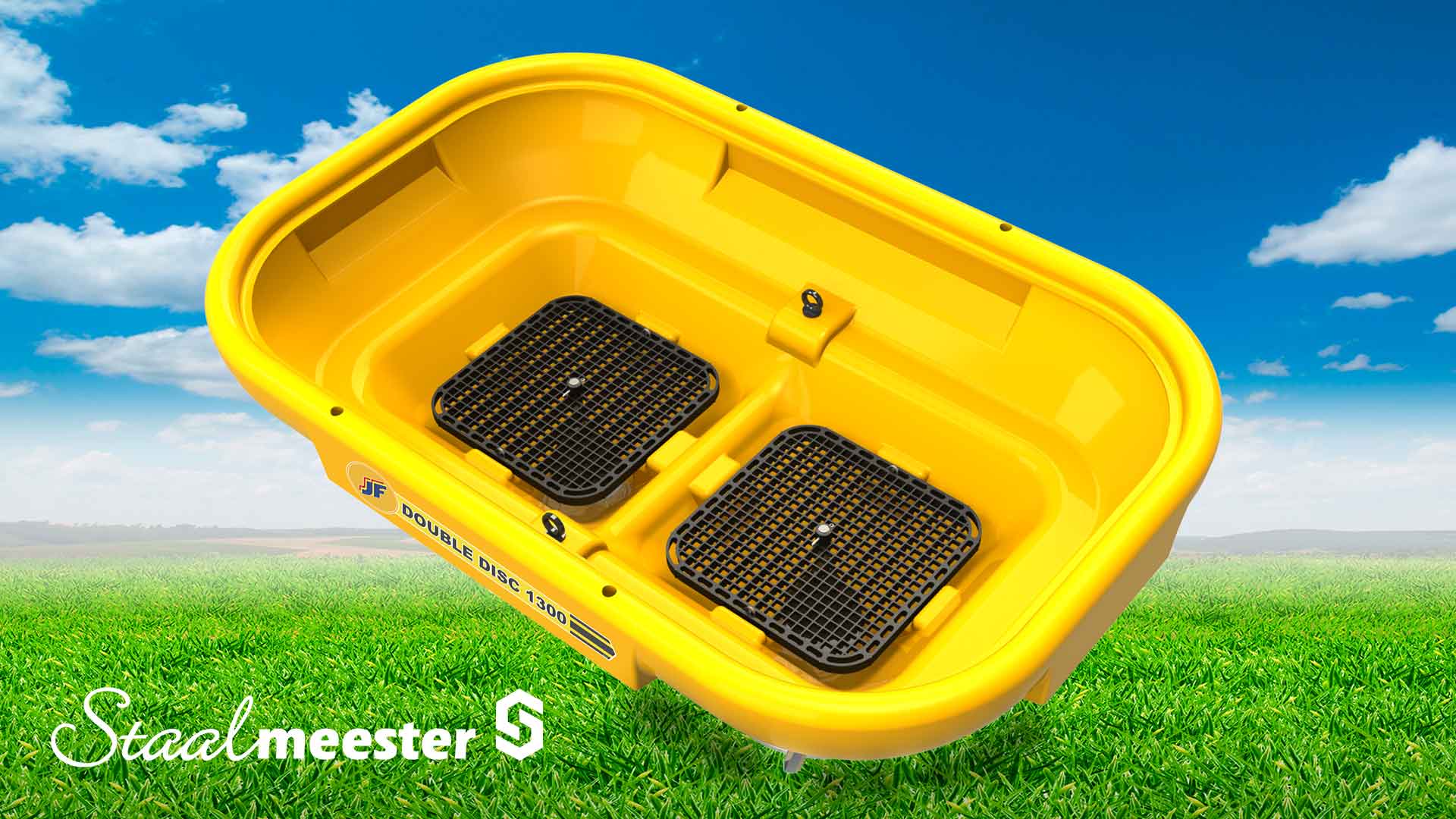

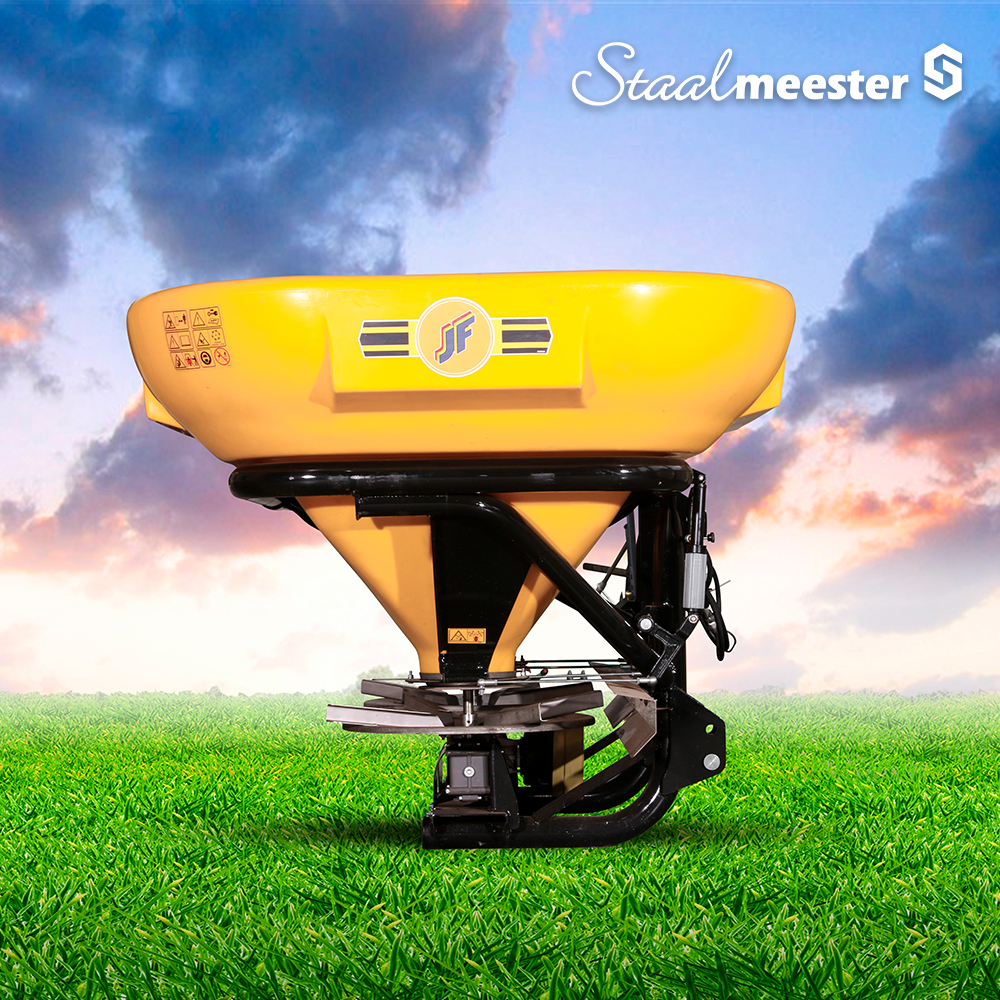

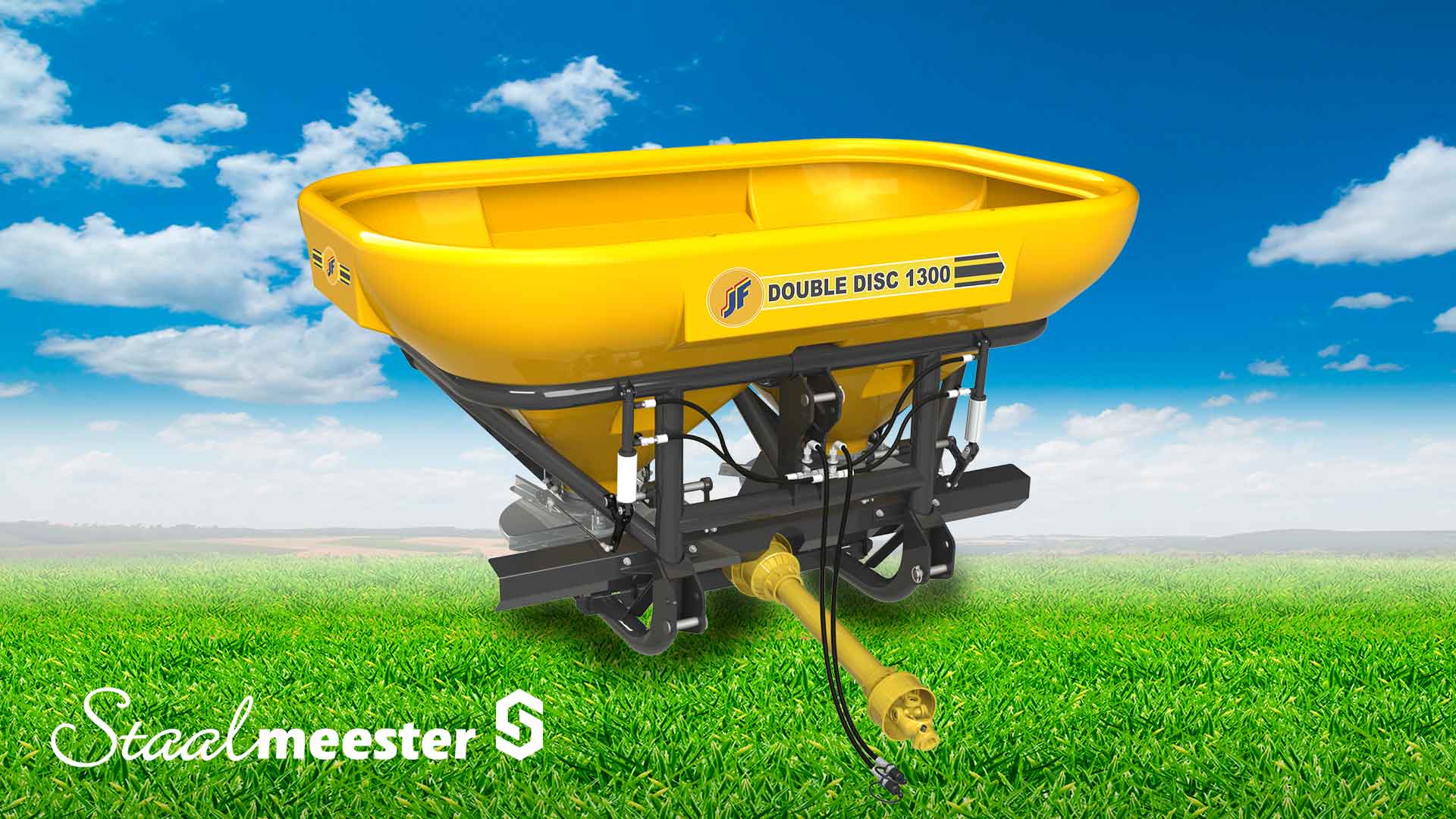

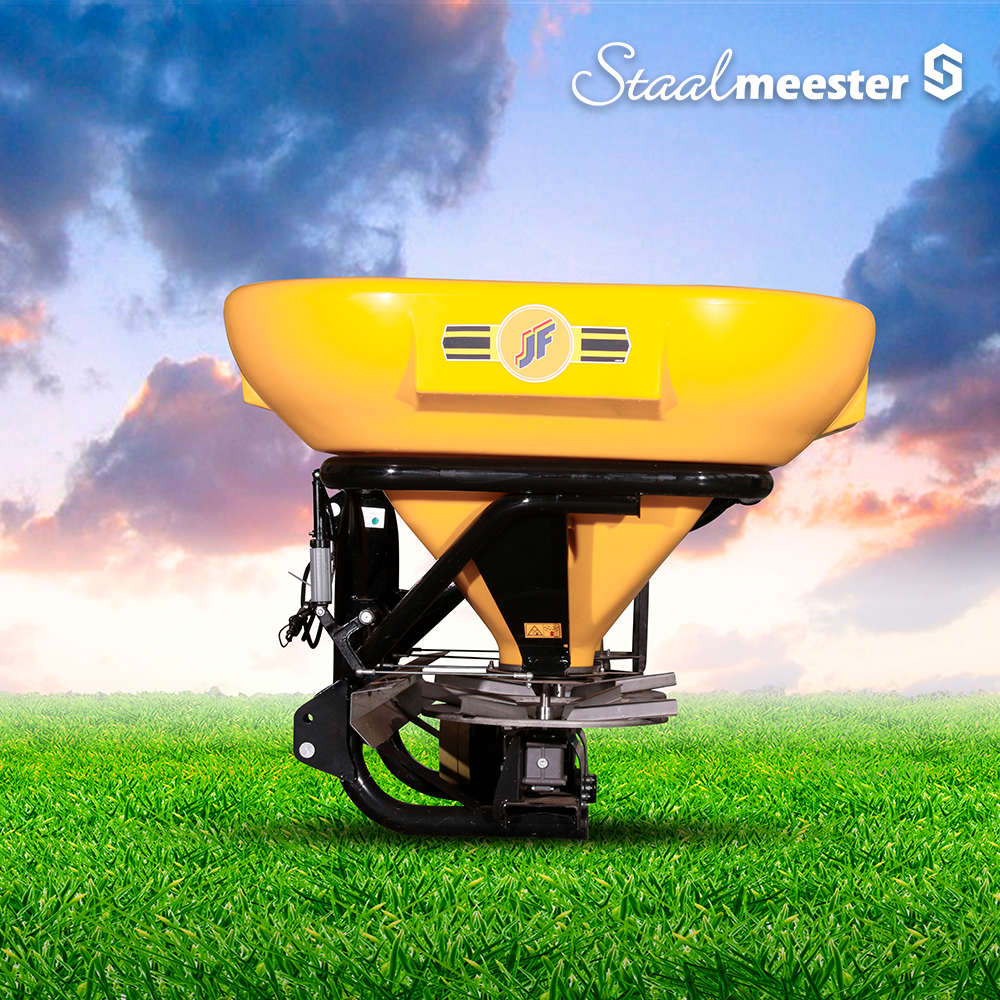

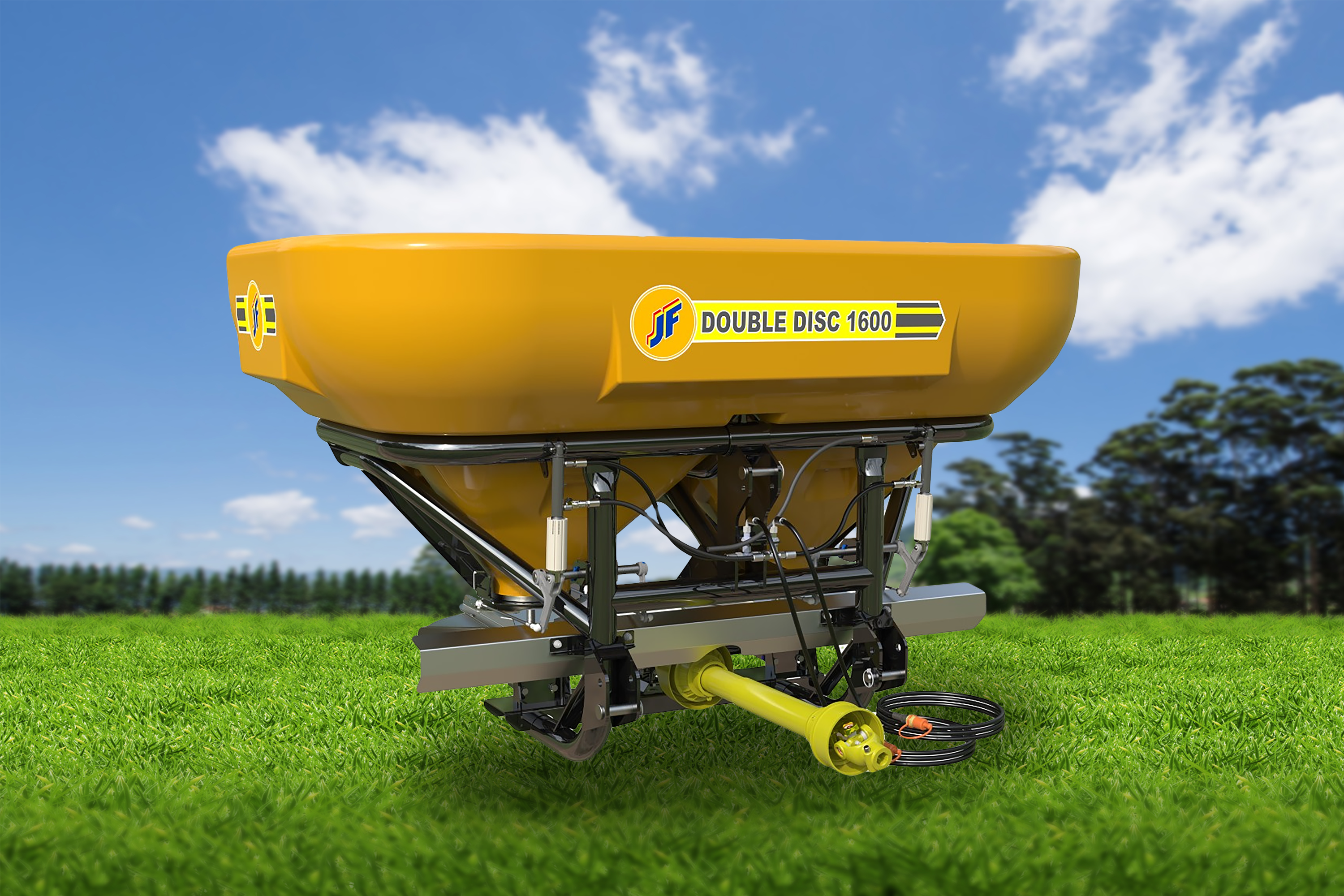

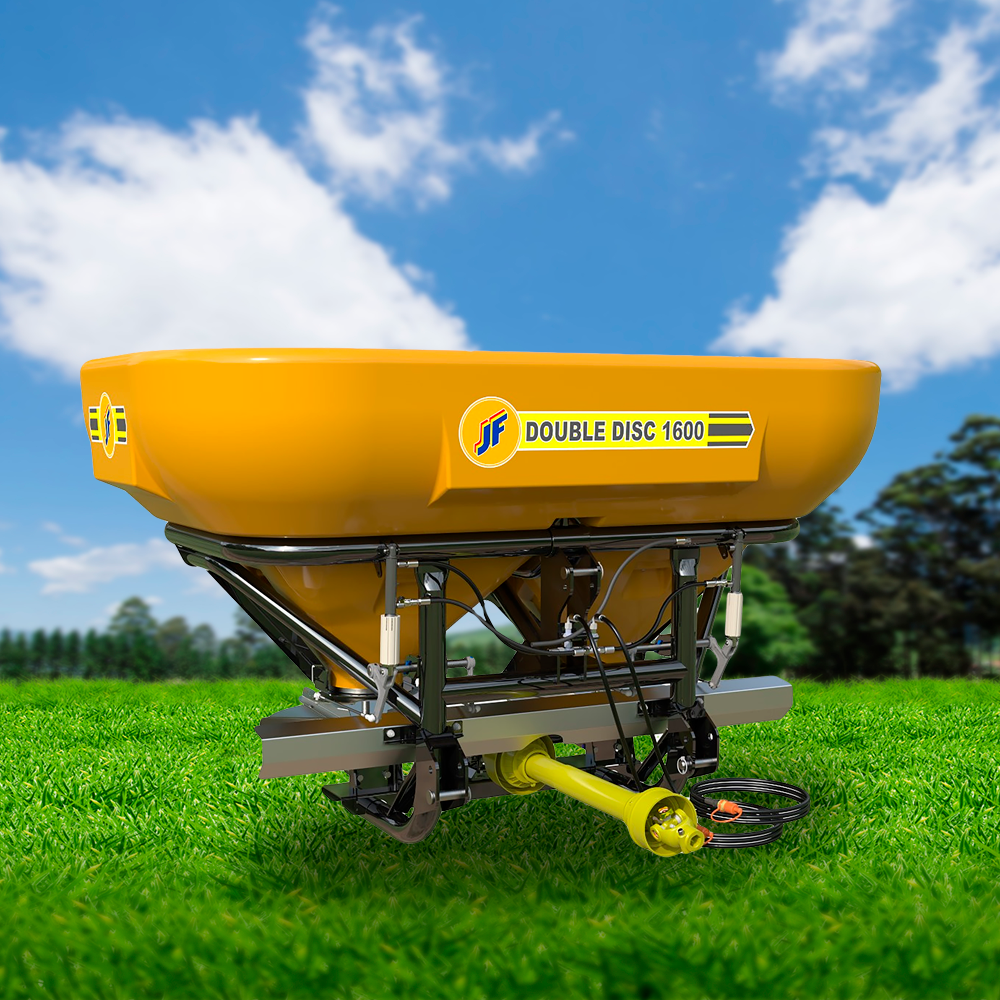

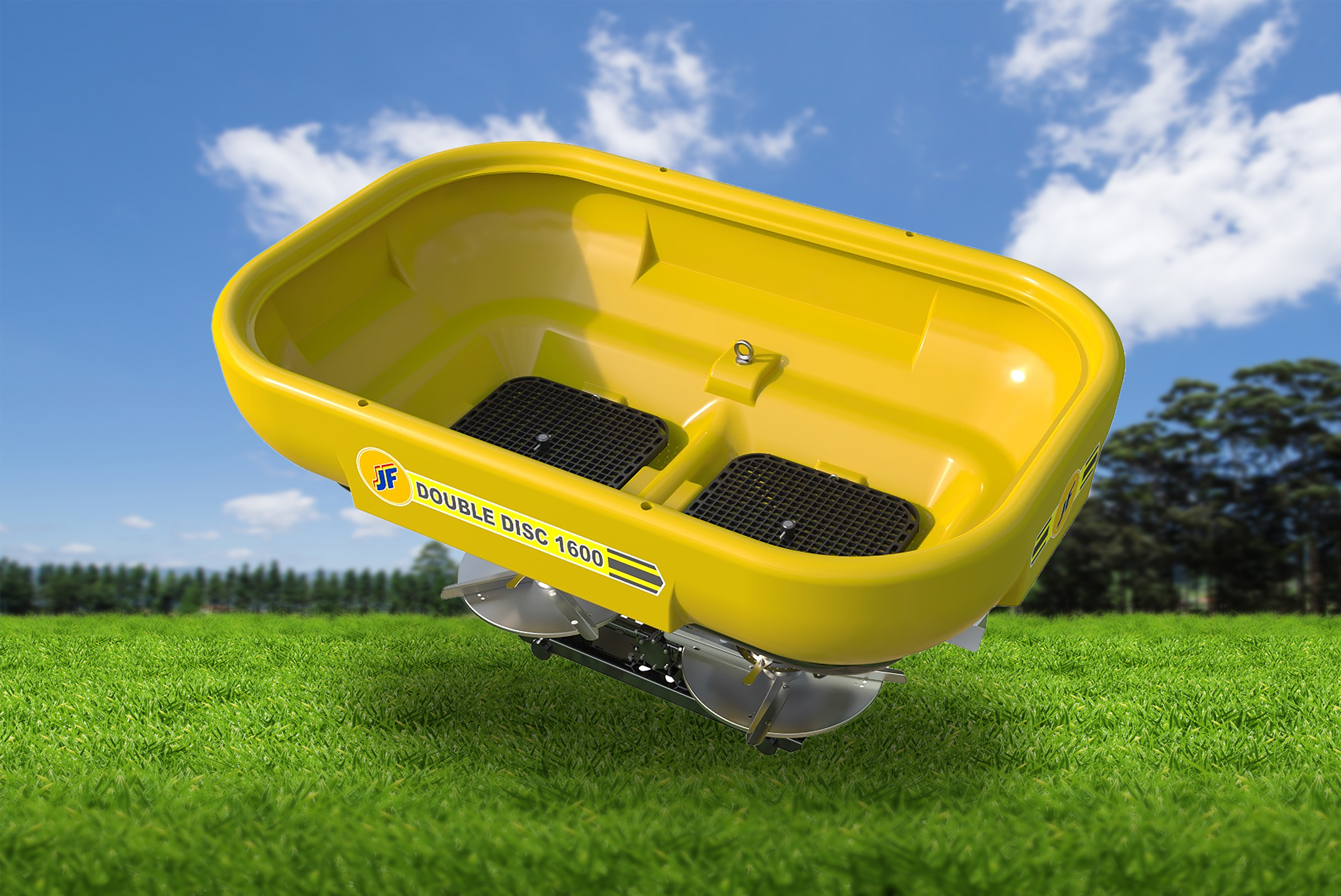

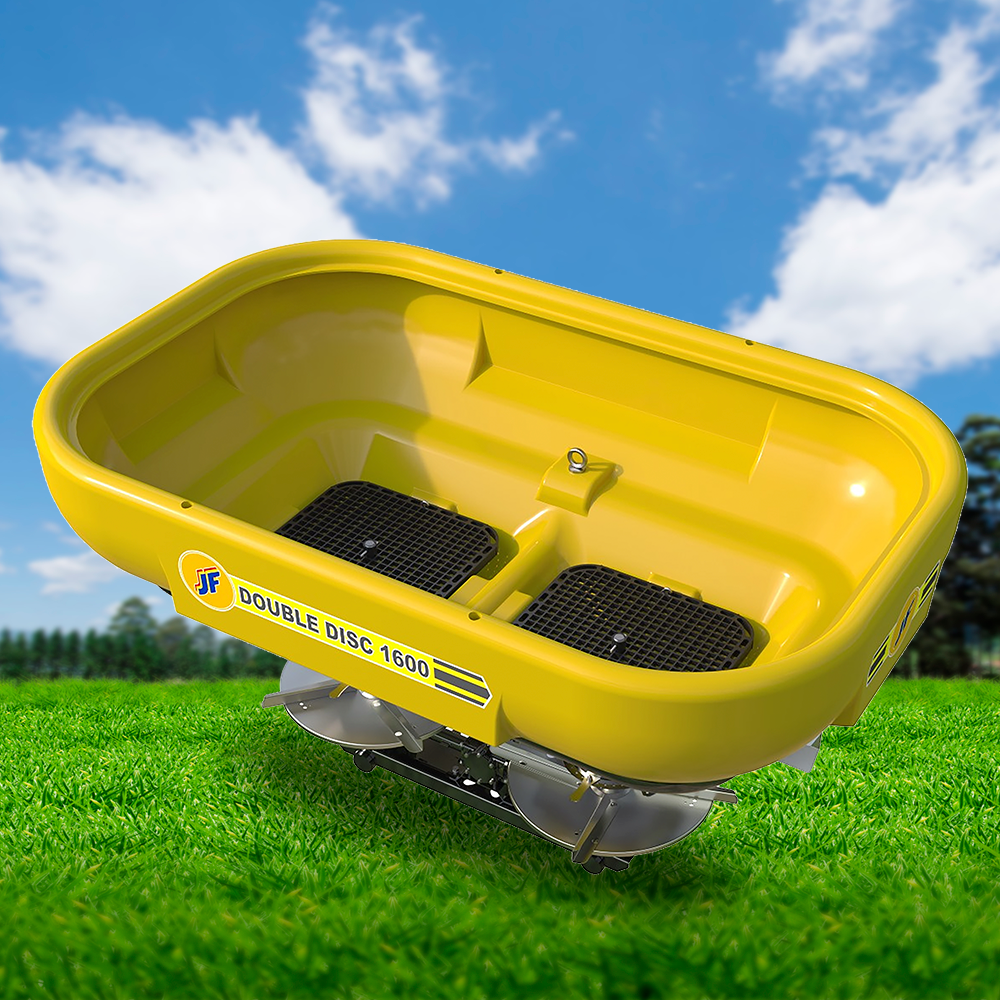

The JF Double Disc 1300 and 1600 are versatile spreaders designed for fertilizers, seeds, and lime. These models offer an economical solution for broadcasting material with a spreading range of 16 to 36 metres. The adjustable paddle angle ensures a more uniform distribution, while the independent distribution system (with the option to operate on a single disc) makes it easy to spread accurately along field edges and in specific areas.

With capacities of 1300 litres and 1600 litres respectively, both models feature quick speed adjustment via a limiting auger and a clear scale indicator on the cylinder. The JF Double Disc range is lightweight with low power consumption, while maintaining excellent efficiency and precision in the uniform distribution of granular fertilizer, lime, and seeds.

Product Overview

• Gallery
• Specifications

Technical features	JF Double Disc 1300	JF Double Disc 1600
Power source	Tractor PTO	Tractor PTO
Height	1300MM	1386MM
Load capacity	1300 ℓ	1600 ℓ
Length	1500mm	1500mm
Width	2350mm	2350mm
Working width (range)	16 to 36 meters	16 to 36 meters
Required power at PTO	30 cv	30 cv
Required revolution at PTO	540 RPM	540 RPM
Weight	274 kg	274 kg
Capacidade de levante do tractor	1800 kg	1800 kg
