Staalmeester | 6116 18 Hammer Mill

Staalmeester | 6116 18 Hammer Mill

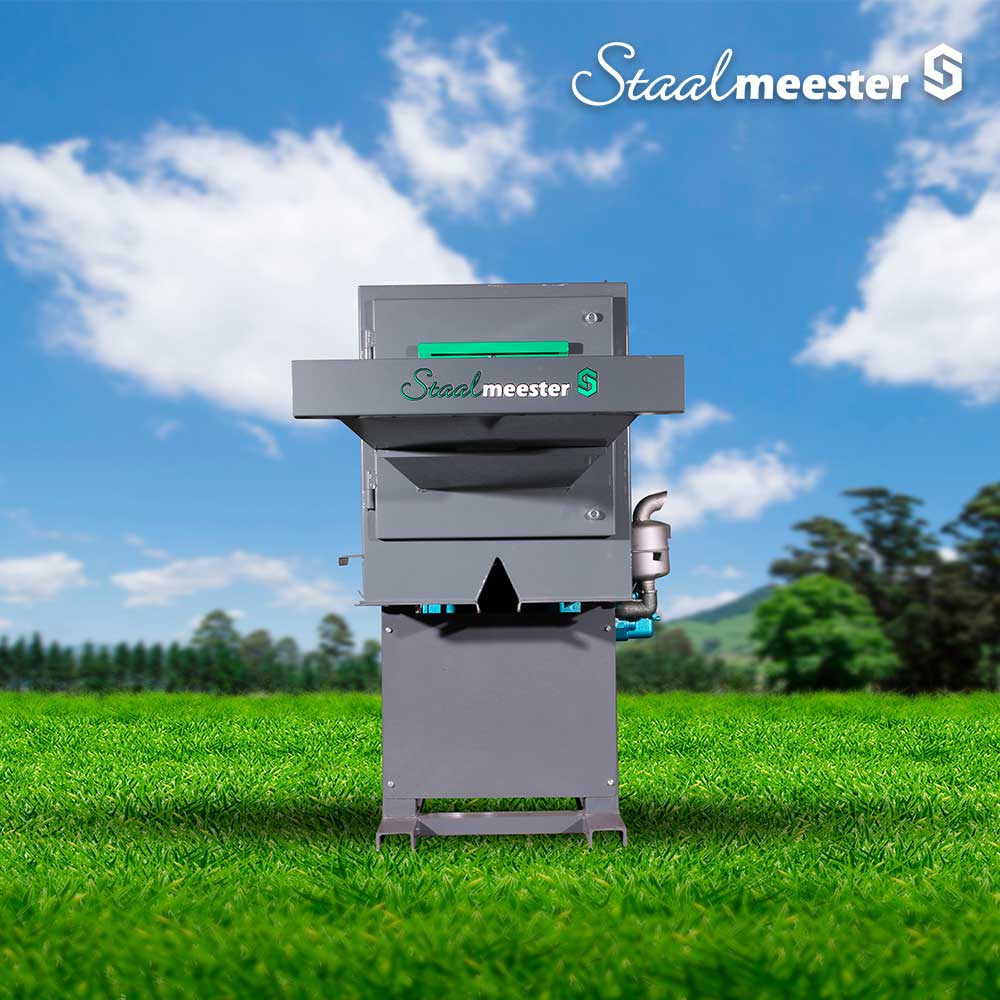

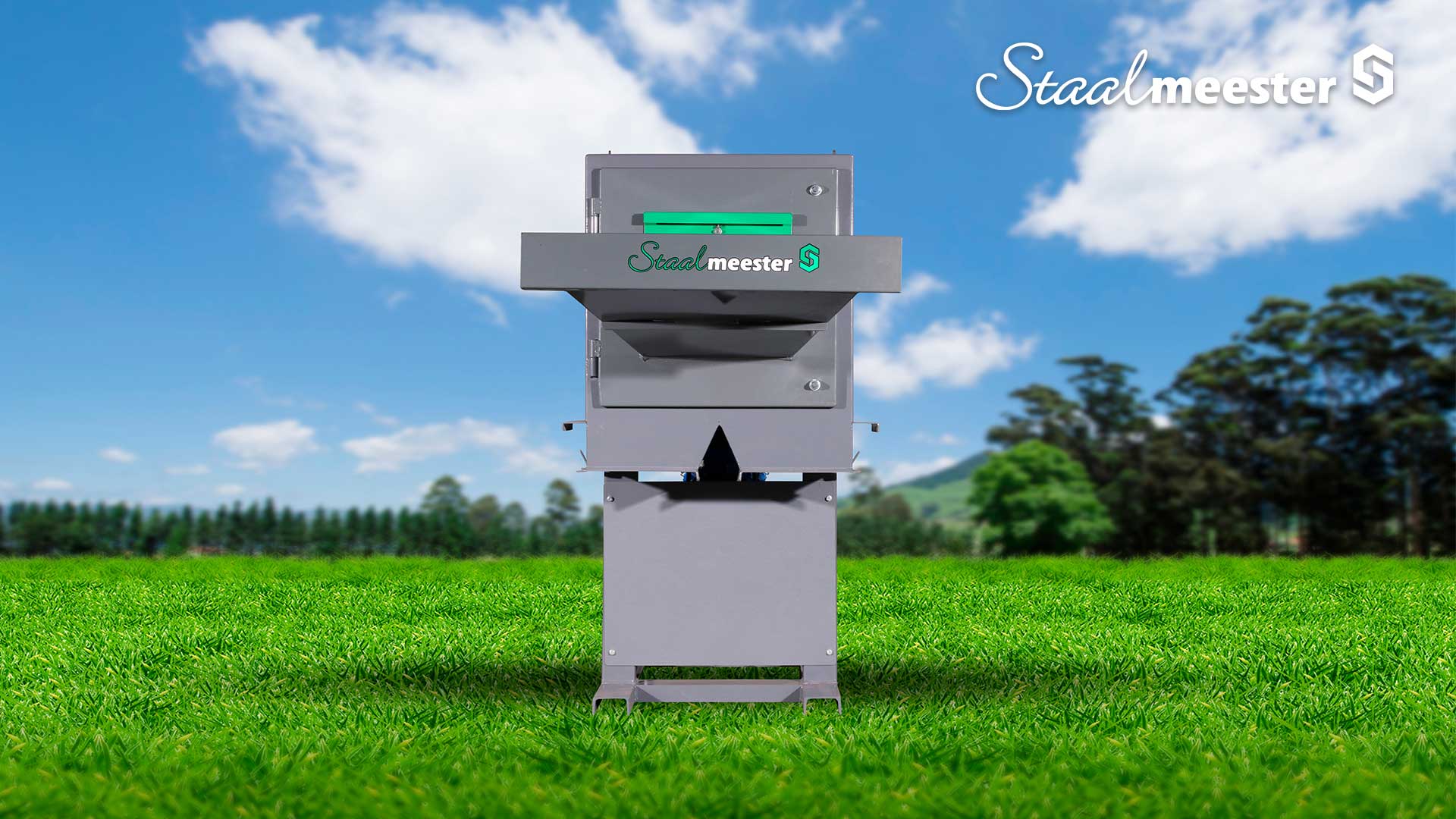

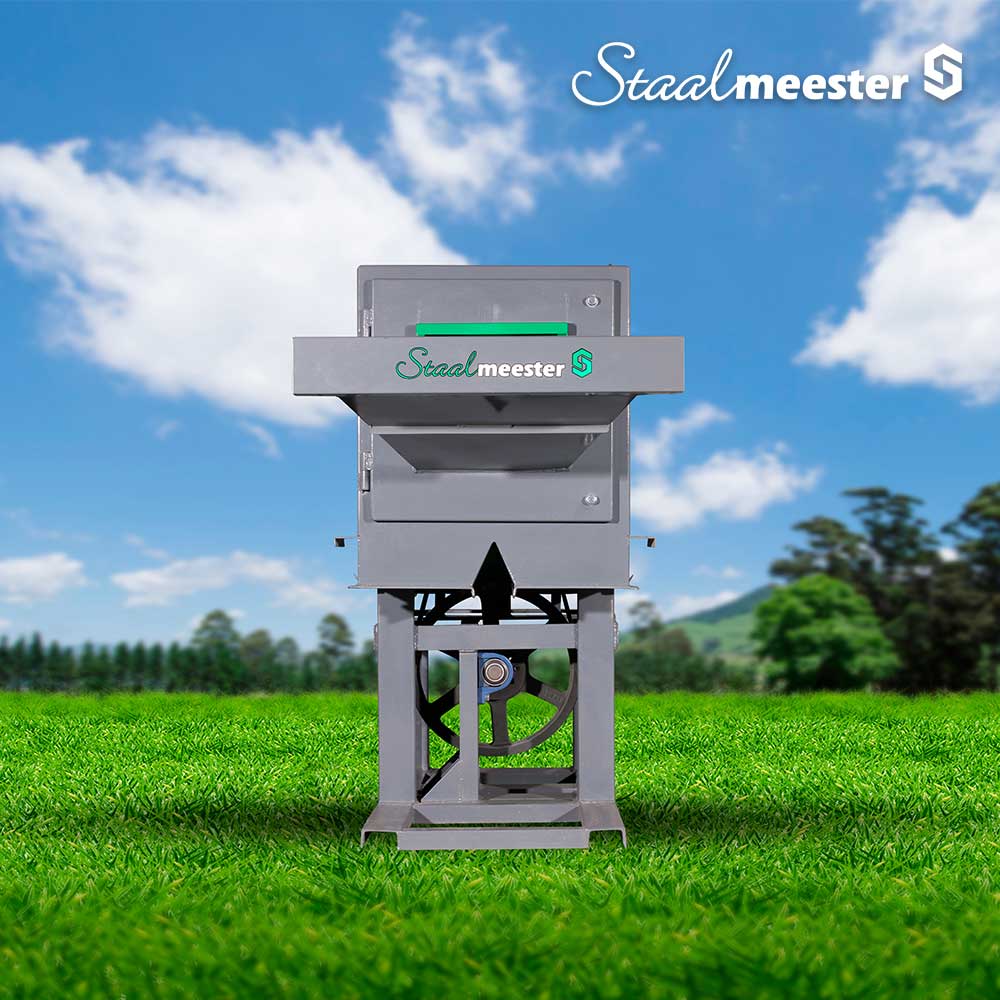

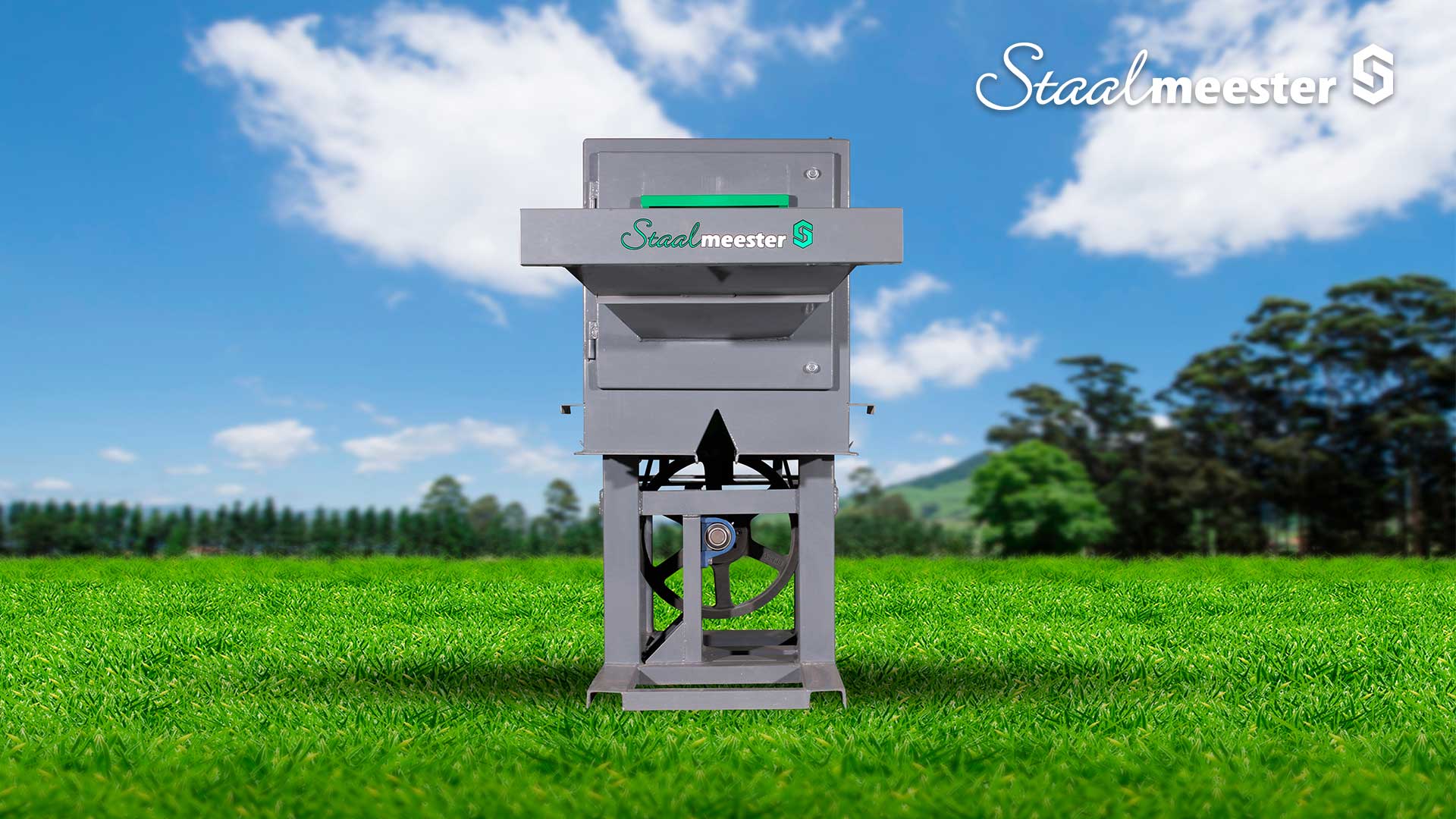

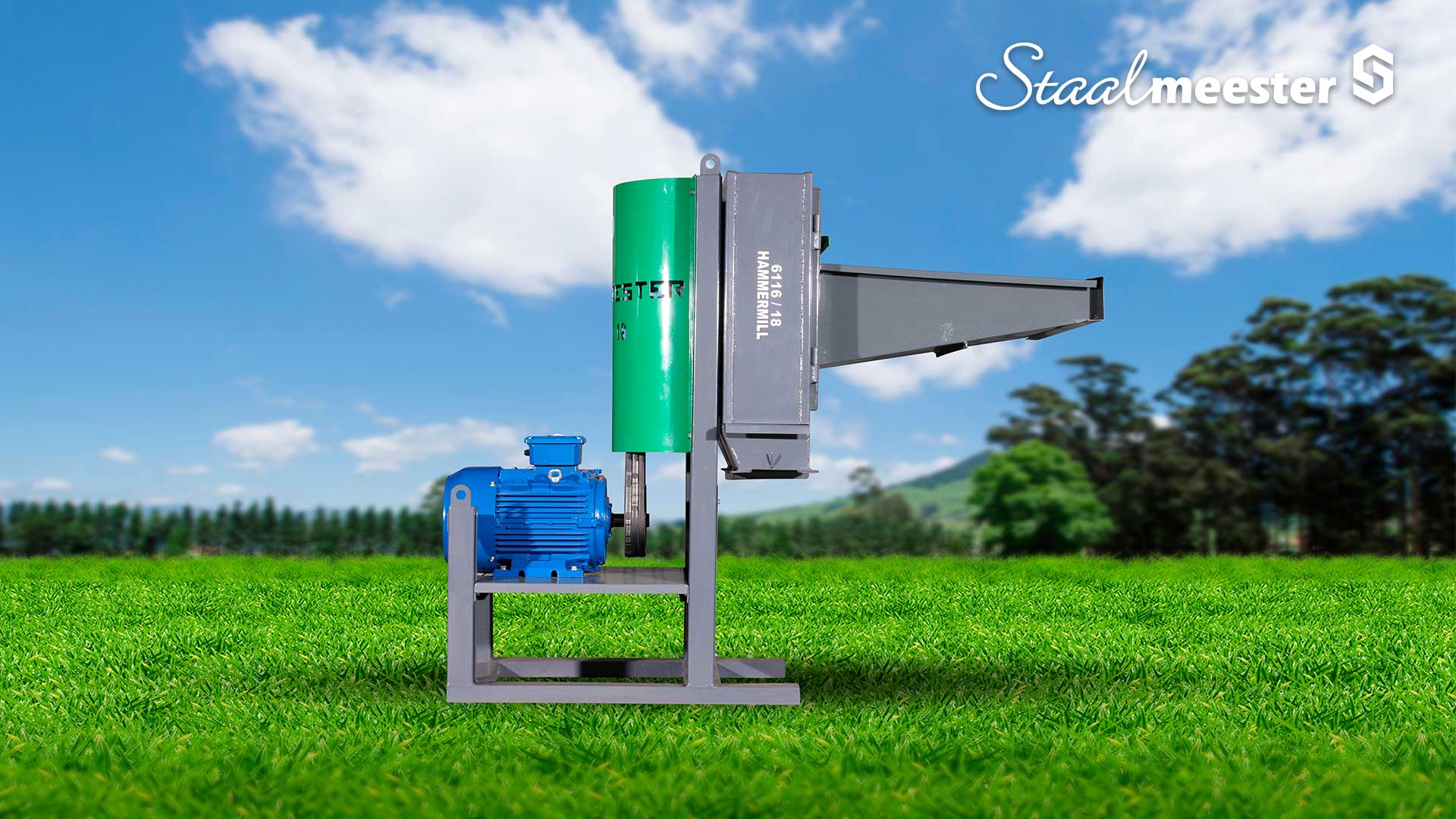

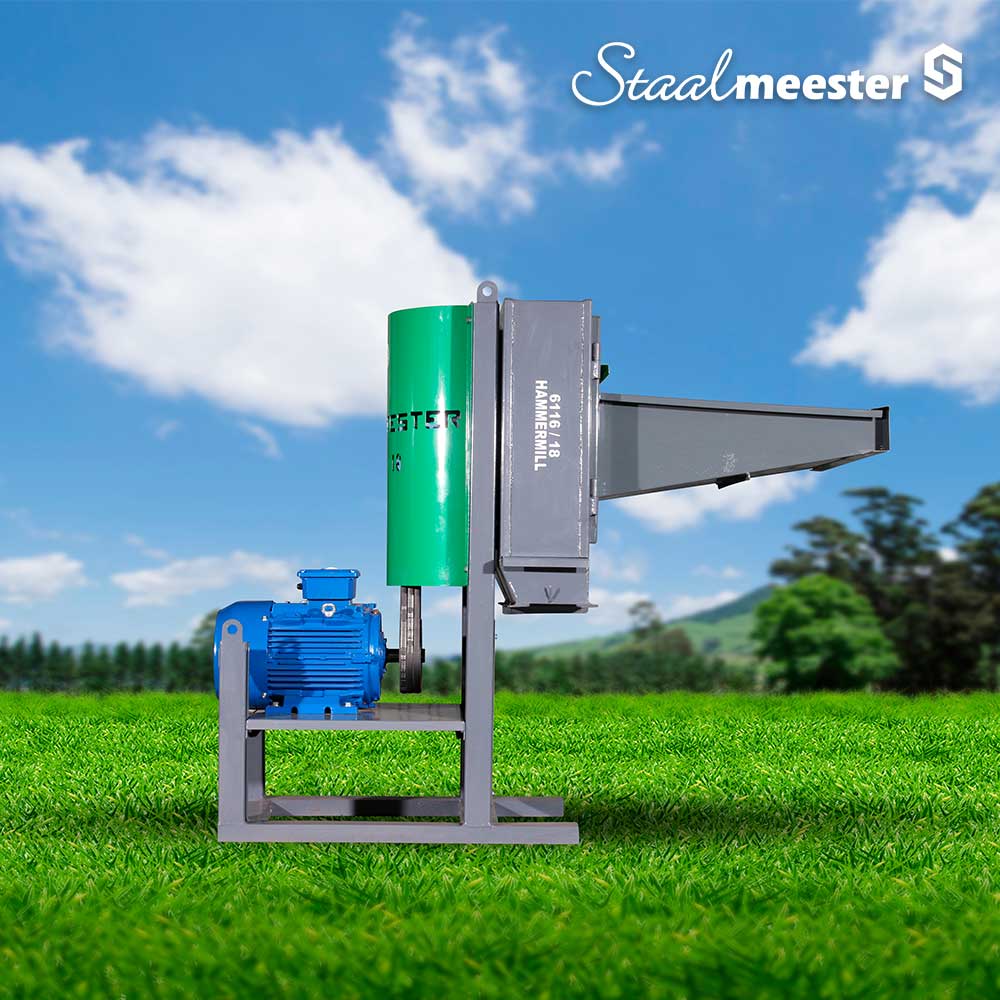

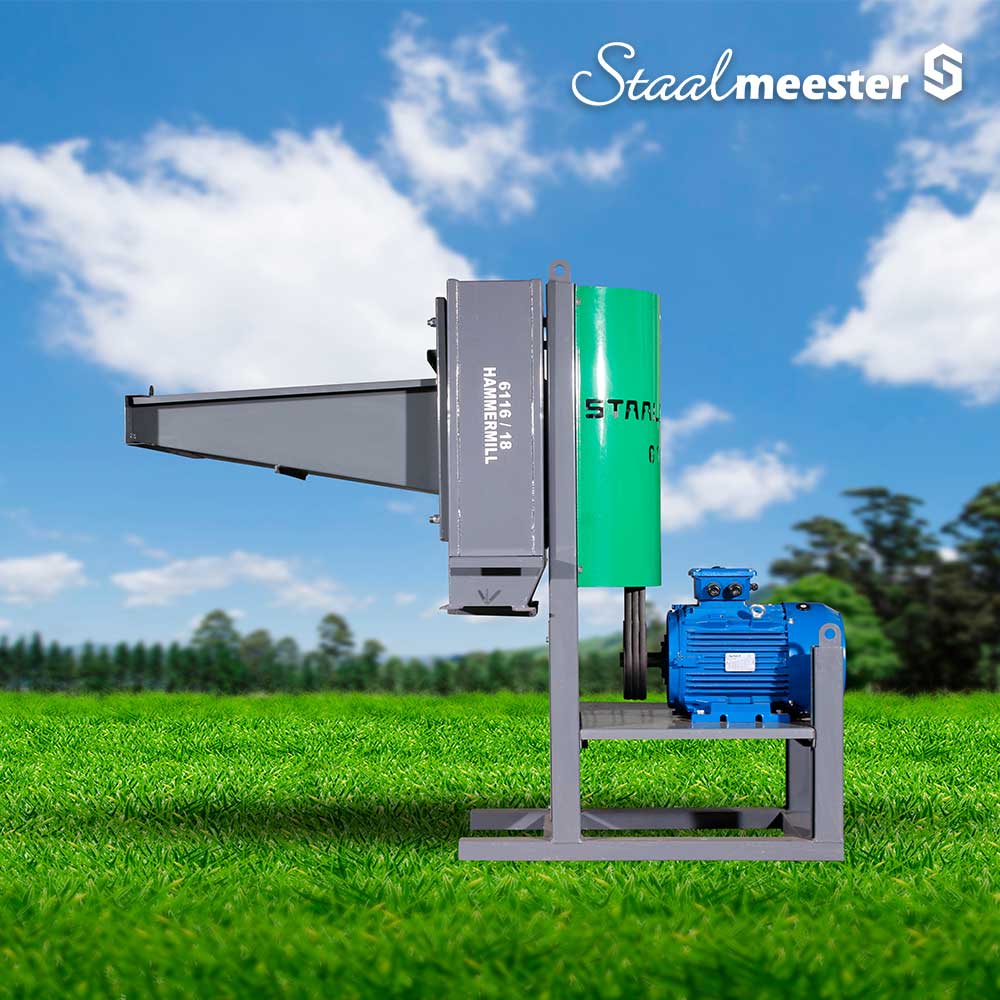

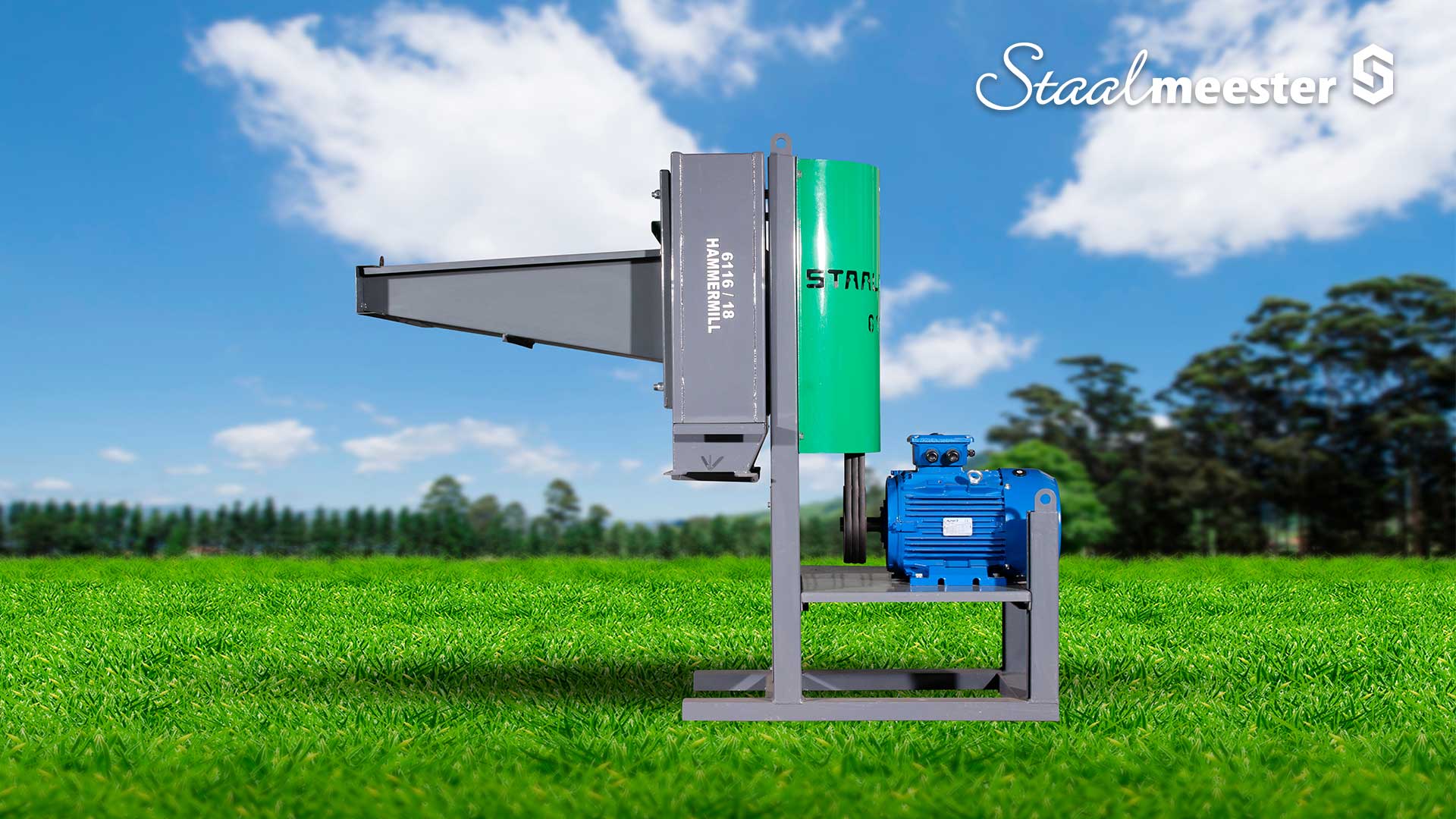

The Staalmeester 6116 18 hammer mill is dust free and has an adjustable closing plate and a large sturdy in feed tray. It outperforms any opposition in its class. The 360 °milling area makes the 6116/18 run smoothly and effortlessly using 100% of its capacity. The dynamically balanced rotor is fitted with 8 heat treated hammers and 4 hardened rods ensuring superior quality.

Hammermill Test Results Hammermill Brochure

Product Overview

video thumb
video thumb
Rotor Ø 520 mm
Rotor Shaft 50 mm
Housing Width 300 mm
Housing Ø 710 mm
Milling Sieve 360°
Motor Speed 2900 r/pm
Rotor Speed 3200 r/pm
kW Required 11 - 22 kW
Effective Screen area 3760 cm²
Weight with motor 380 kg
Weight without motor 267 kg

Additional Info:

The 6116 has a unique design. The two bearings are designed on the outside of the rotor, this make for an easy bearing replacement and increases the lifespan of the bearings. The 6116 is designed with 3 v-belts and nickel chrome steel shaft measuring 50 OD, the frame work is manufactured out of 4 mm steel. This makes for a very robust and powerful hammer mill.

Power options available :

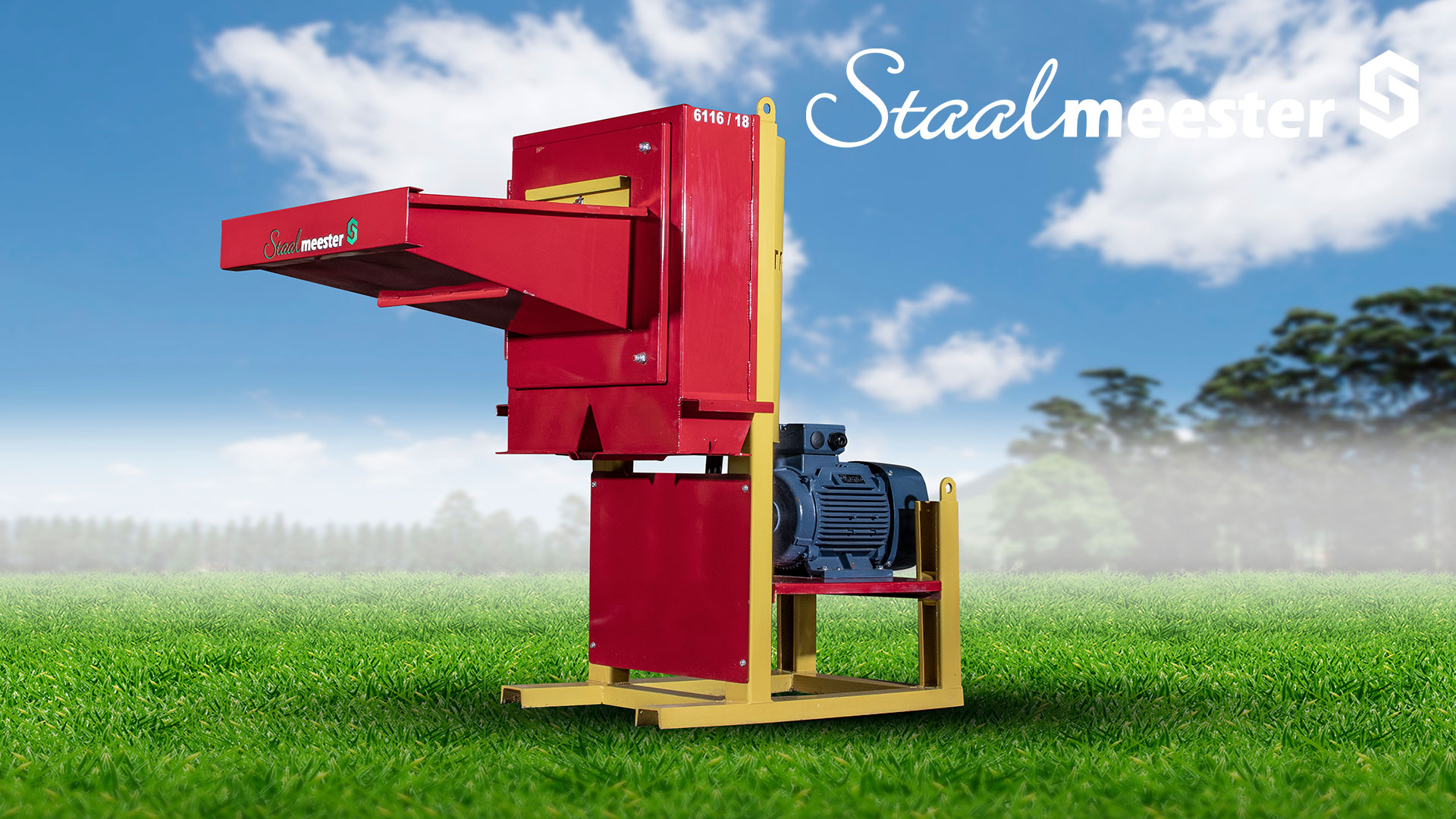

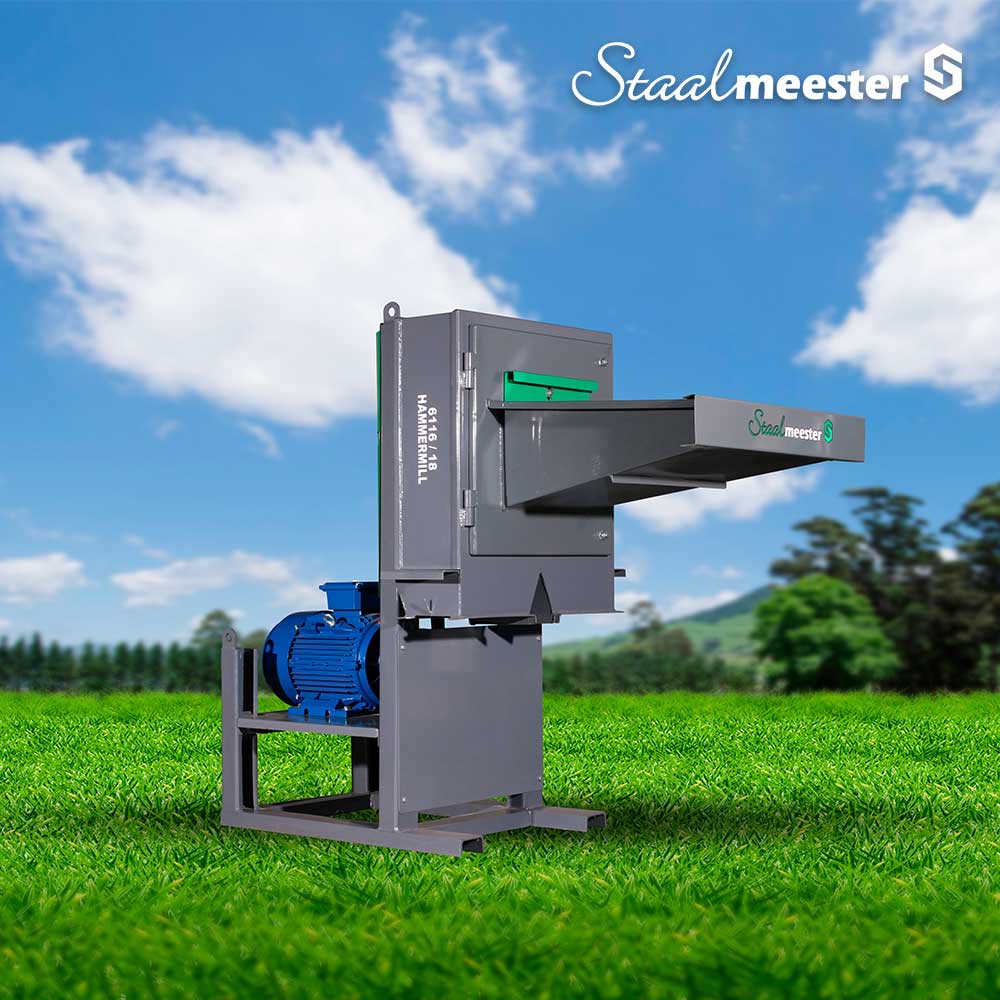

  • Electric 15 kW

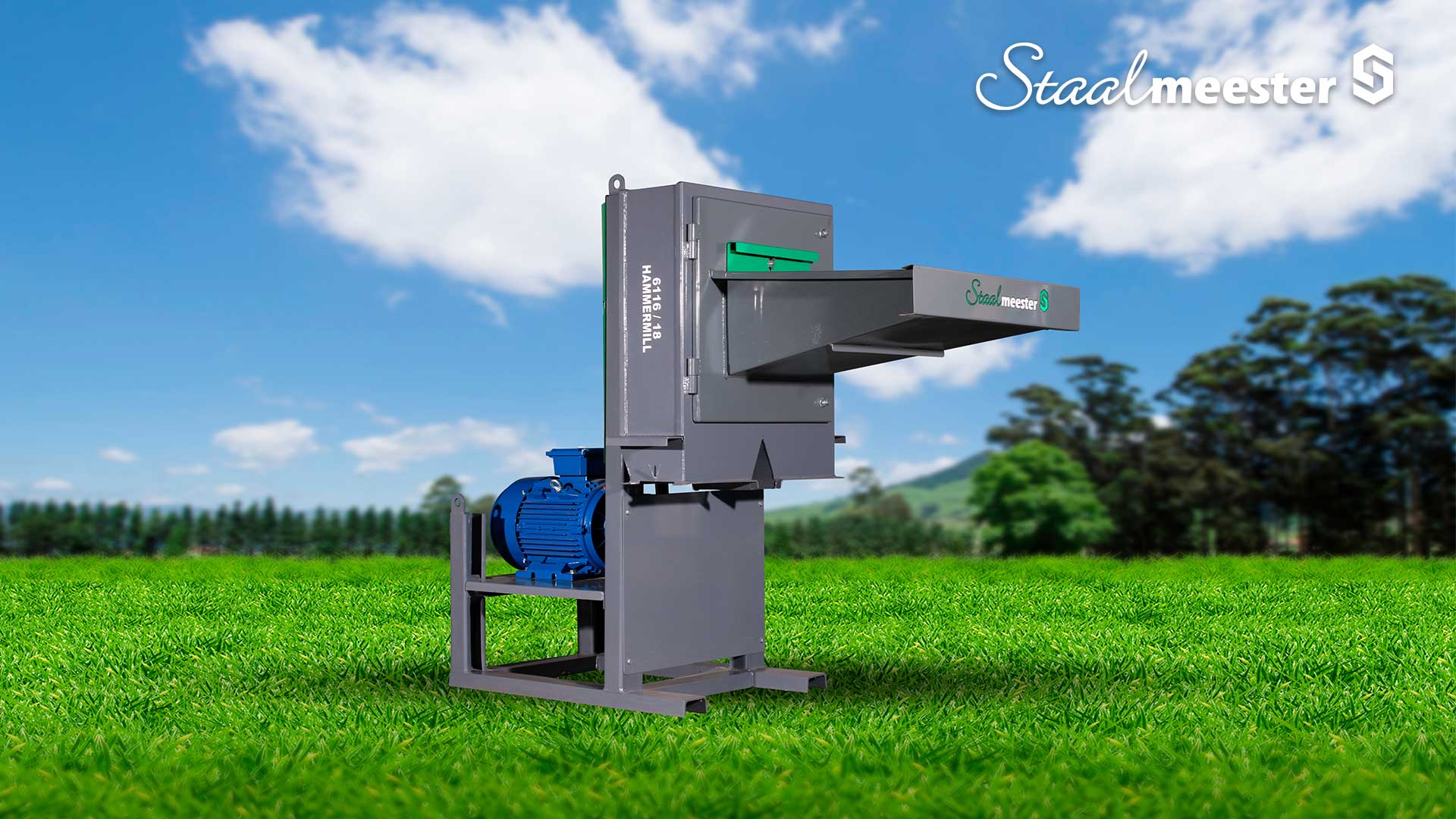

  • Electric 11 kW
  • Electric 18.5 kW

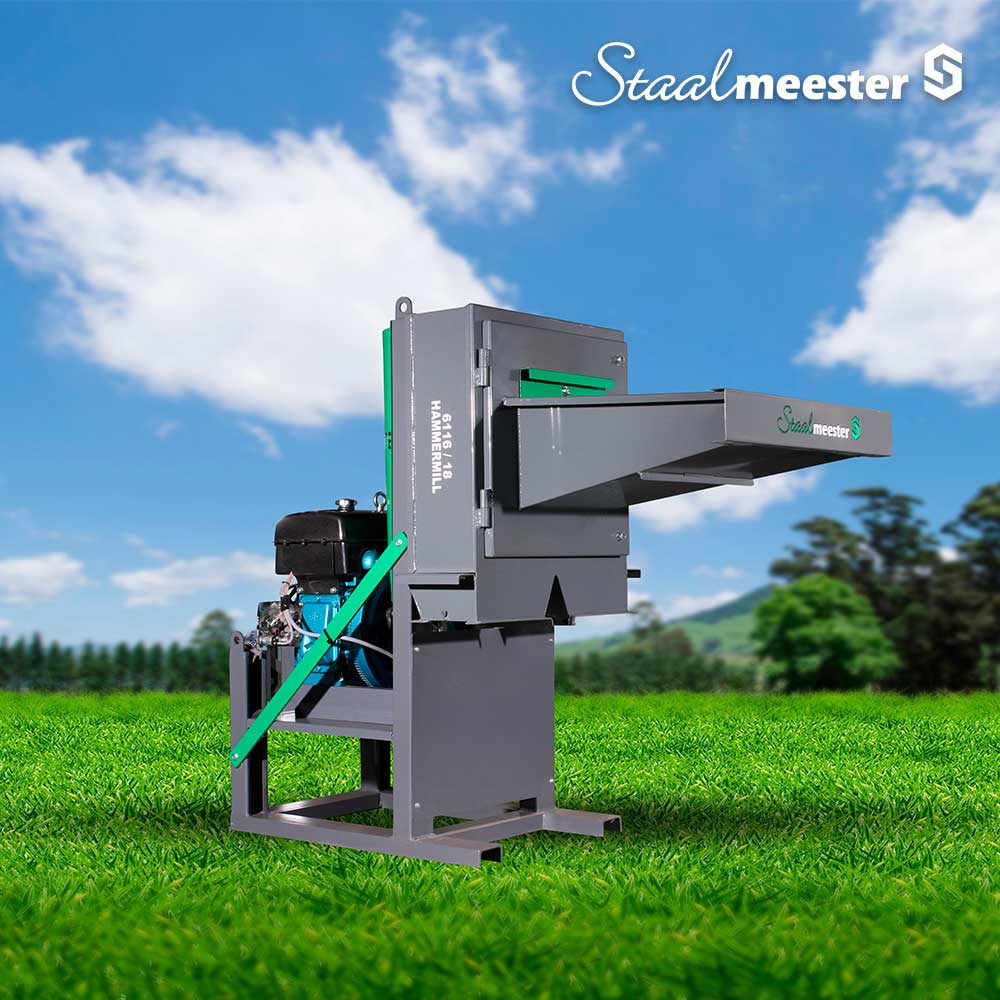

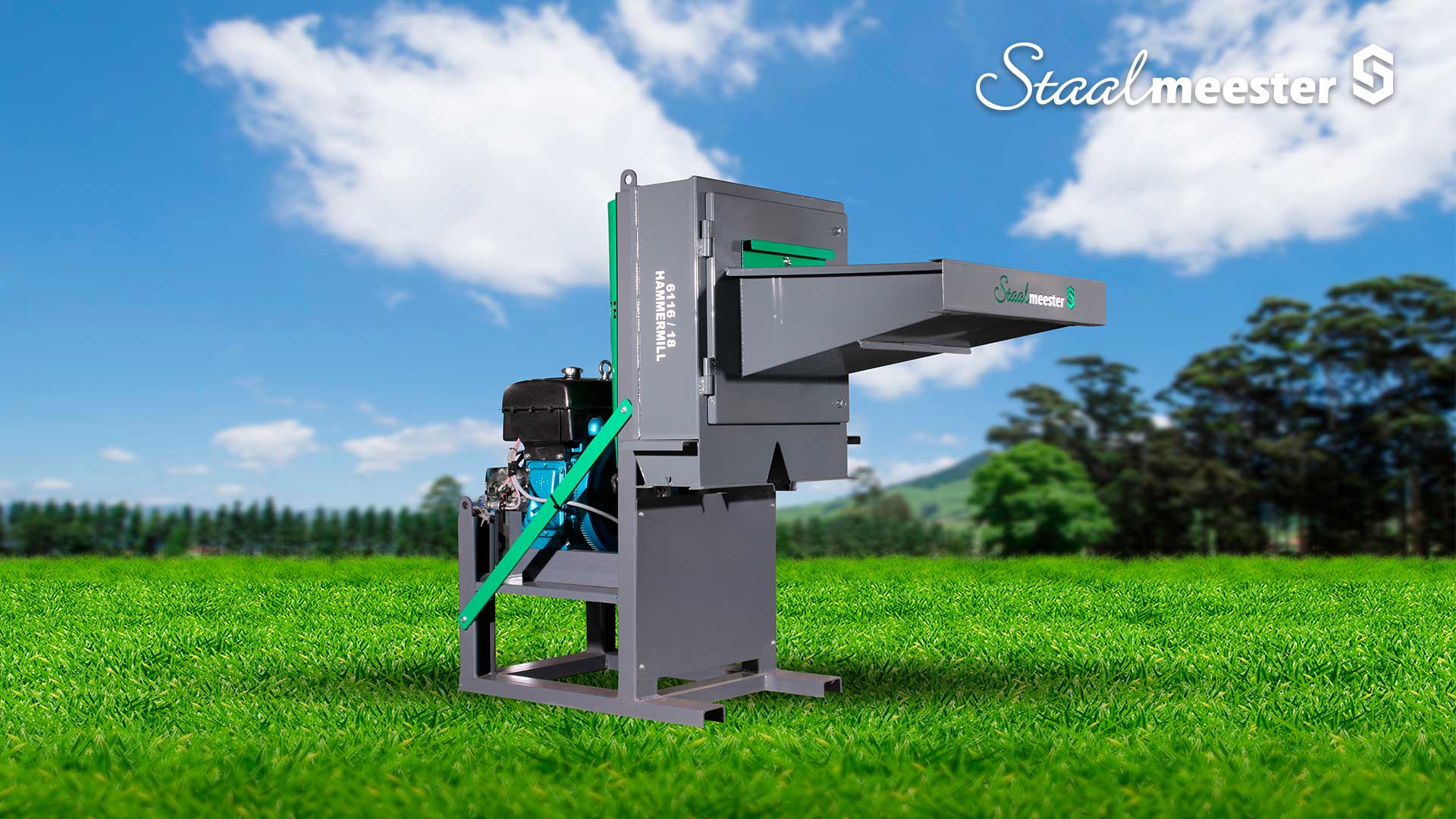

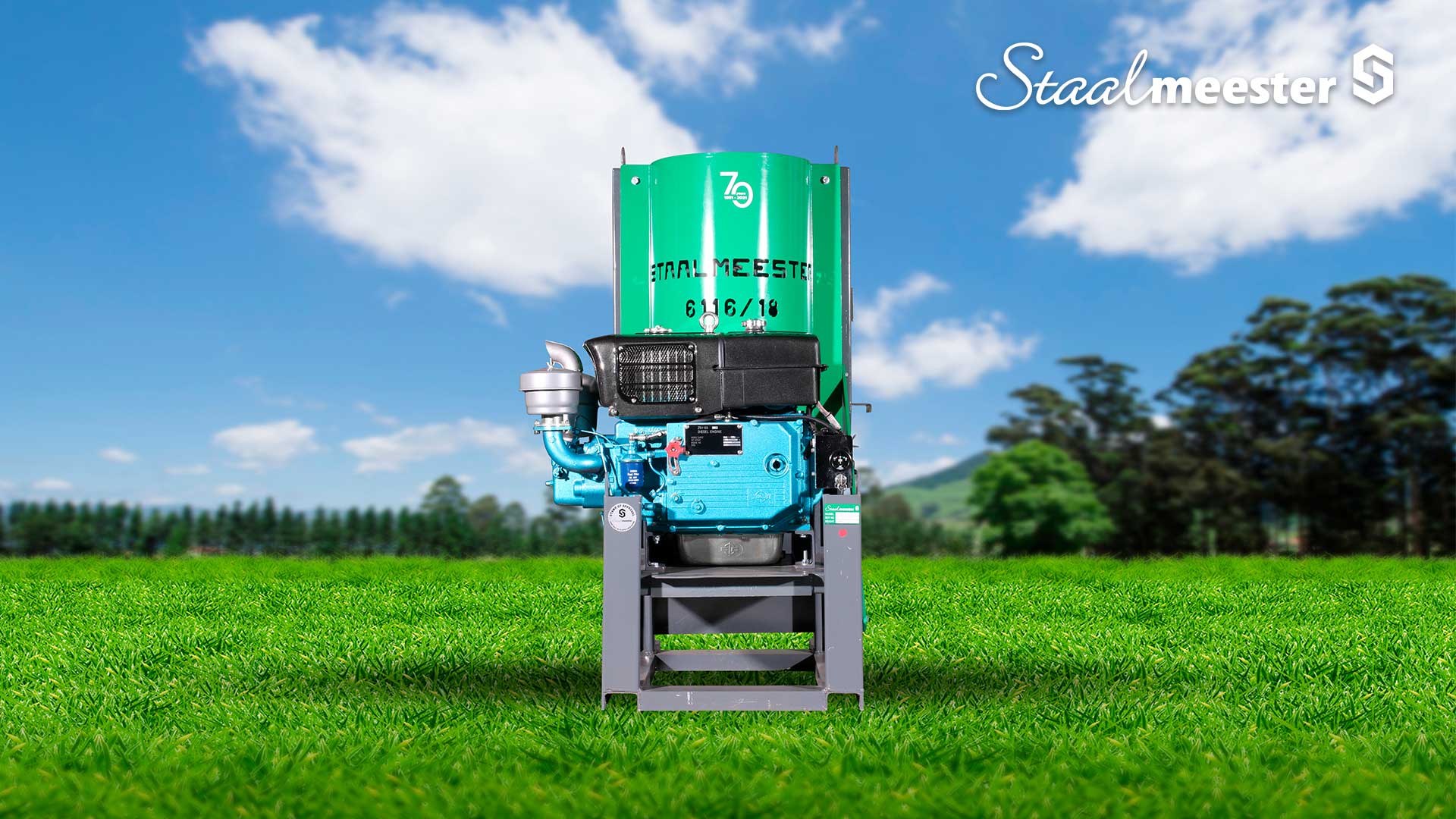

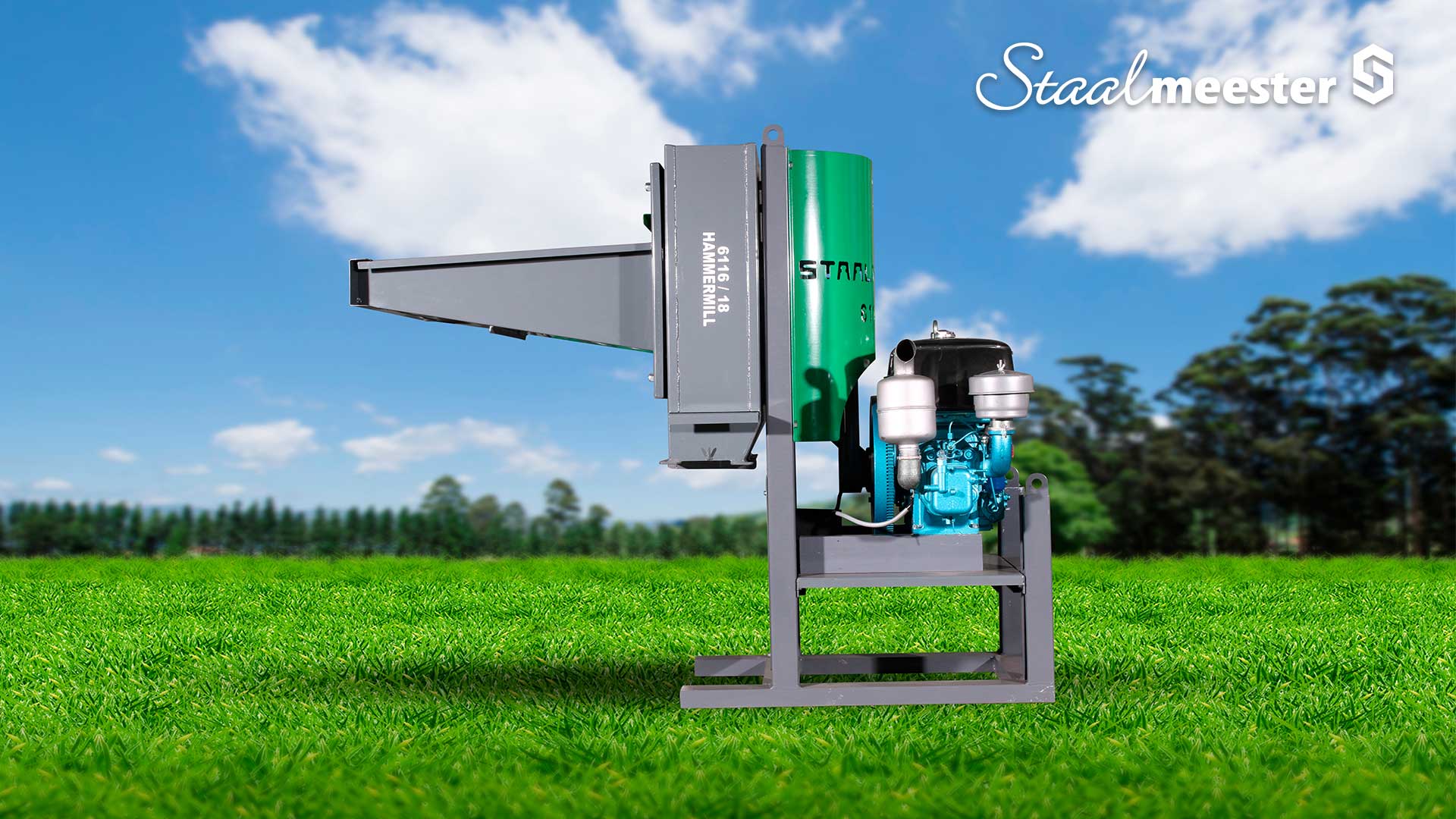

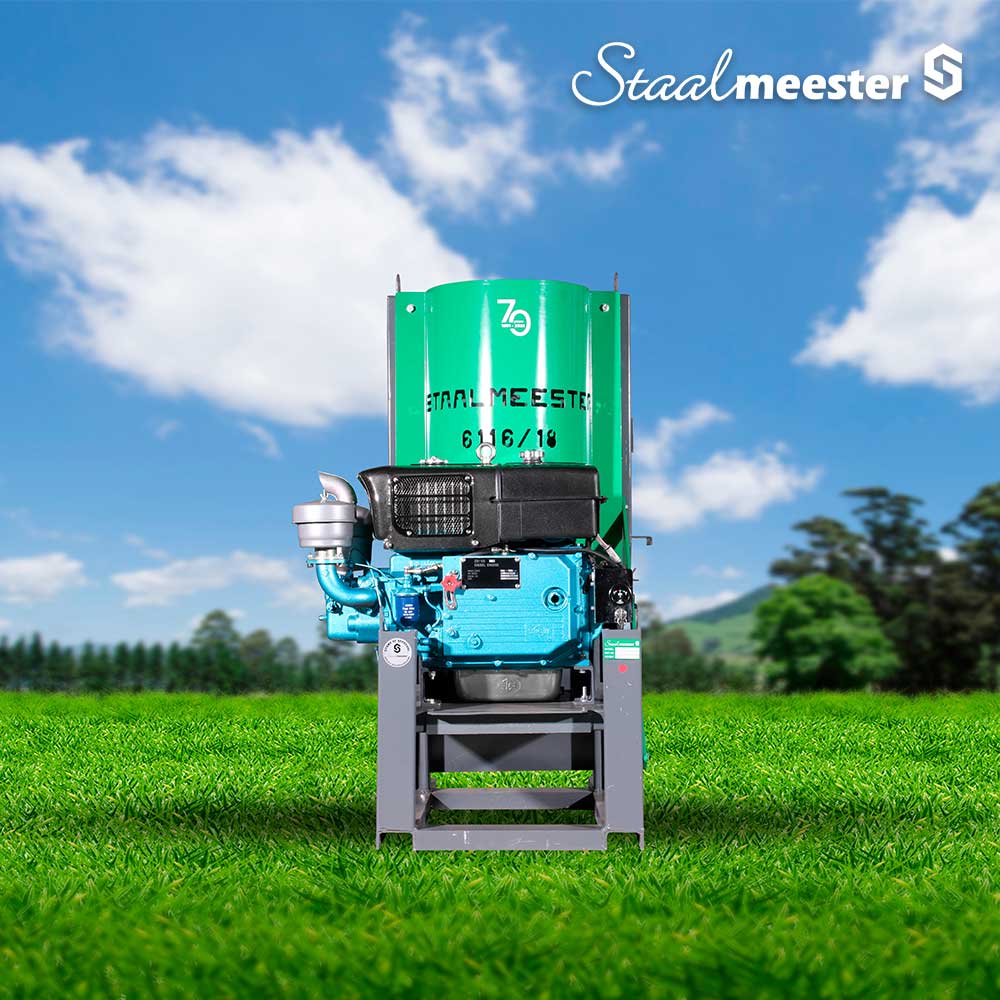

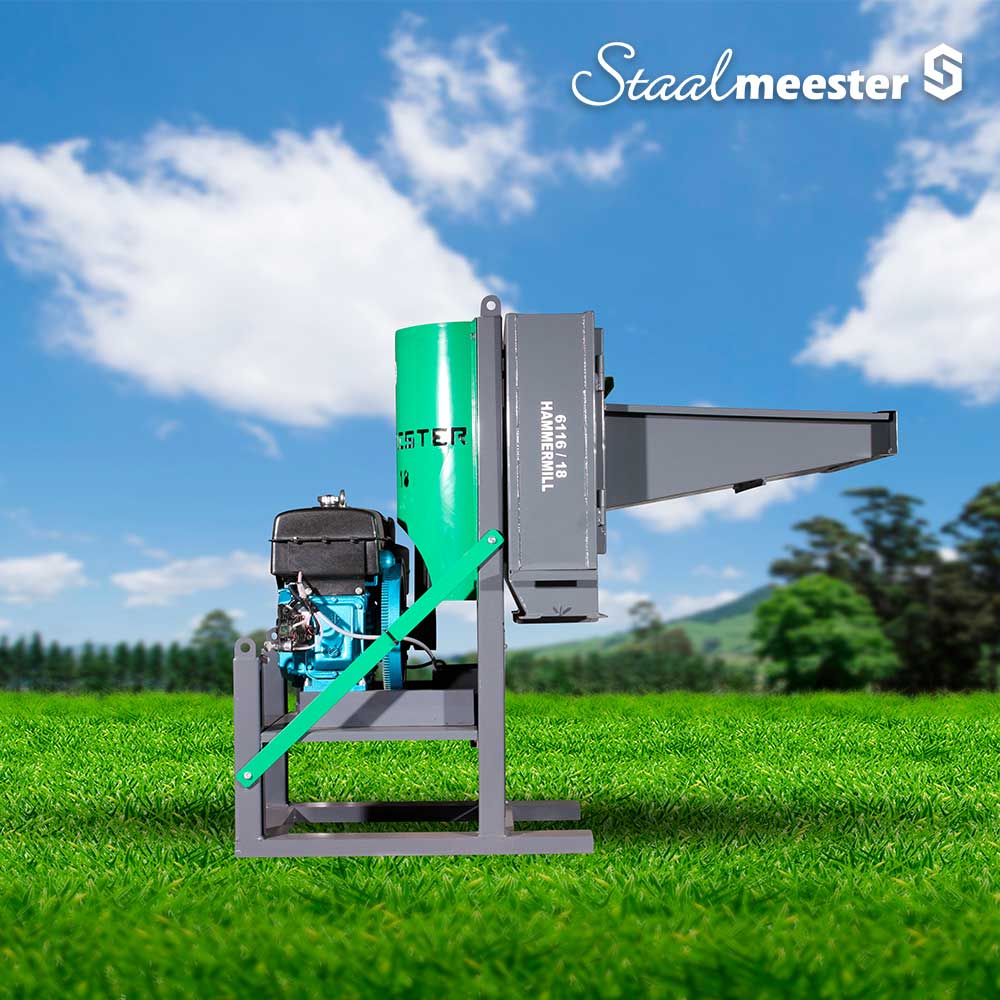

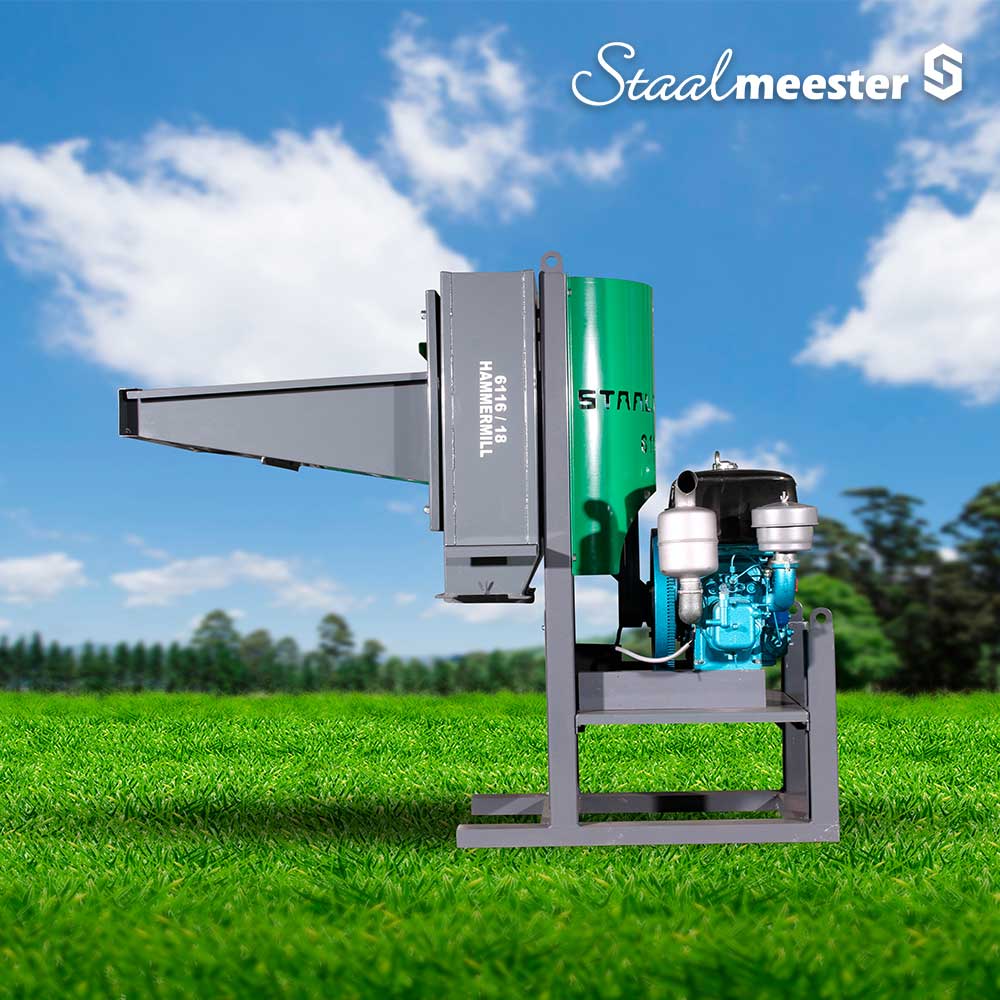

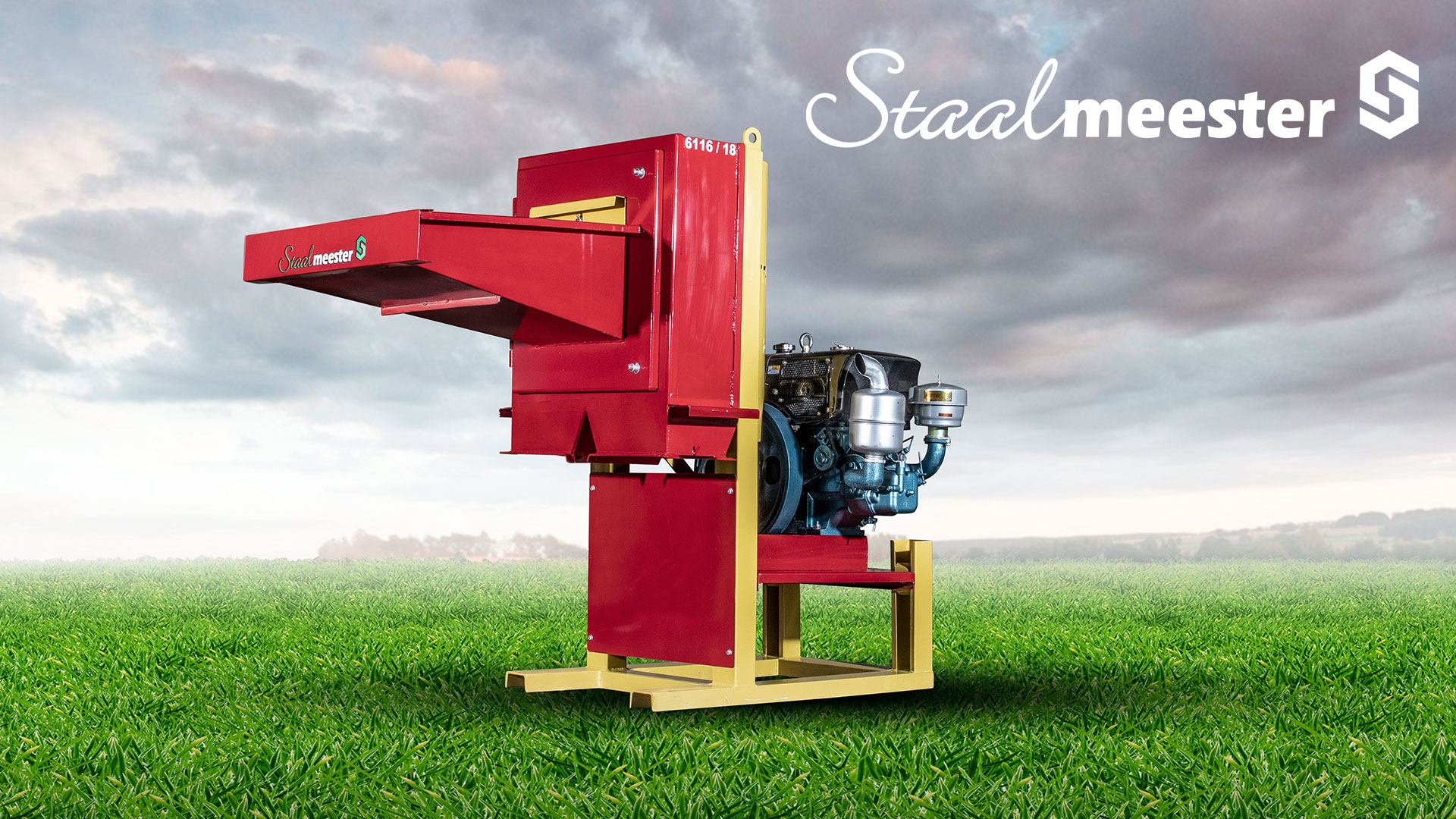

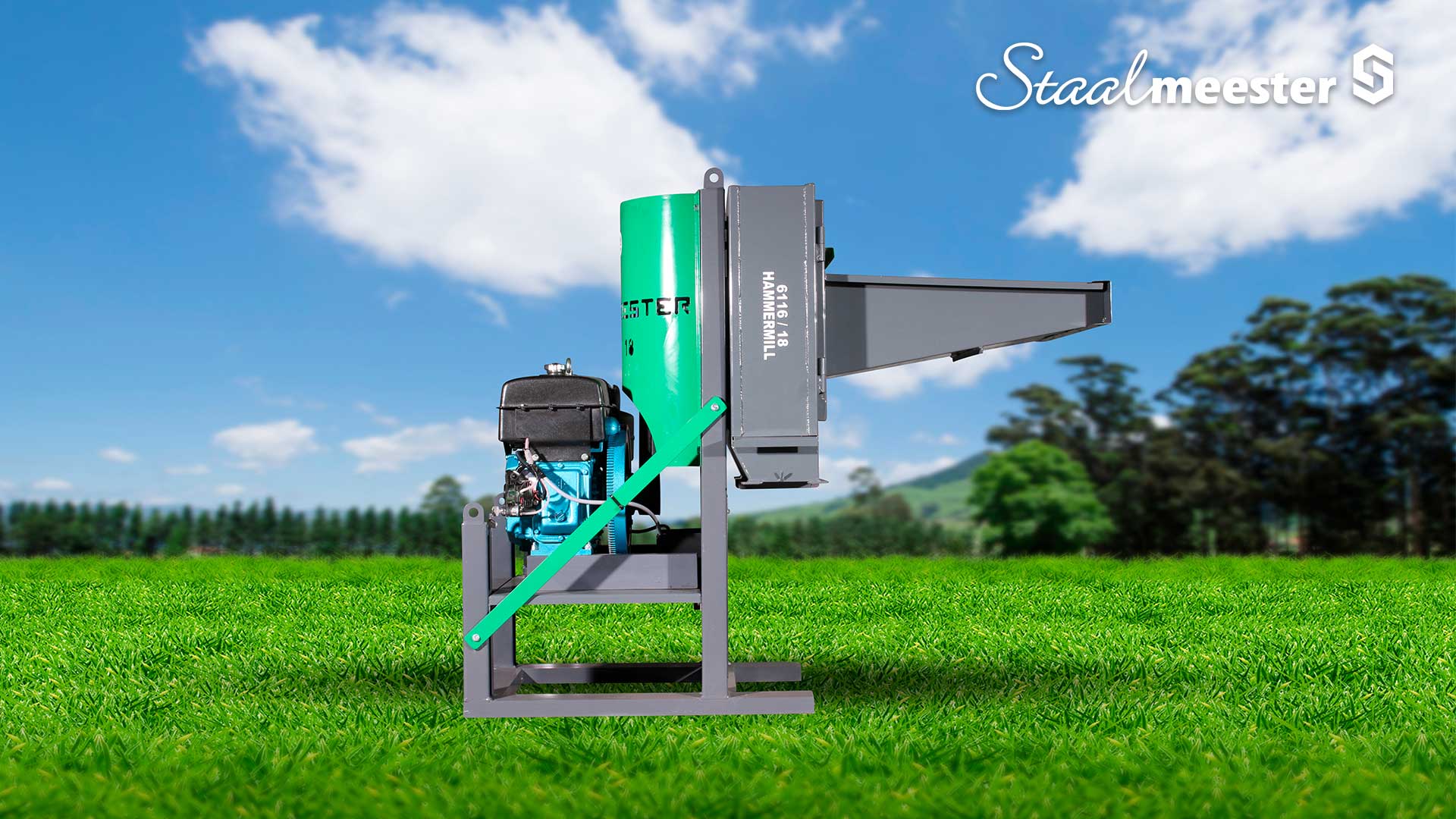

  • Diesel 13.2 kW

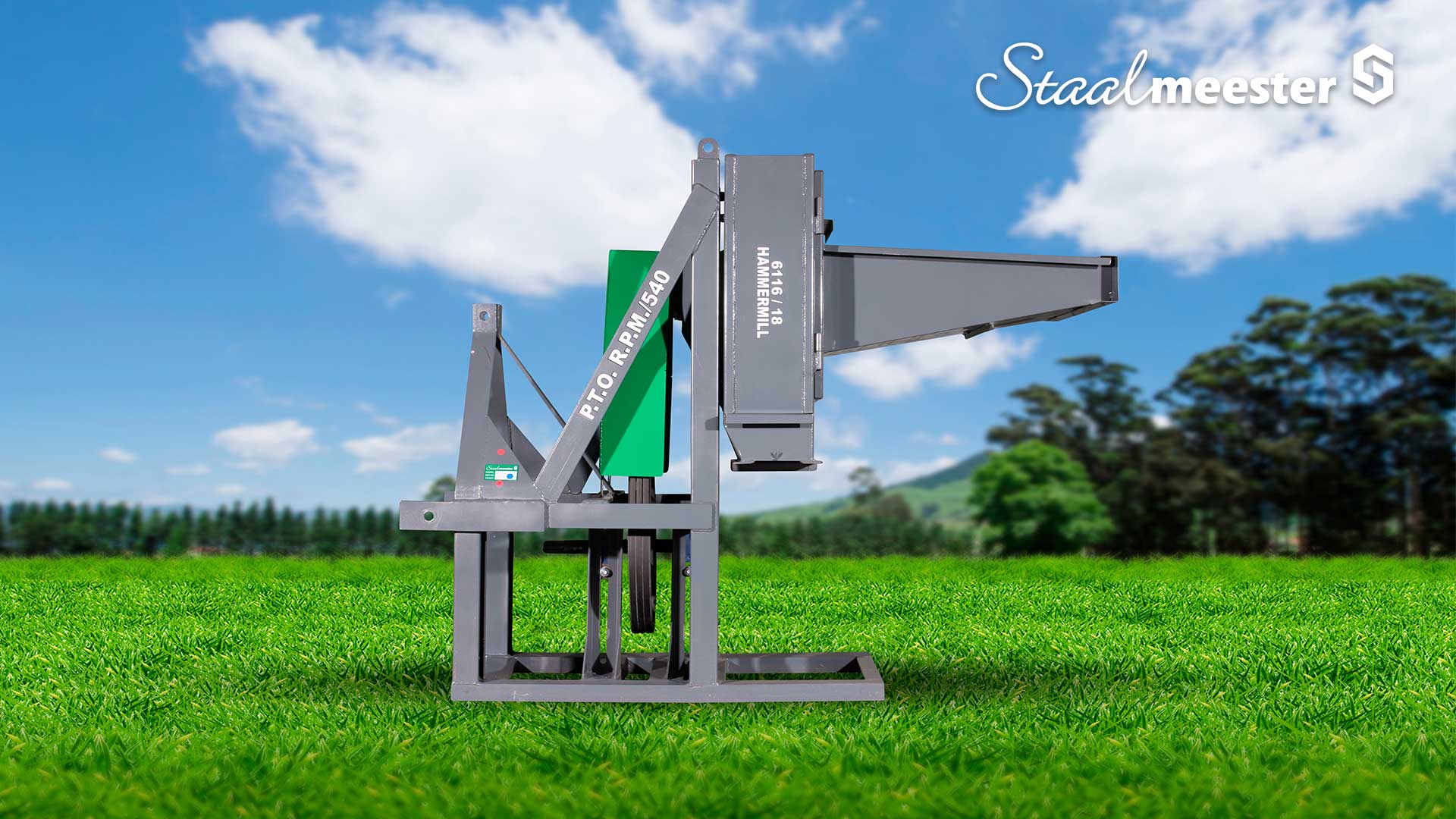

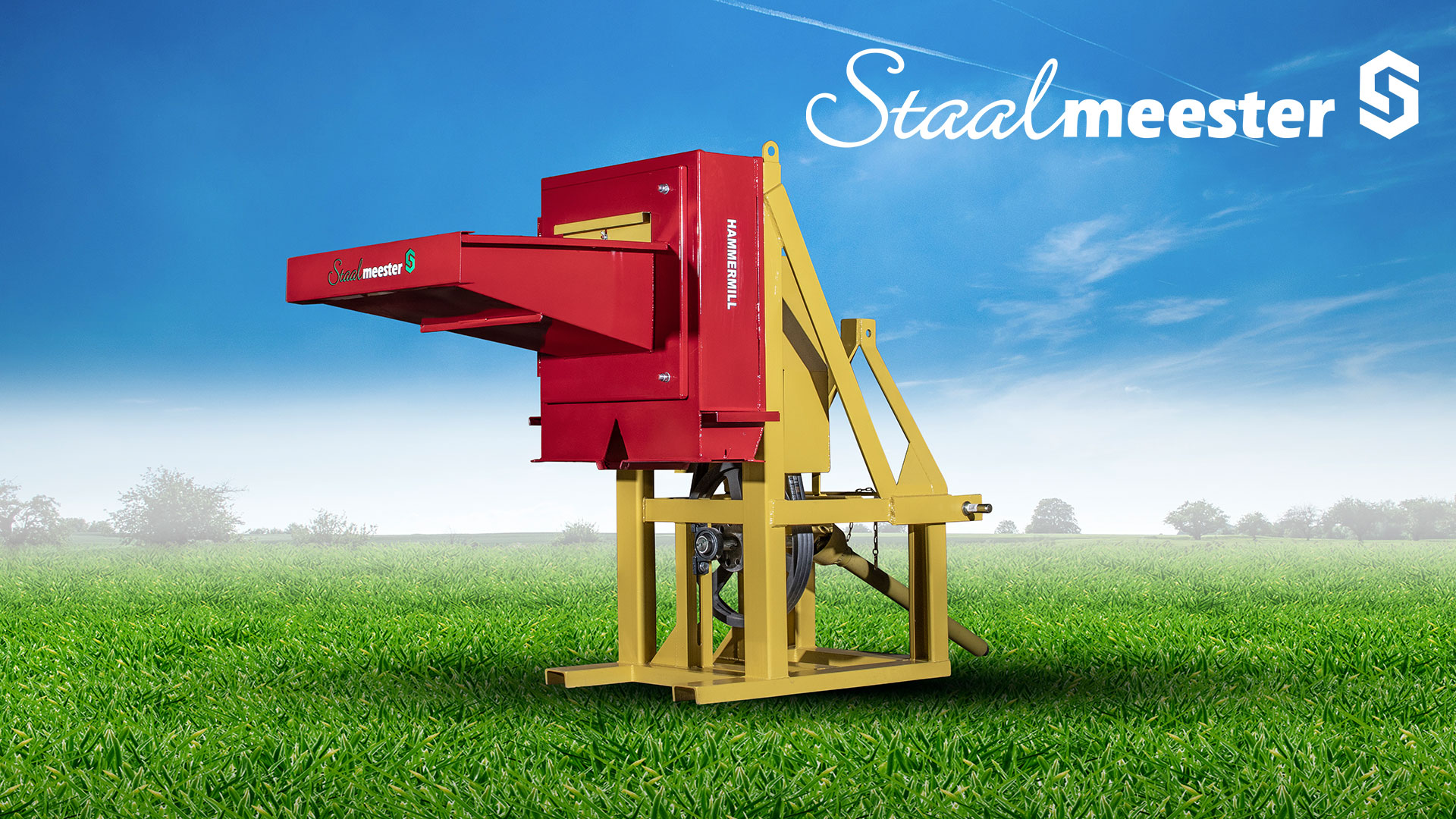

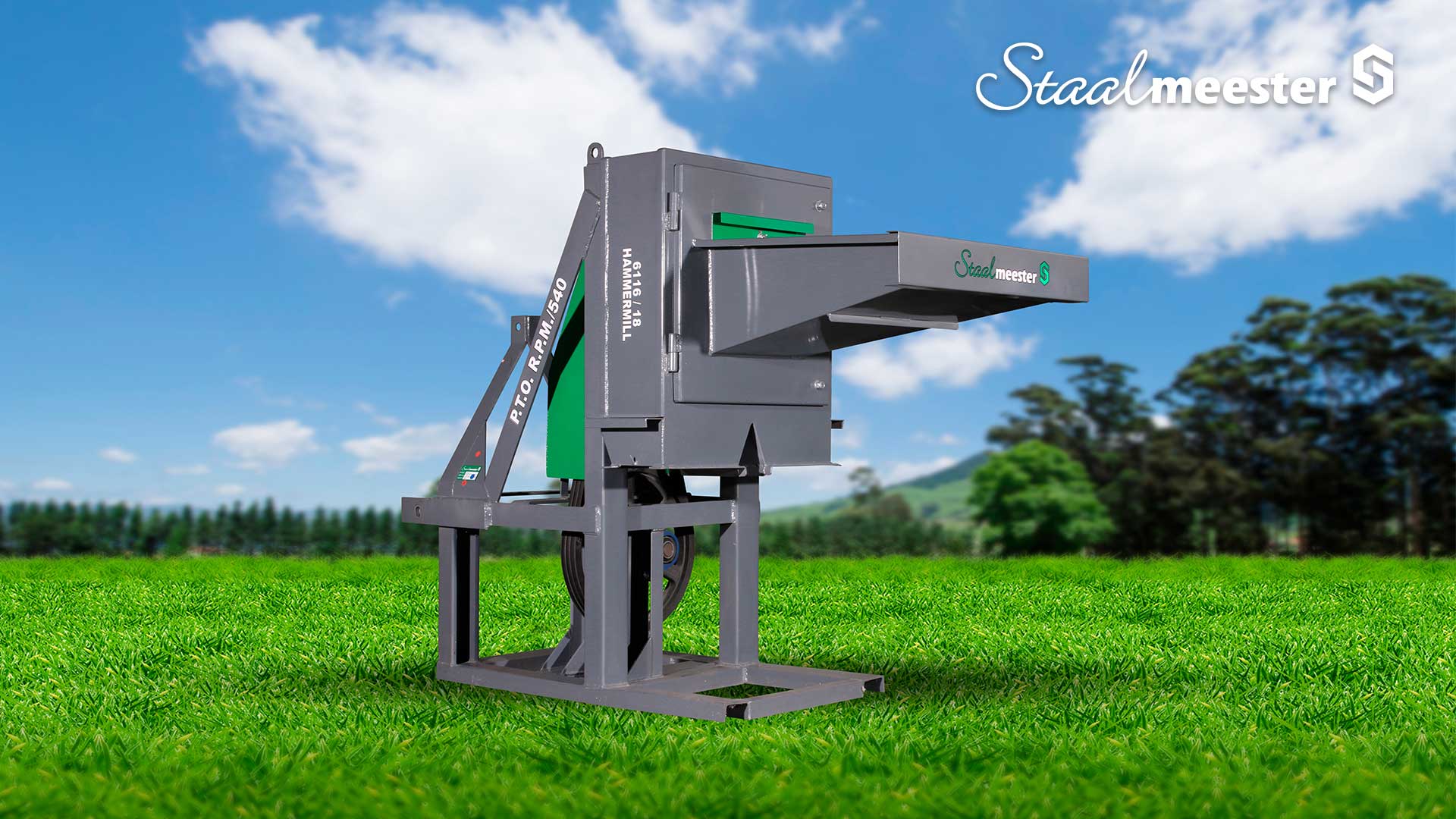

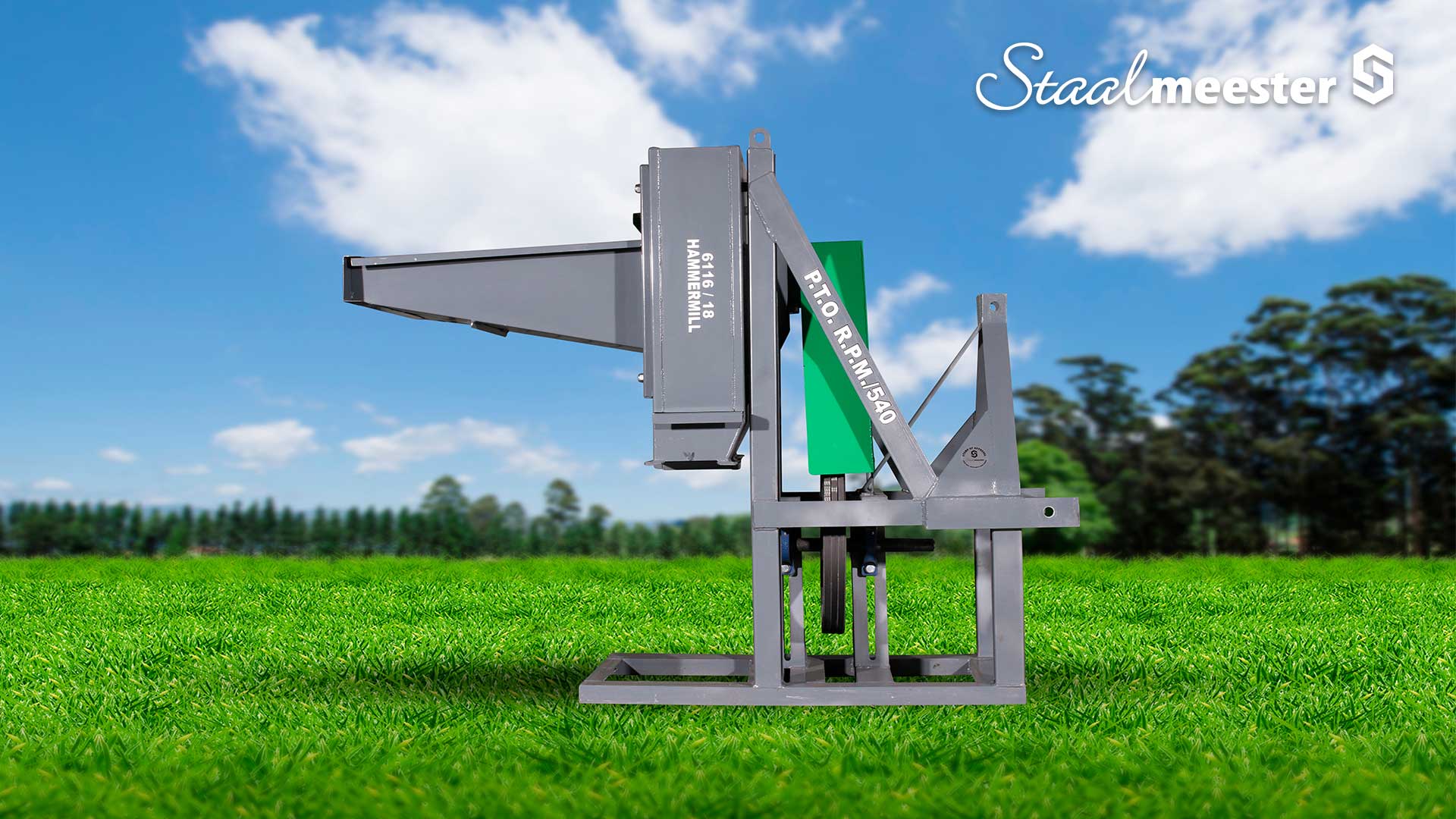

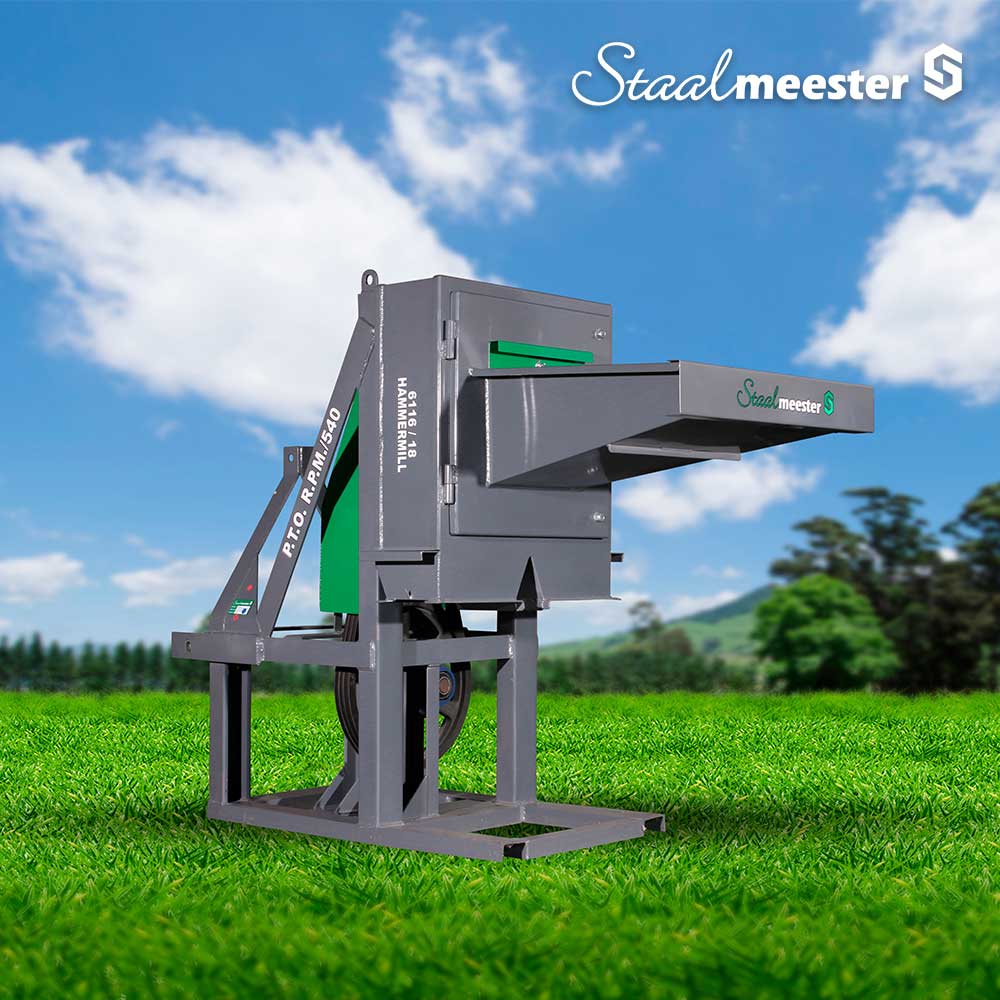

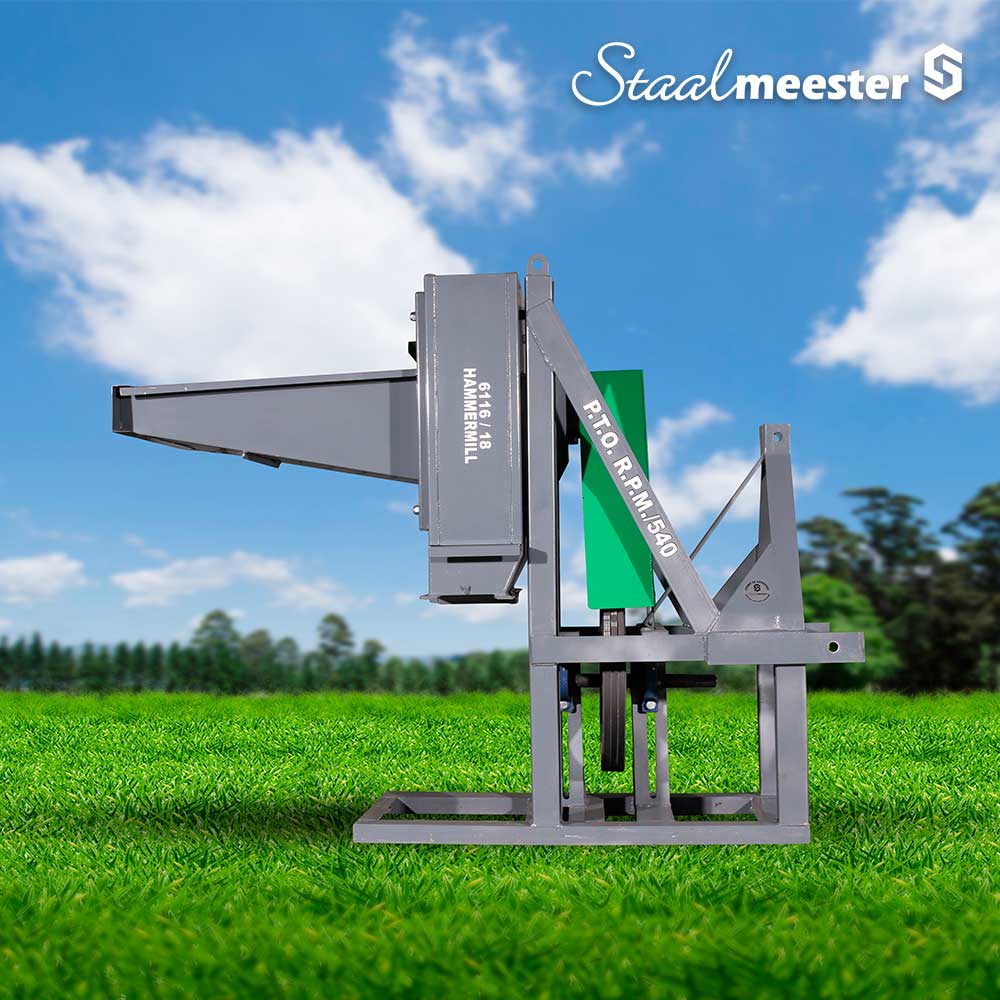

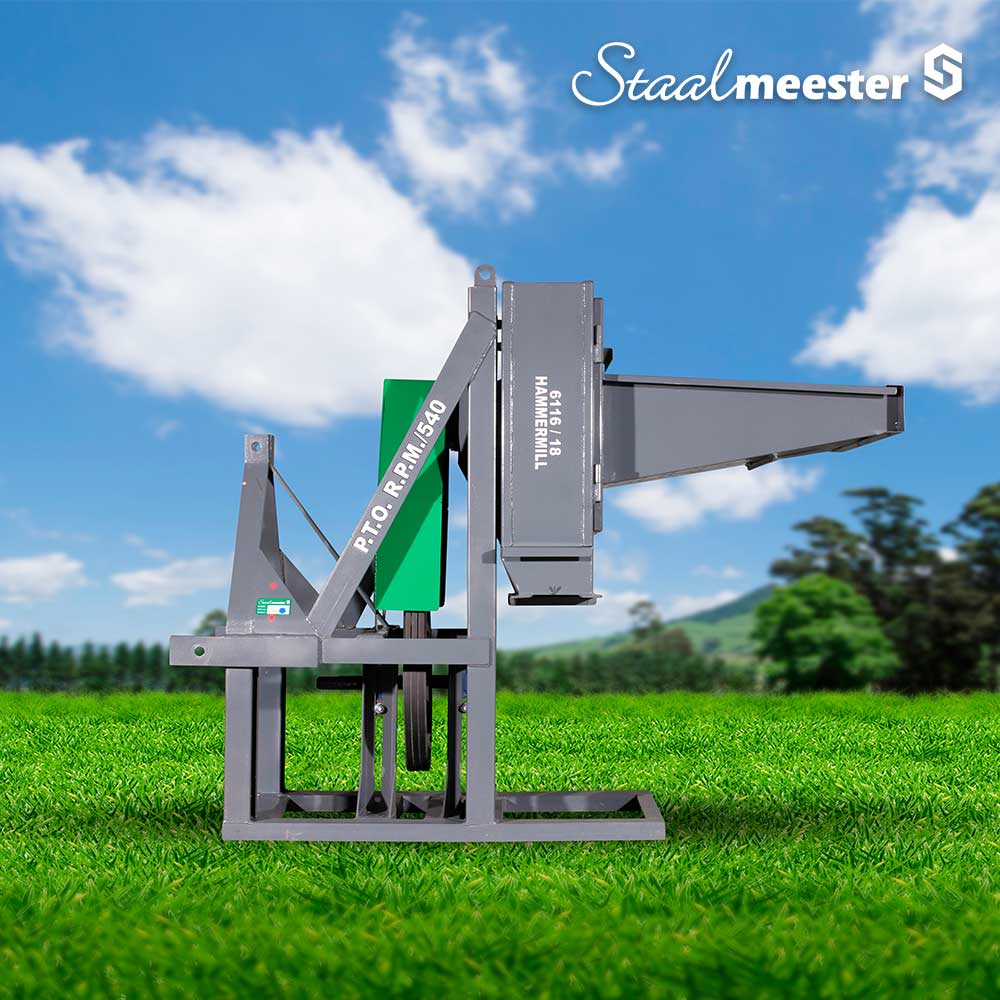

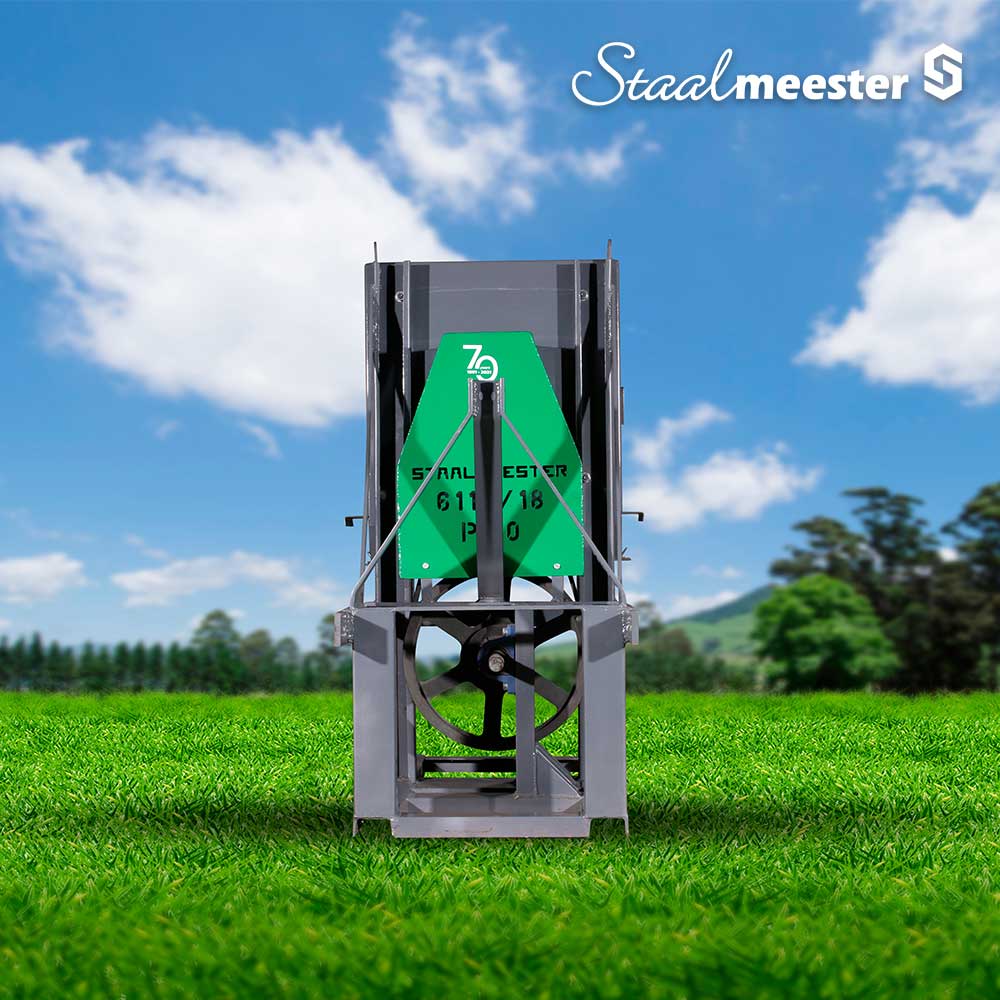

  • 3 point tractor driven
  • Without motor

Screen sizes vary from 0.8 to 70 mm

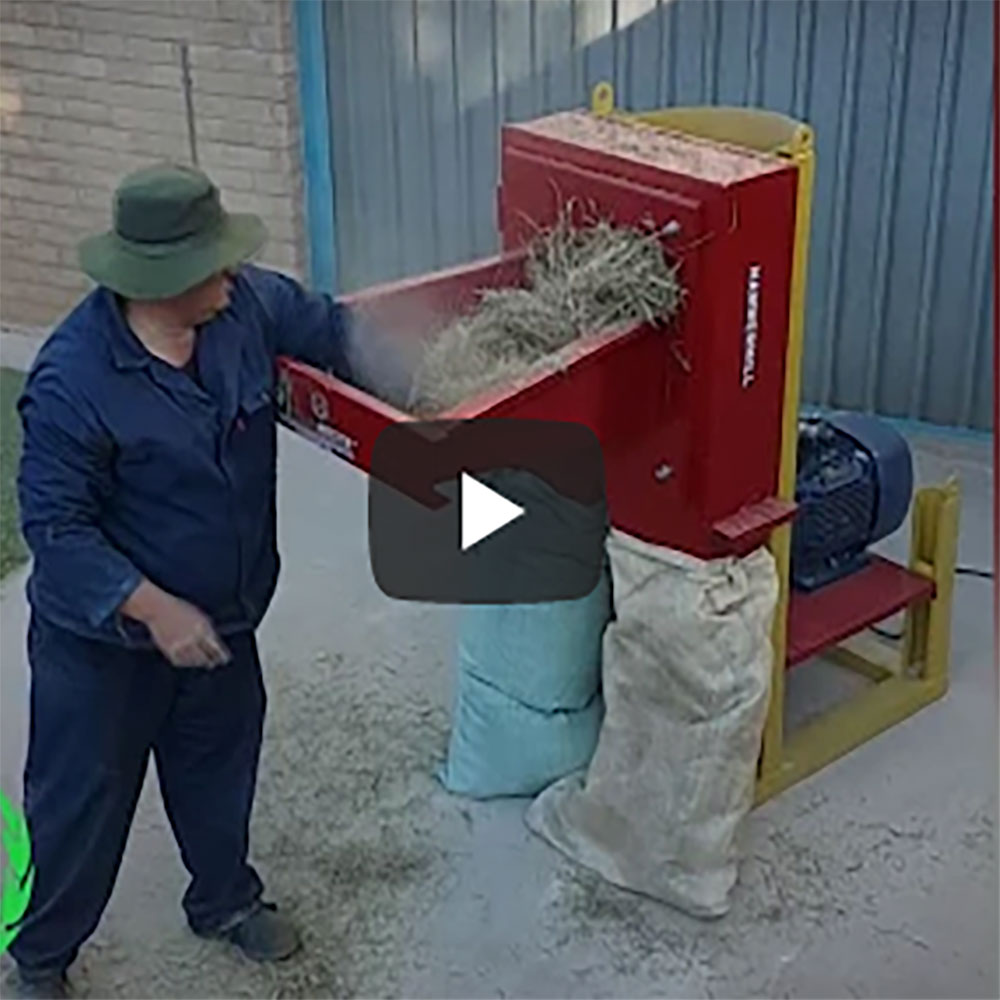

6116 18 Dust Free Hammer Mills on grass

Watch the 6116 18 Dust Free Hammer Mills on grass demo video on our YouTube channel.

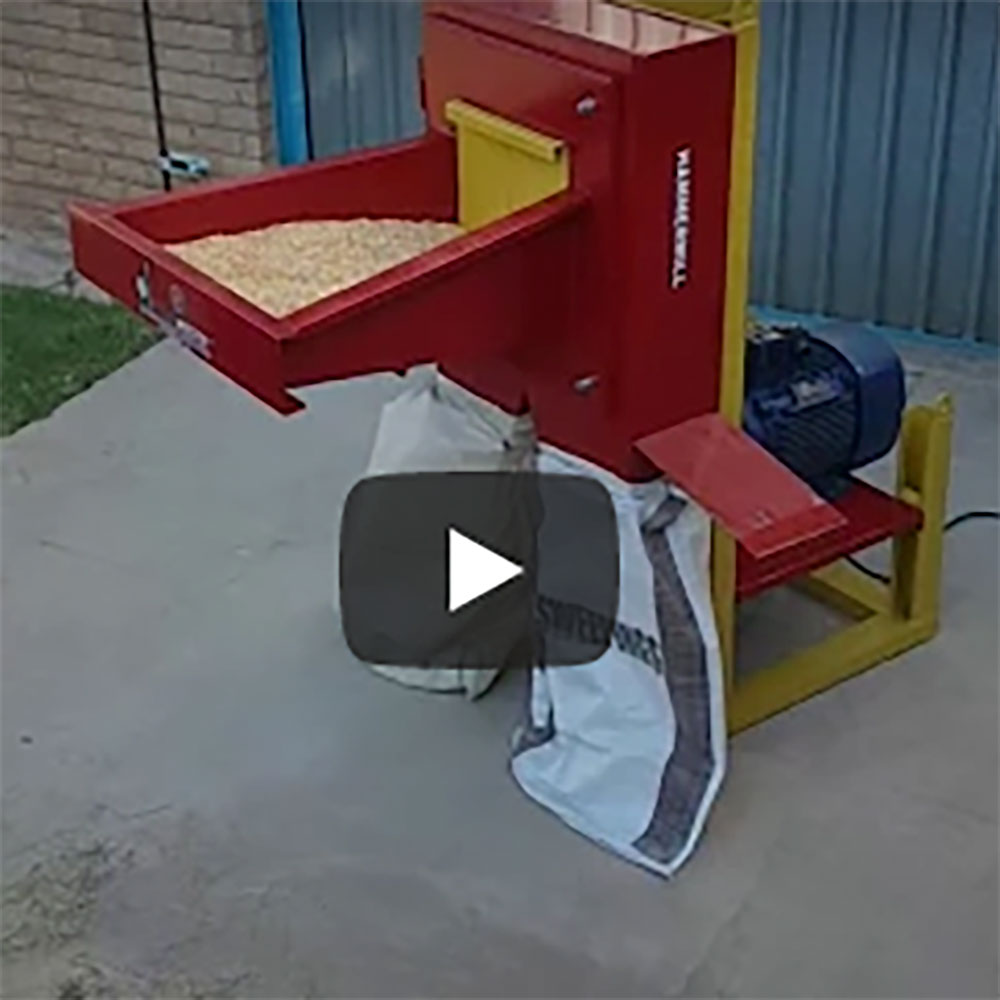

6116 18 Dust Free Hammer Mills on maize

Watch the 6116 18 Dust Free Hammer Mills on maize demo video on our YouTube channel.
