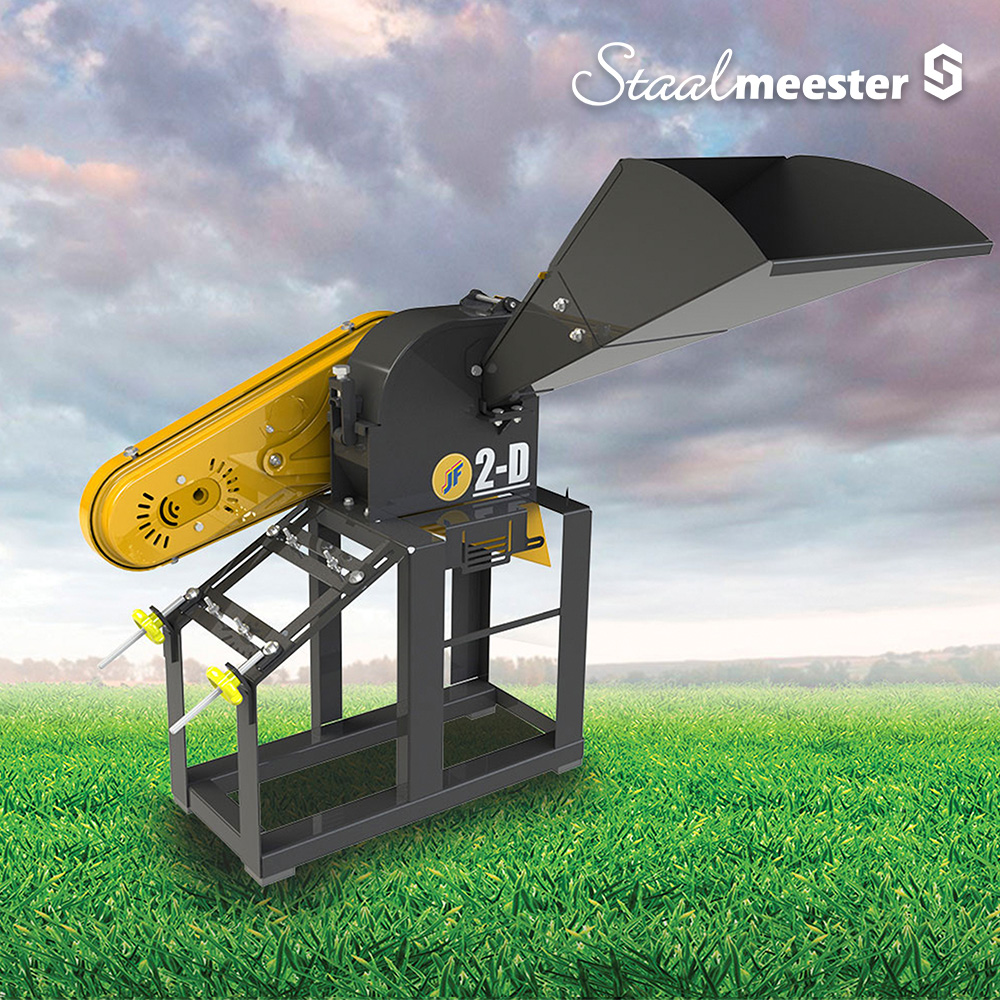

The JF 2D hammer mill has a high resistance and durability. It is a versatile, small, powerful hammer mill. The machine is ideal for grinding maize, any grain types, as well as corn on the cob. Sugar cane chopping, grass, Lucerne, garden waste and any other green forage. The JF 2D can be used to chop small branches and garden waste. The rotor is designed with two blades on the side to act as a wood chipper or shredder.

Hammermill Brochure JF Hammer mills Brochure

Product Overview

video thumb
Cob Yes
Green fodder Yes
Maize grain Yes
Number of blades 2
Number of moving hammers 6
Required electric motor power 2 to 3 hp
¹The motors, cyclones, sieves and engines are optional and sold separately. ²Productivity might vary and depend on factors like: tractor, motor or engine power, labor availability, type and quality of forage. The grain size/productivity are directly linked to the grain moisture content.

Additional Info:

Power options available :

  • Electric 2.2 kw single phase 2 or 4 pole
  • Electric 5.5 kW 3 phase
  • Petrol 6.5 HP
  • Diesel 5.5 HP
  • Without motor

Benefits :

  • Double function in one single equipment: chop green forage and grind grains;
  • Higher durability and resistance;
  • Full usage of ground material resulting in higher production performance;
  • Easy operation and low maintenance;
  • Available with base for driving with electric motor, diesel /petrol and tractor PTO.

Characteristics :

  • Fodder Processors with productive capacity according to the technical specifications table of this document, equipped with knives and hammers built in special and hardened steel, complete rotor in carbon steel, moving hammers with 4 working lifes, adjustable counter-knife built in special steel, sievesof 0,8mm, 1,5mm (JF 1D only), 3mm, 5mm, 10mm and flat bottom for special usage in maize grain, maize cobs and green products in general (forage), optional cyclones, bases for driving by electric motors, diesel/gasoline, 3-point likage/ tractor PTO.
  • In order to know versions and accessories available as well as required power for each model, please check the technical specifications table.

JF 2D Hammer Mill on maize (part 1)

Watch the JF 2D Hammer Mill on maize (part 1) video on our YouTube channel.

JF 2D Hammer Mill on maize (part 2)

Watch the JF 2D Hammer Mill on maize (part 2) video on our YouTube channel.

Hammermill Playlist

Watch the Hammer Mill playlist on our YouTube channel.

Staalmeester | JF 2D Hammer Mill Variations

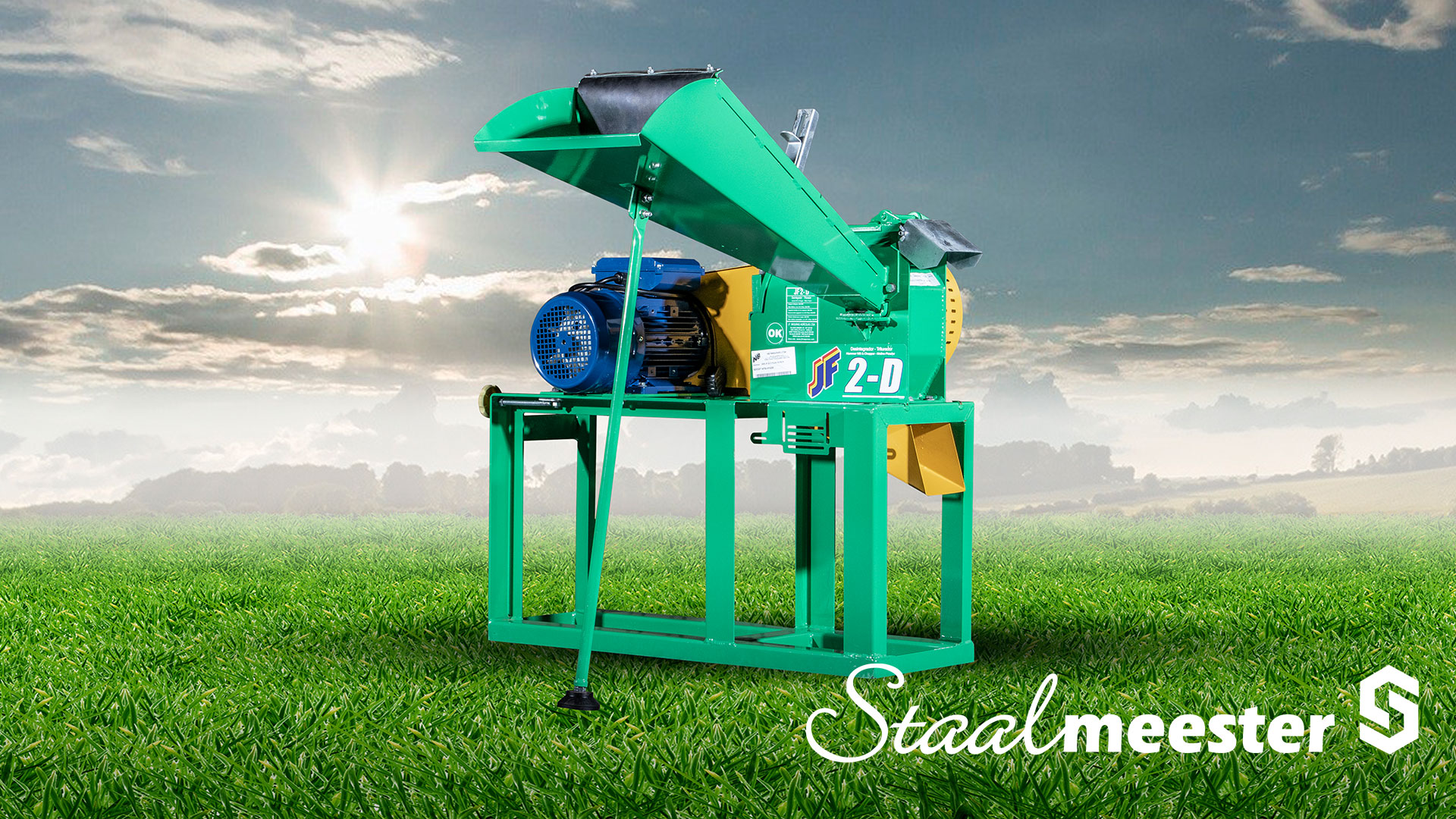

JF 2D Hammer Mill Electric

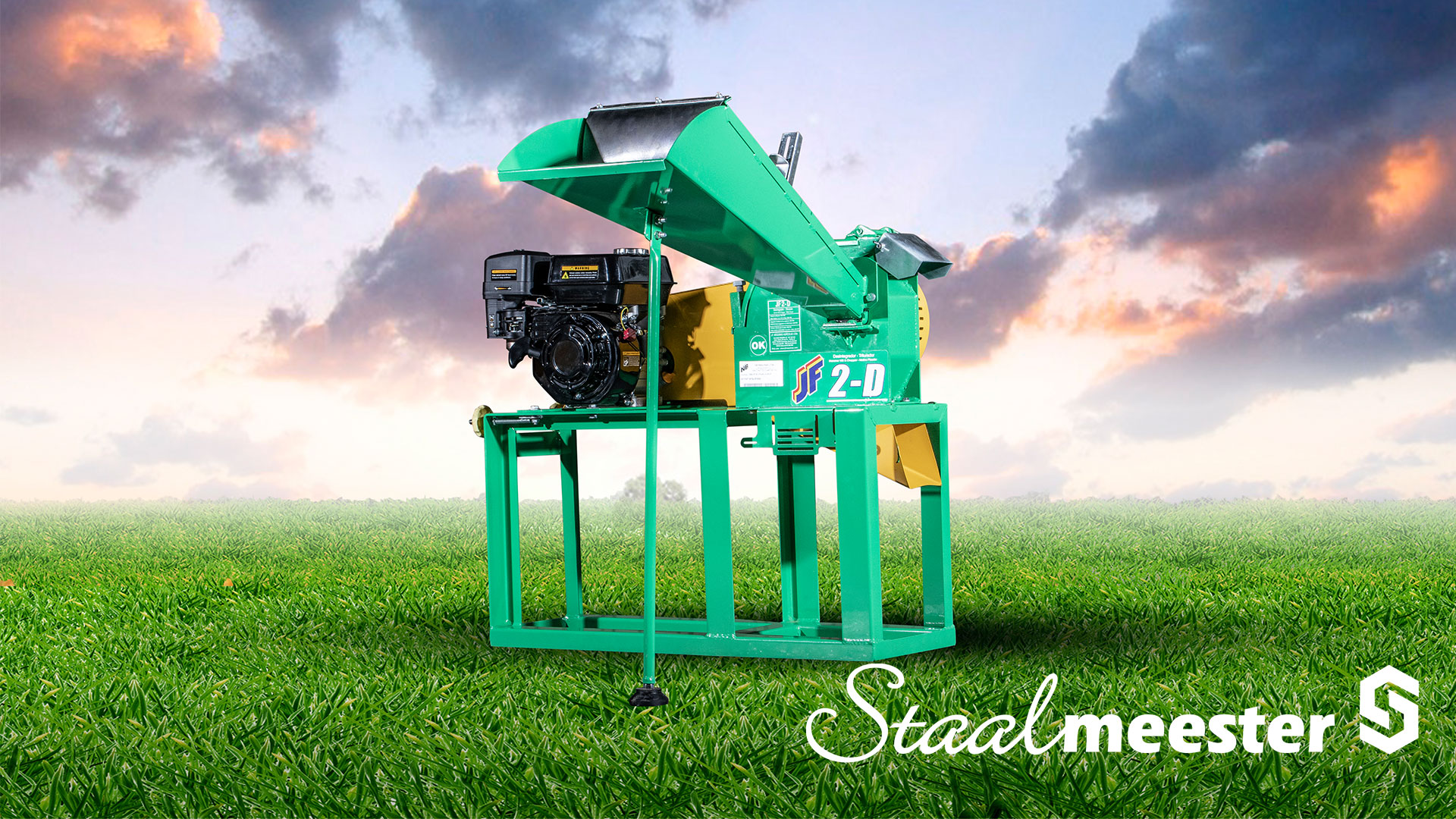

JF 2D Hammer Mill Petrol

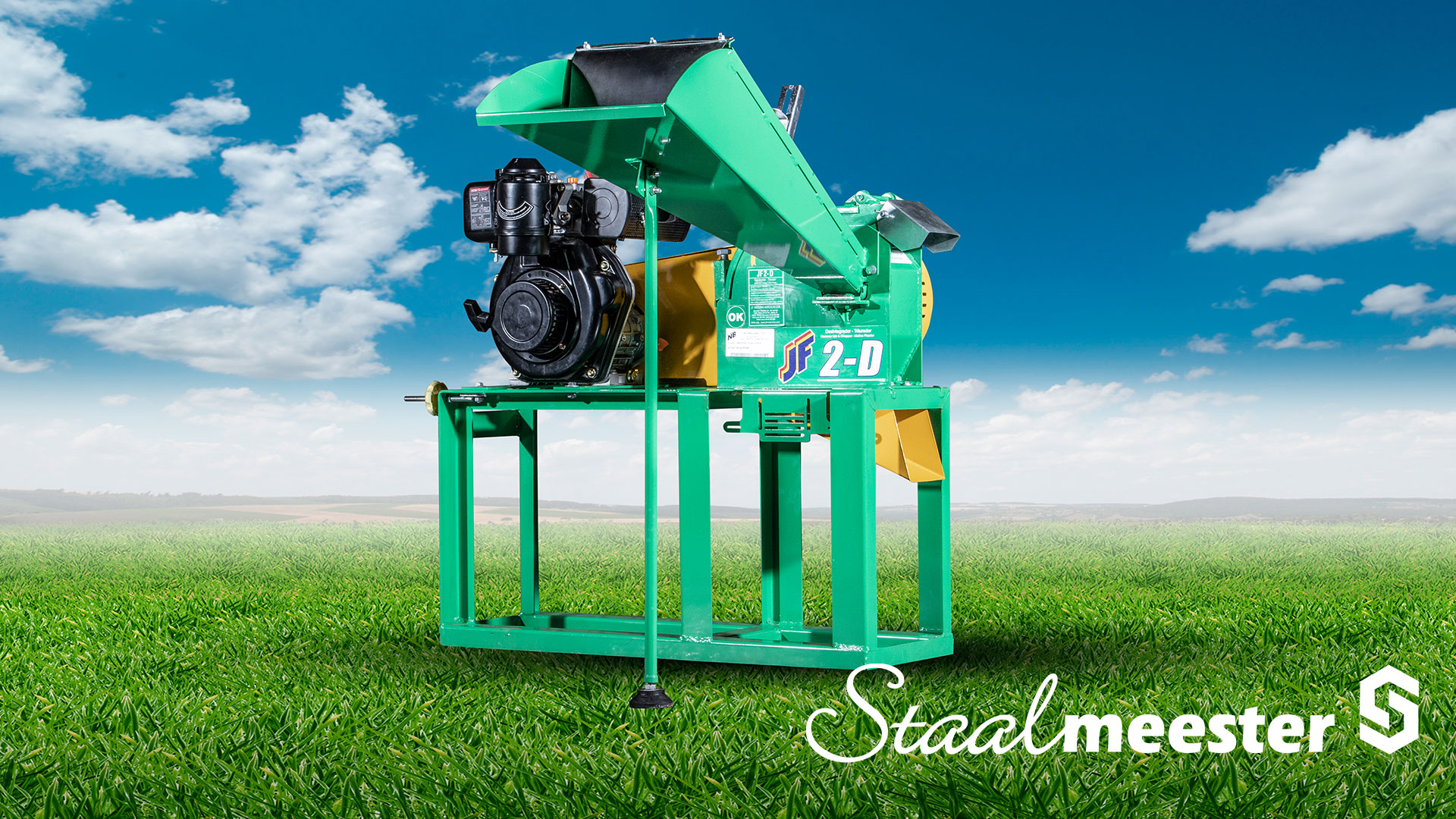

2121 Hammer Mill Diesel
