Staalmeester | JF Spin 3000 S2 Rake/tedder combo

Staalmeester | JF Spin 3000 S2 Rake/tedder combo

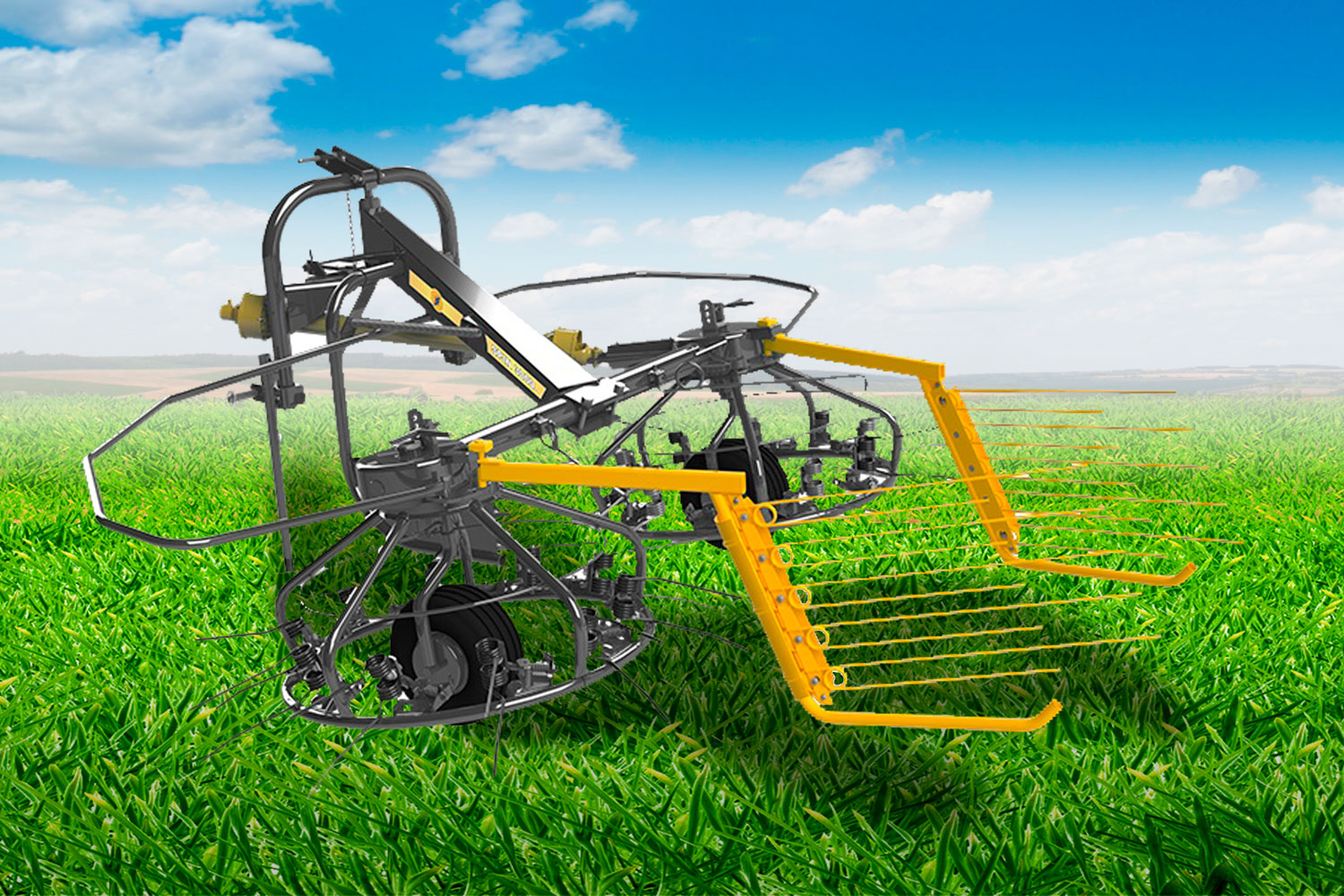

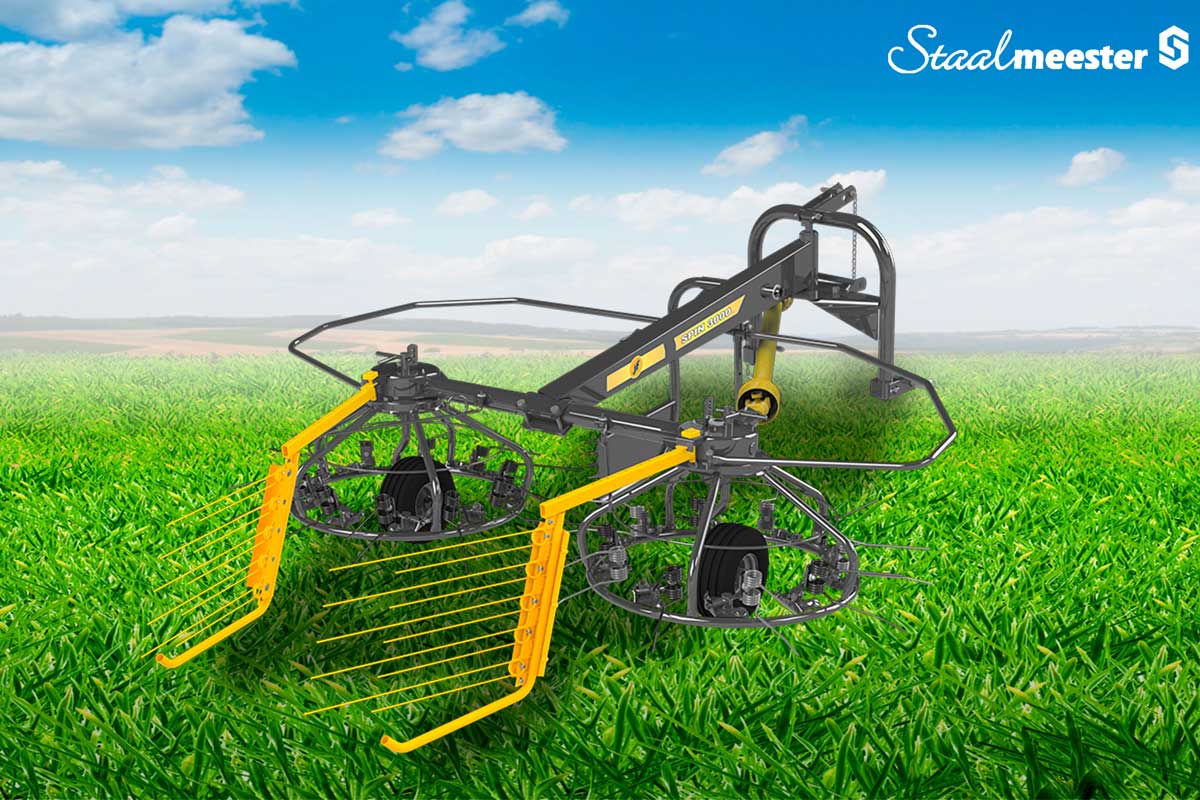

JF Spin 3000 S2 rake and tedder combo has a flexible system resulting in versatility in a single equipment. Its tines are adjustable and spread the forage evenly for a quicker and homogeneous drying, making the hay process easier and faster.

JF Spin 3000 S2 Rake Brochure

Product Overview

3-point linkage Category I & II
Maximum capacity 3 ha/h
Recommended revolution at PTO 350 to 540 RPM
Required power at PTO 15 hp
Tires 15 x 6.00 - 6 A PR
Transport width 2.800 mm
Weight 300 kg
Width for double windrow 6.000 mm (3 turns)g
Width for single windrow 3.000 mm
Working width 3.000 mm

Attachable to : JF 92 Z6 and JF C120

Used for : maize, sorghum, sugar cane and tropical grasses.

Additional Info:

Uniform tedding and windrowing due to the adjustable spring system in the horizontal position;

Ease to change from tedding to windrowing modes with a simple adjustment of springs, deflectors and tires;

Reduction of wind impact on cut grass due to the horizontal springs that keep the product closer to the ground;


Adjustable deflectors minimize losses in both flat and uneven terrains and also allows working on edges and ditches avoiding wastes;


Safety system locks the rake when on hanging position;


Standard tedding adjustment with the setting of tires height and rotor inclination.
