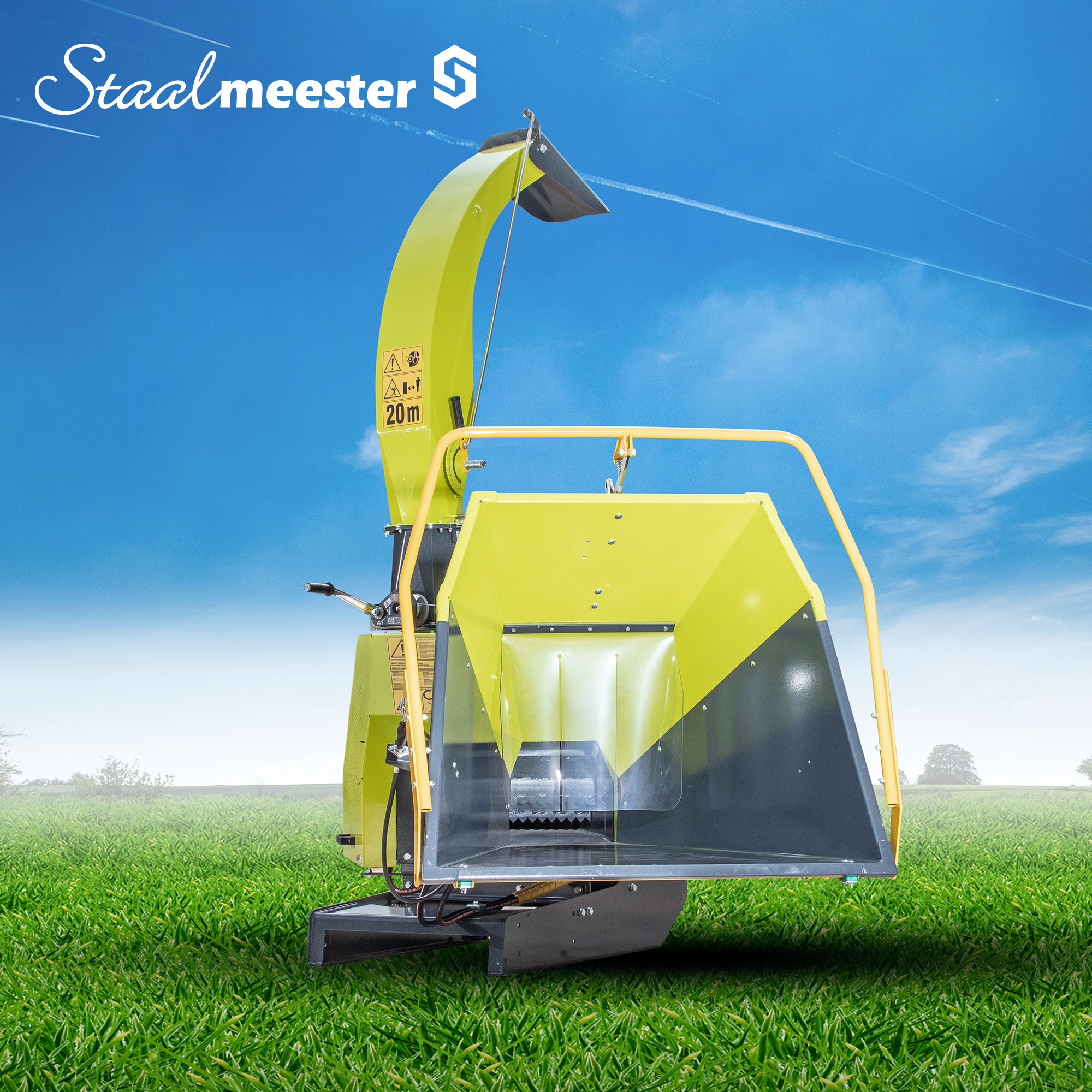

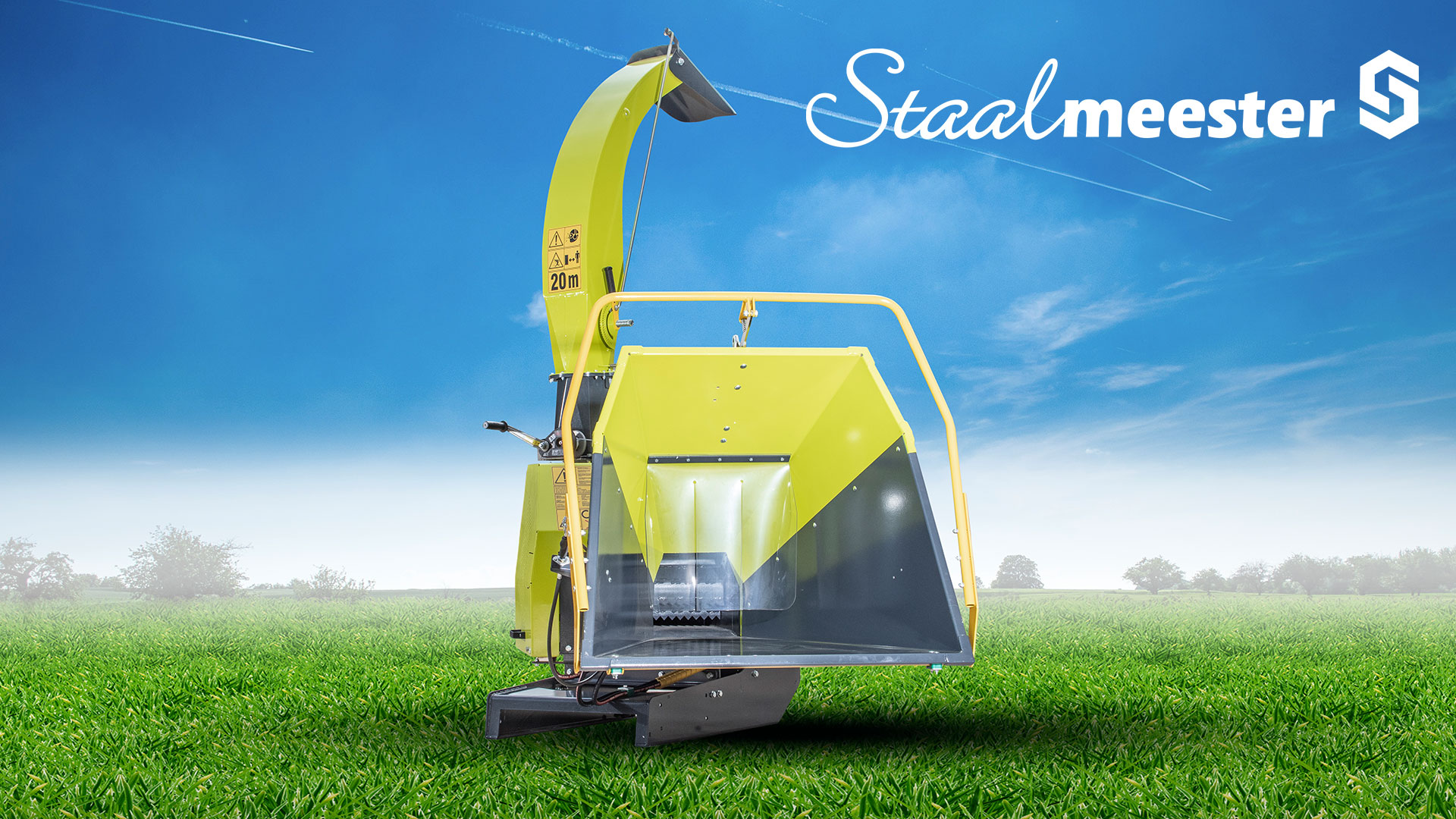

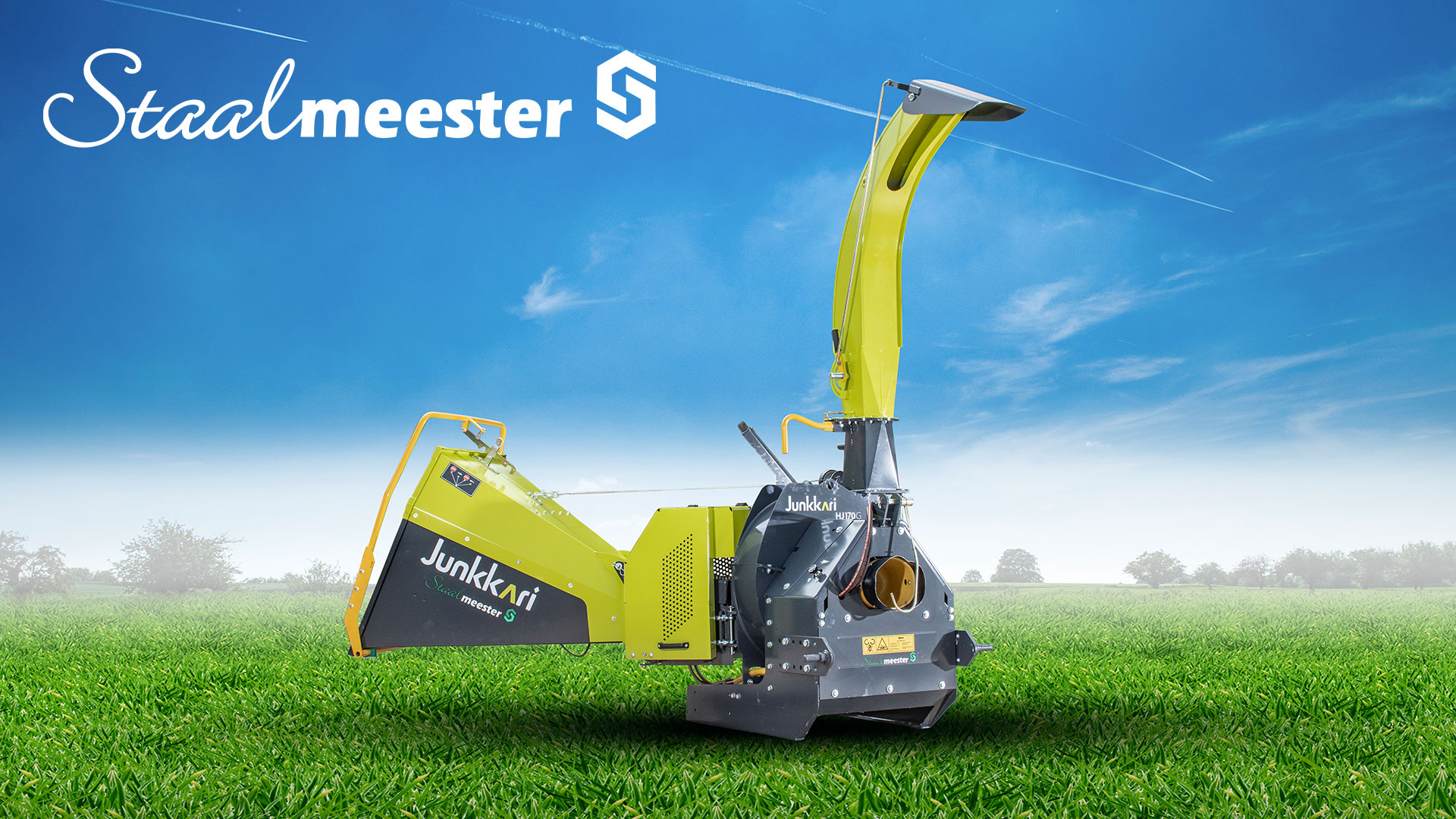

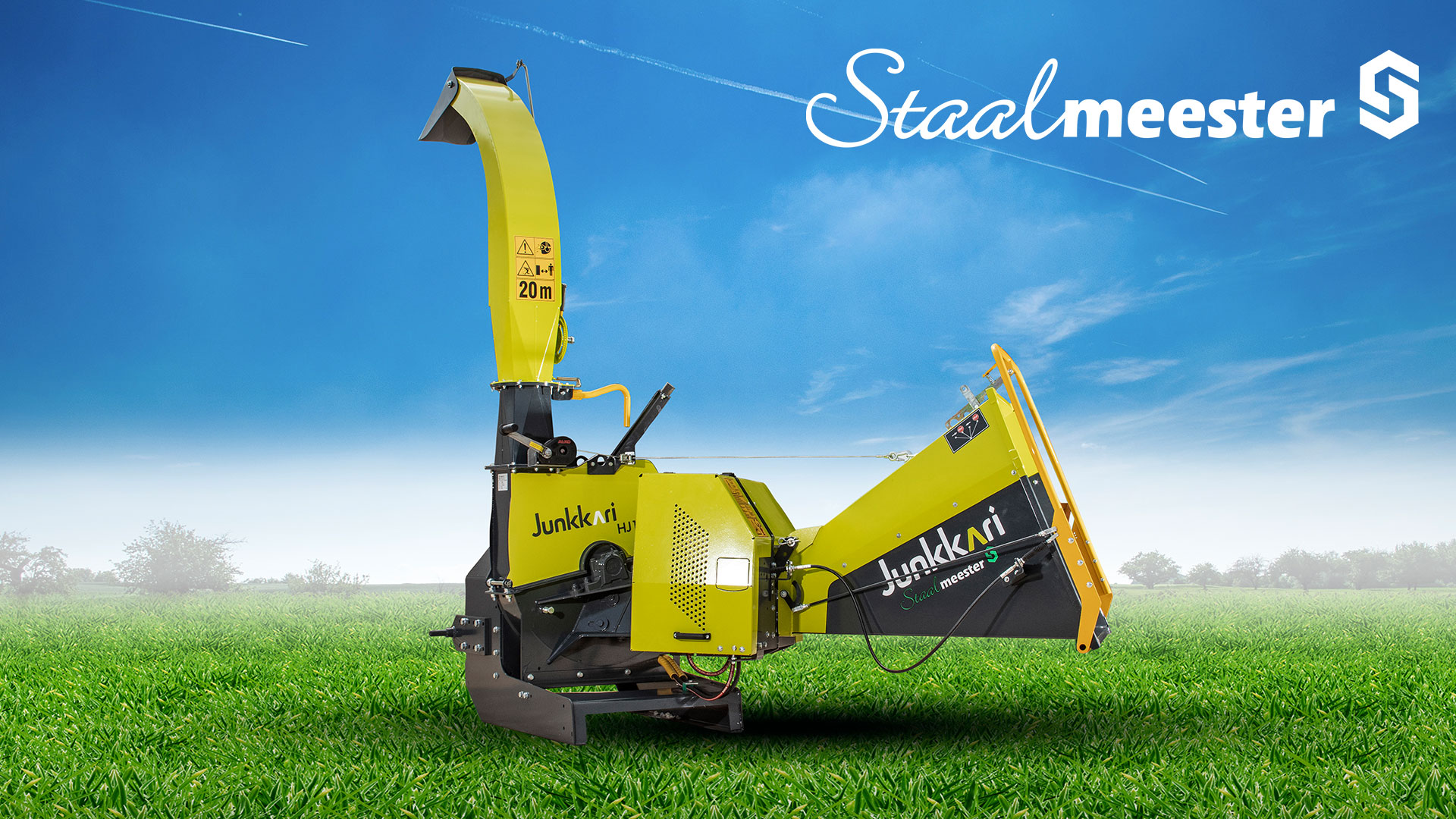

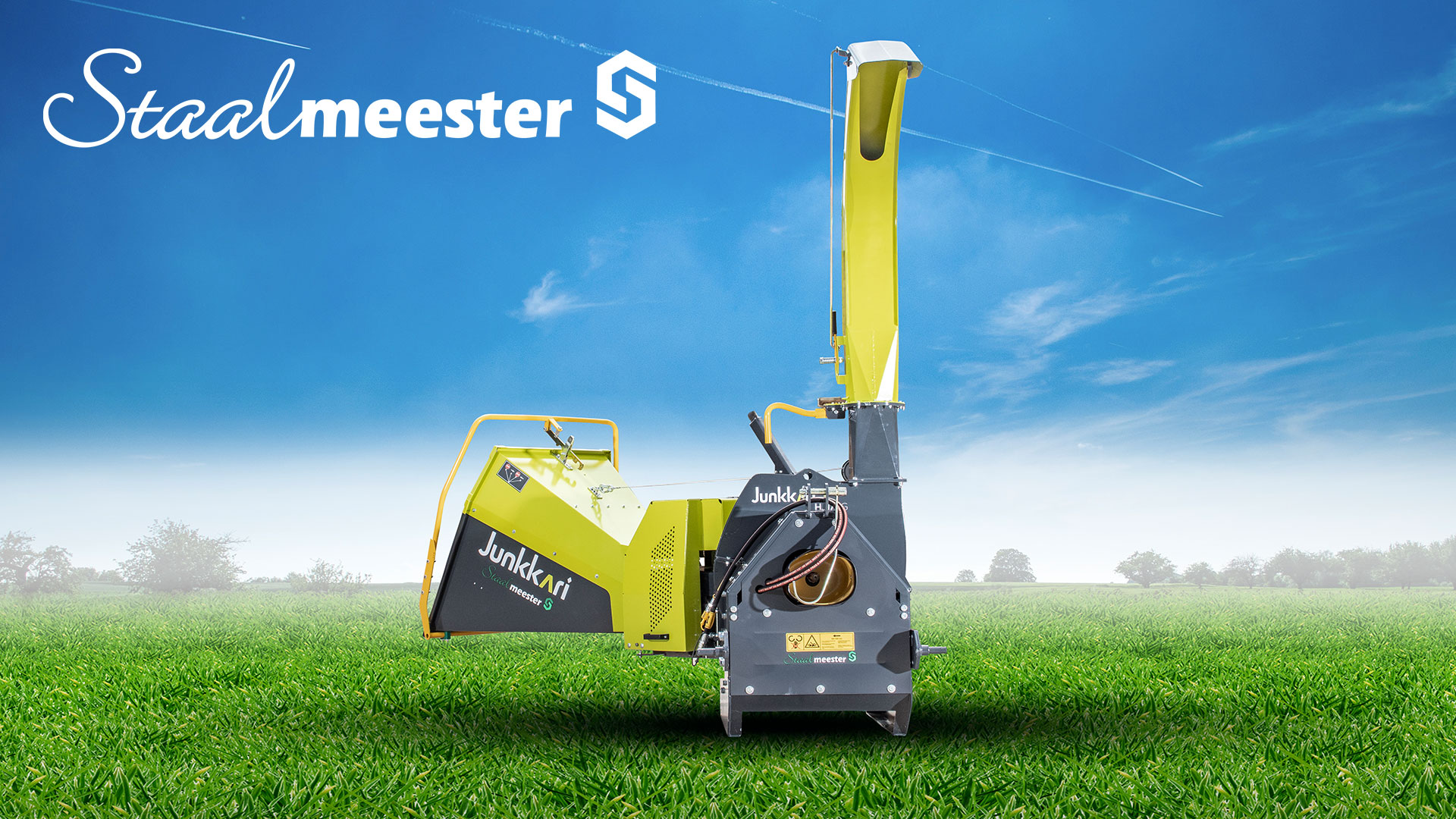

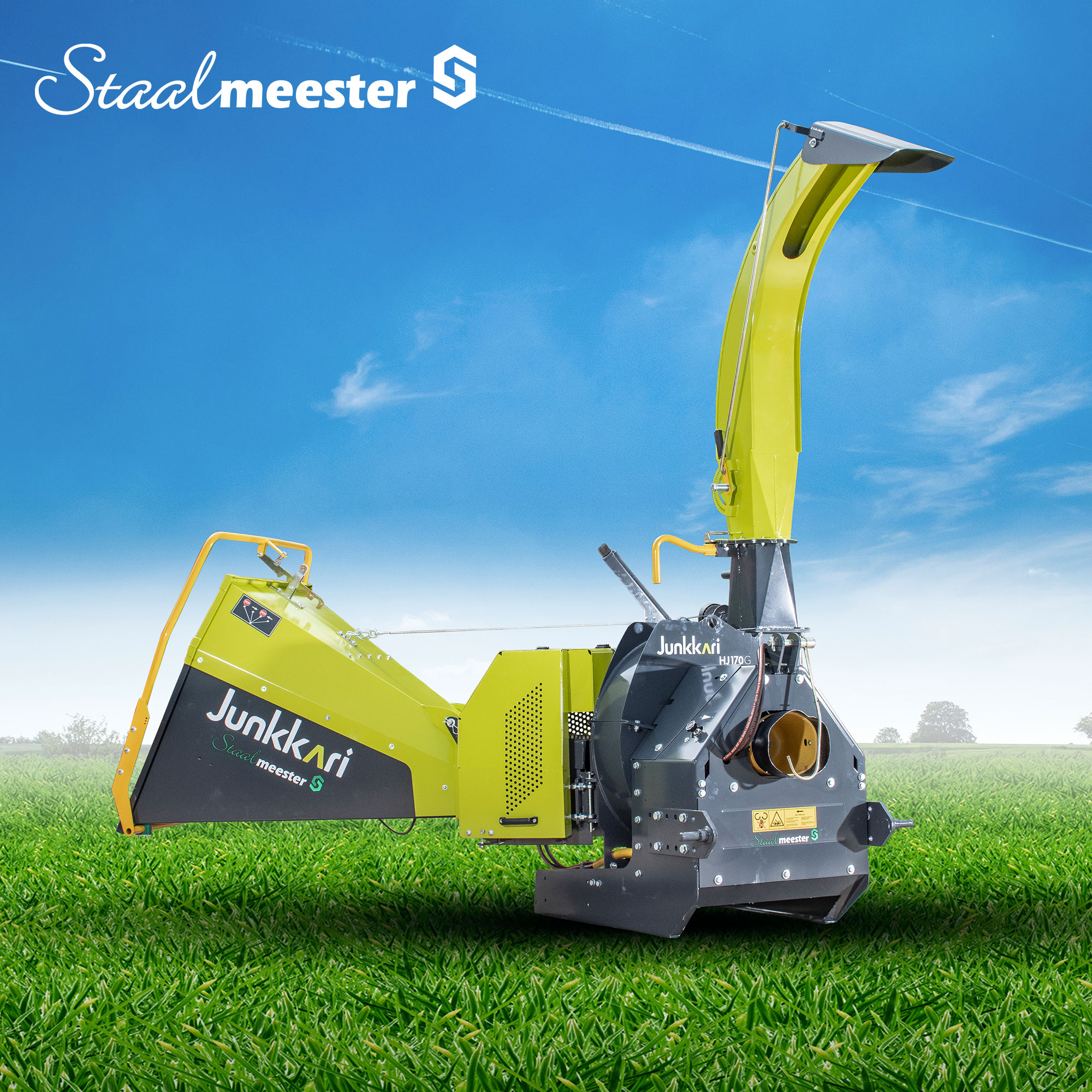

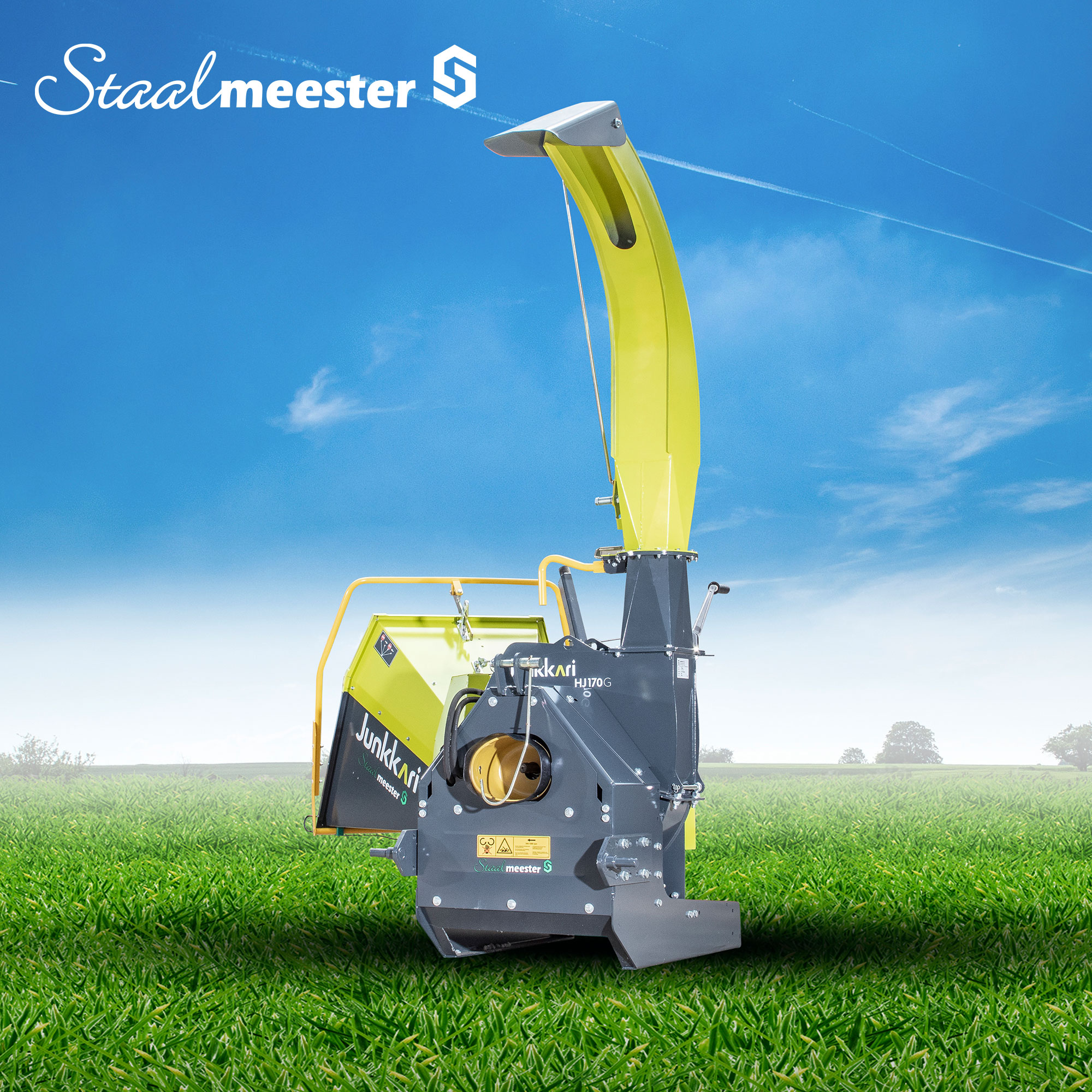

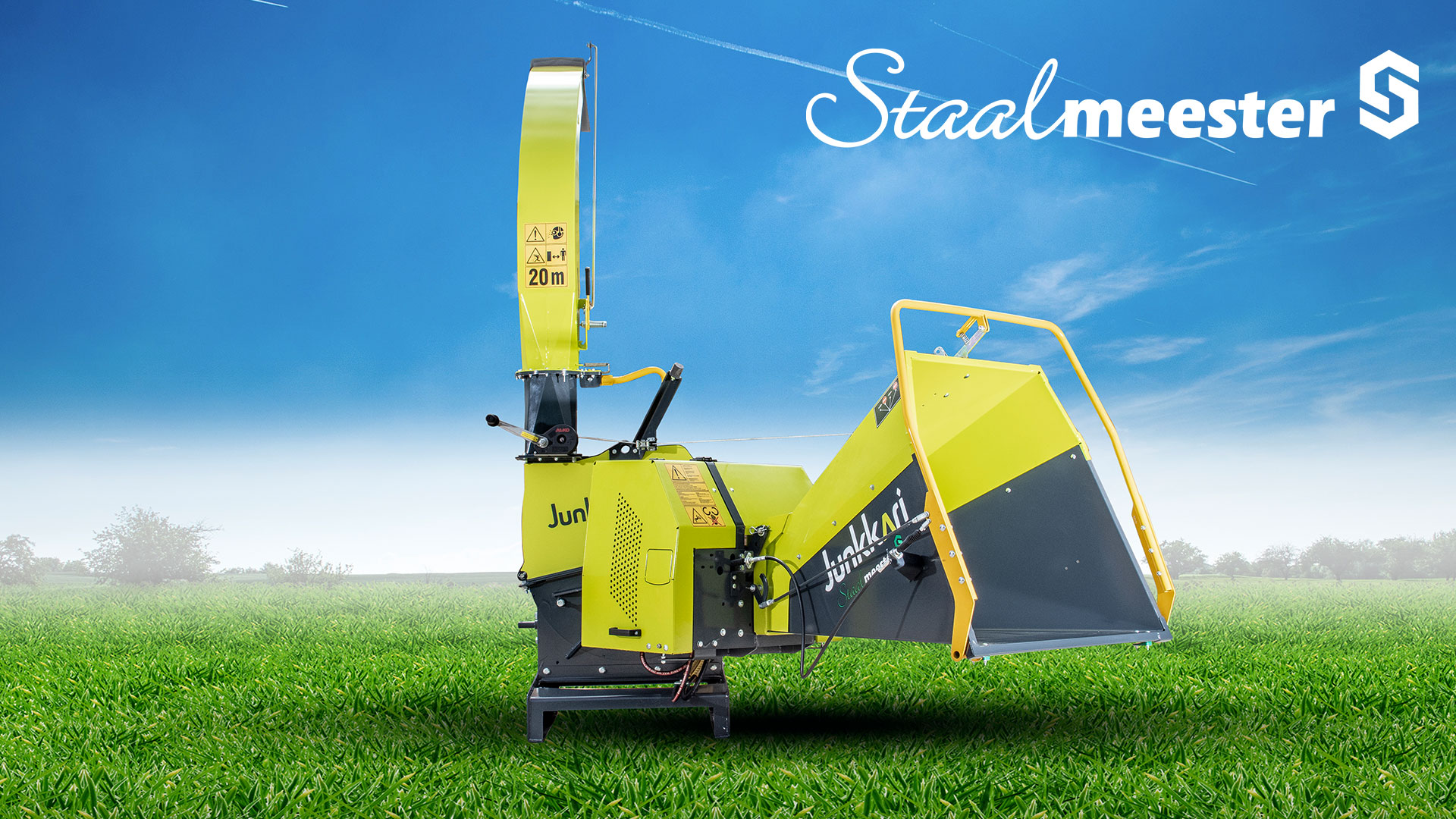

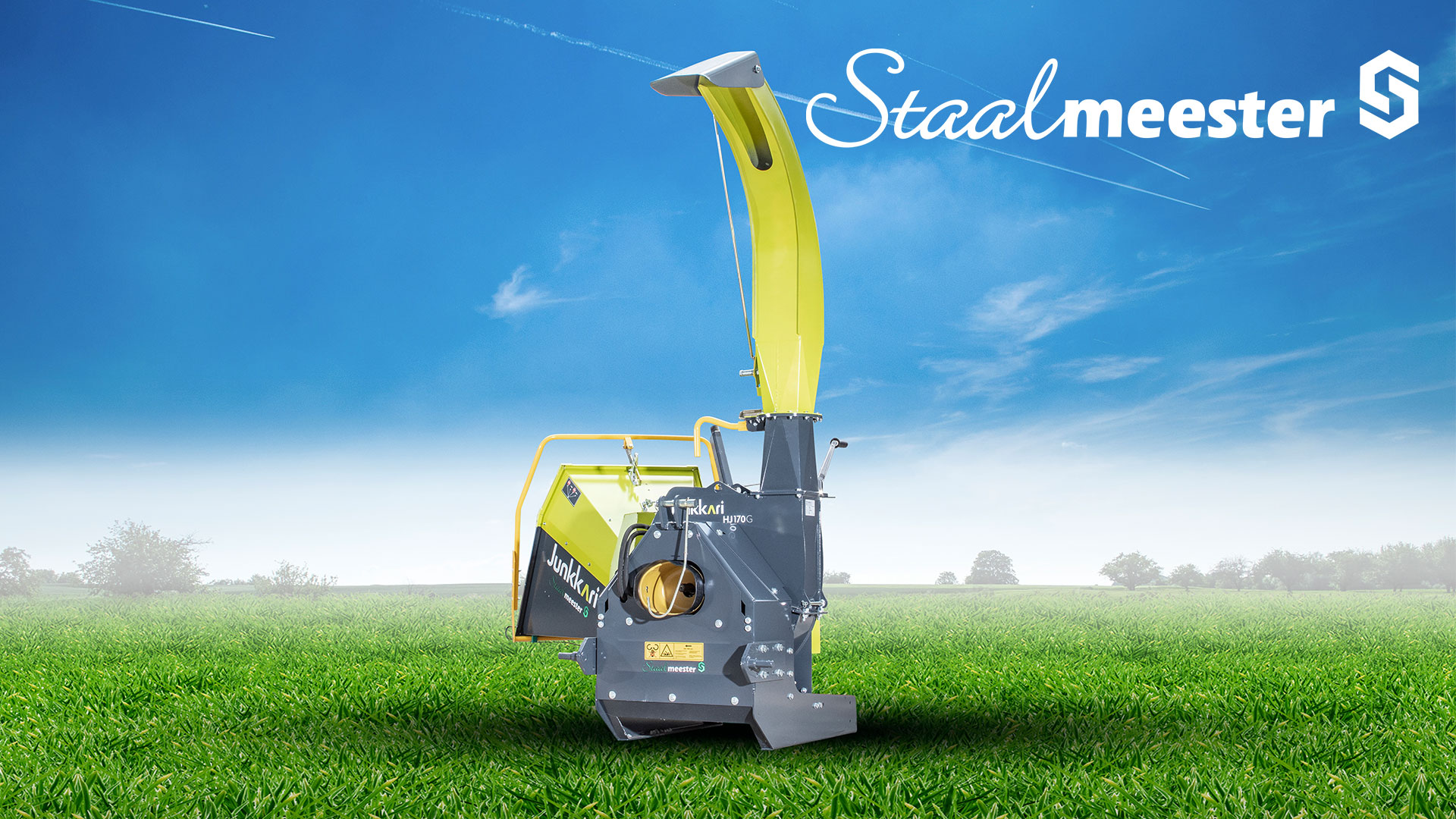

The new Junkkari HJ-170 chipper is suitable for chipping trees less than 17 cm in diameter. As the smaller model, this chipper also has a feeding angle of 45 degrees to the disc.

The new modern design of HJ-170 chipper includes separate frame and several user friendly details. The HJ-170 is equipped with a hydraulic feeding device. It has one feed roller powered by the tractor's hydraulics. The handle is used to control the rotation of the feed roller.

The HJ-170 chipper has four blades that can be adjusted continuously depending on the desired woodchip size. The blow wings will finalise the woodchips and blow the chips effectively to the desired location through an adjustable discharge chute.

Junkkari Chippers Brochure

Product Overview

video thumb
video thumb
Feed opening size 20 x 20 cm
Disc diameter 74 cm
Disc mass 106 kg
Blade count 4
Revolutions 540-1000 r.p.m
Blade setting 3-20 mm
Max wood diameter 17 cm
Chipping capacity 4-8 m³/h *
Power requirement 20-50 kW *
Weight 550 kg
Length in working position 220 cm
Length in transport position 160 cm
Width in working position 160 cm
Width in transport position 160 cm
Height in transport position 240 cm

Additional Info:

Notes:

Blade adjustment, sharpness, blade setting, and size and type of wood to be chipped have a significant effect on the power requirement.

Junkkari Wood Chippers HJ170

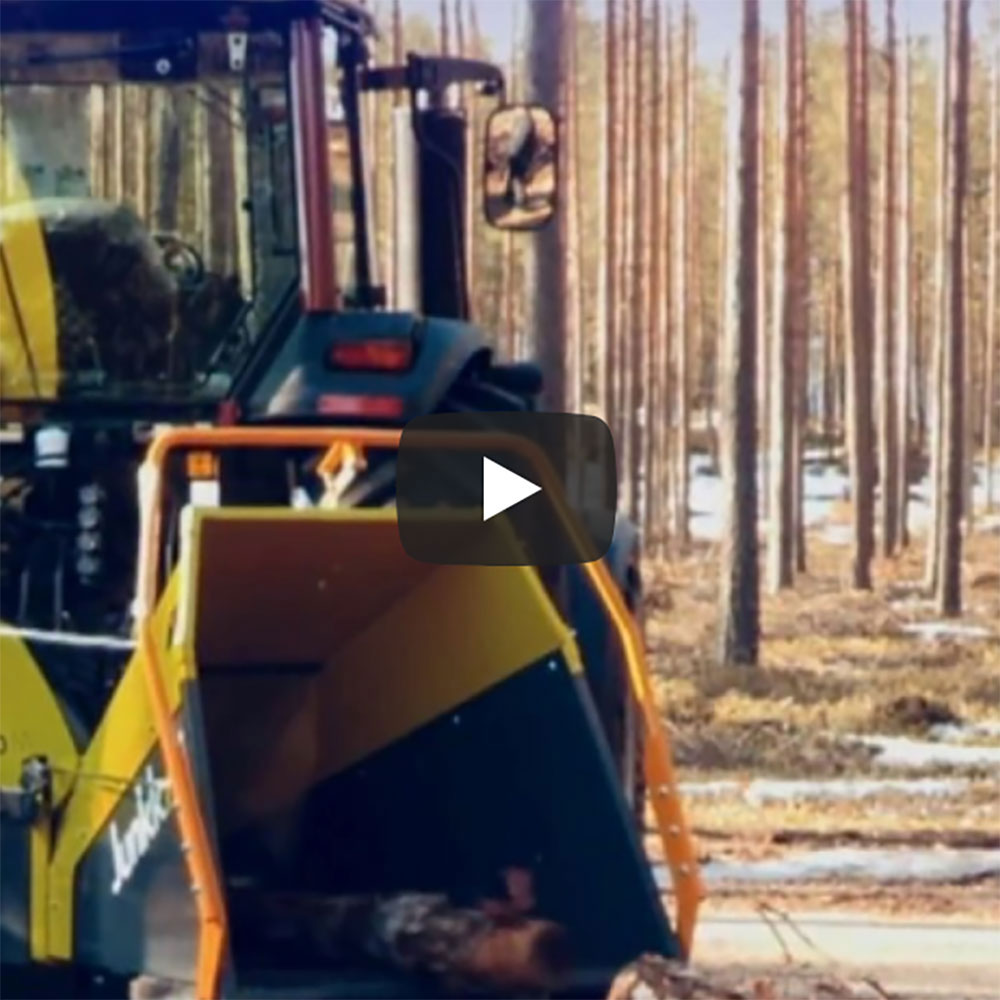

Watch the Junkkari Wood Chippers HJ170 demo video on our YouTube channel.

Junkkari Wood Chippers HJ170 on wheels

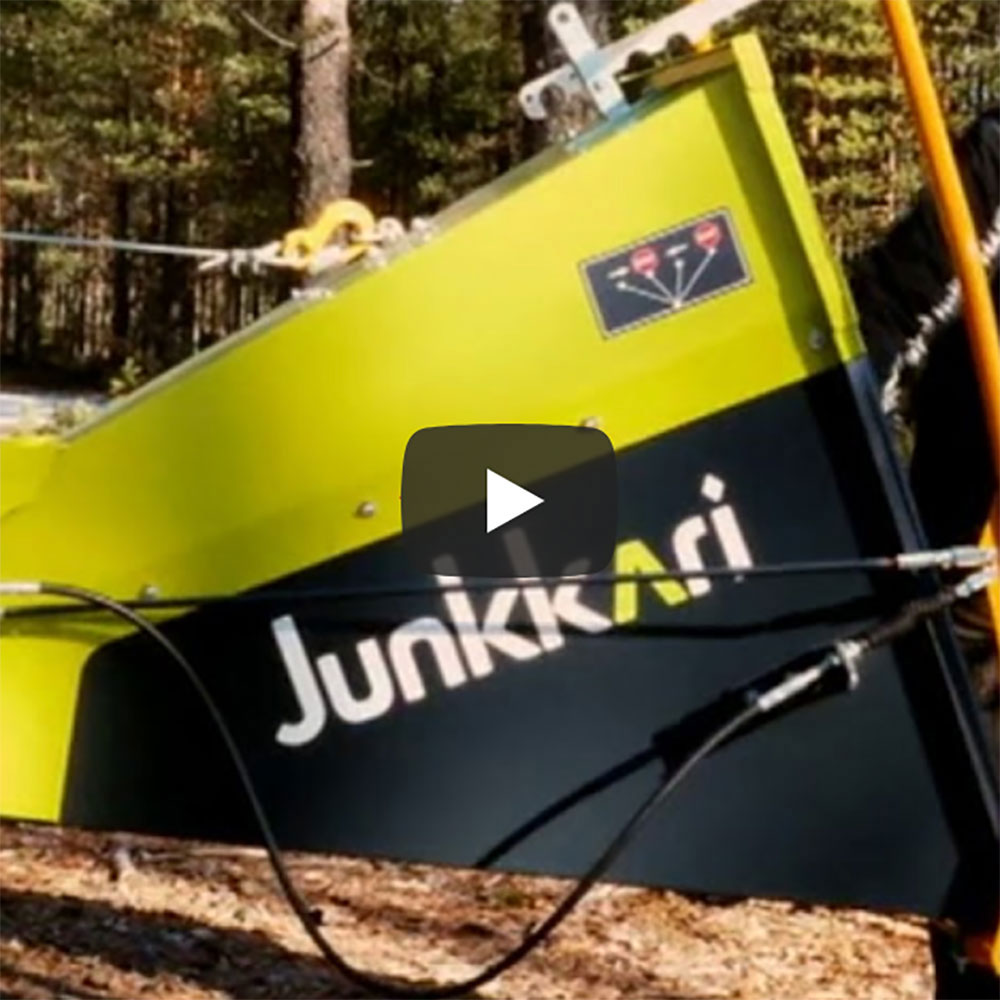

Watch the Junkkari Wood Chippers HJ170 on wheels demo video on our YouTube channel.
