Staalmeester | Pick up Hammer Mill

Staalmeester | Pick up Hammer Mills

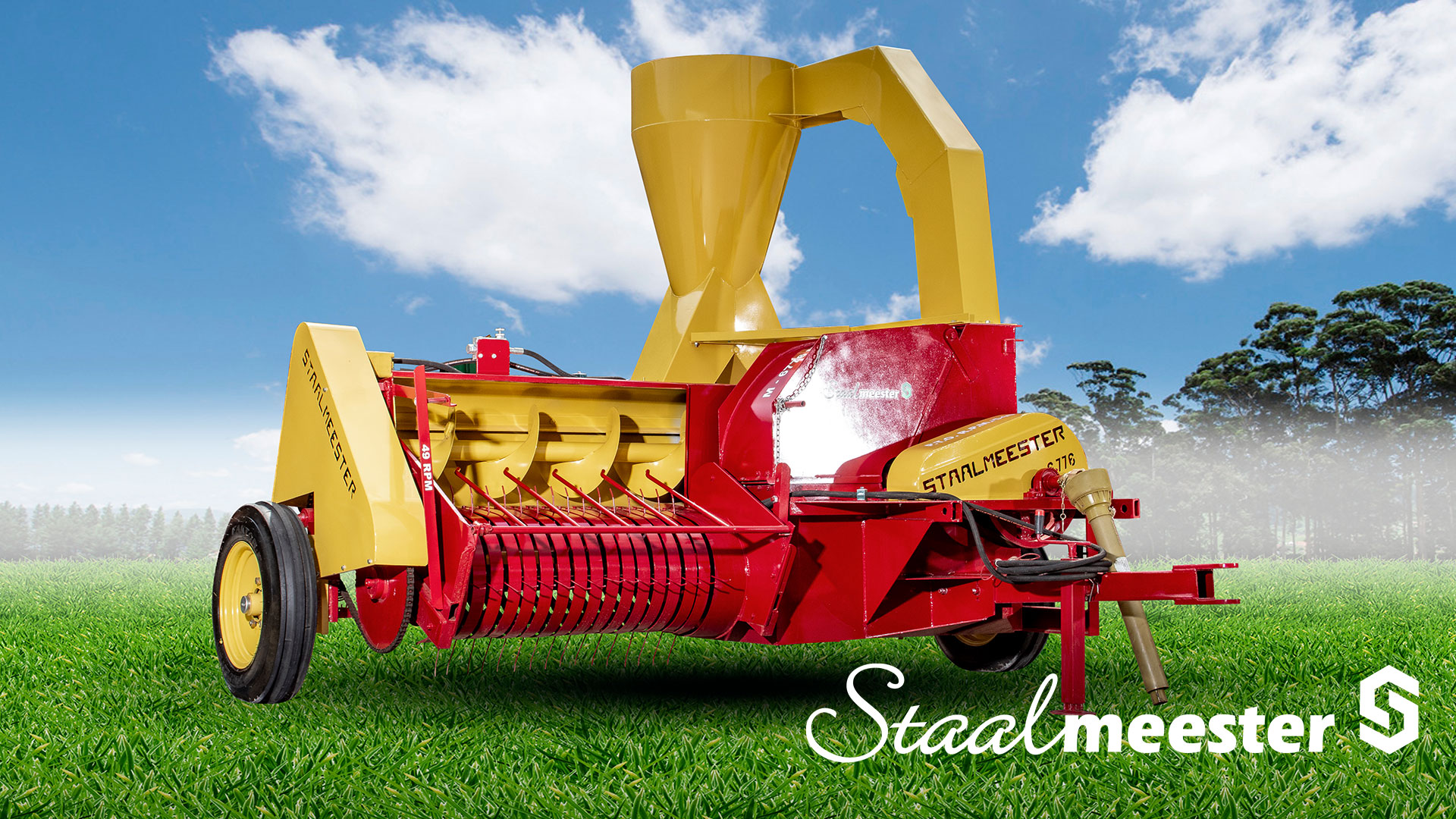

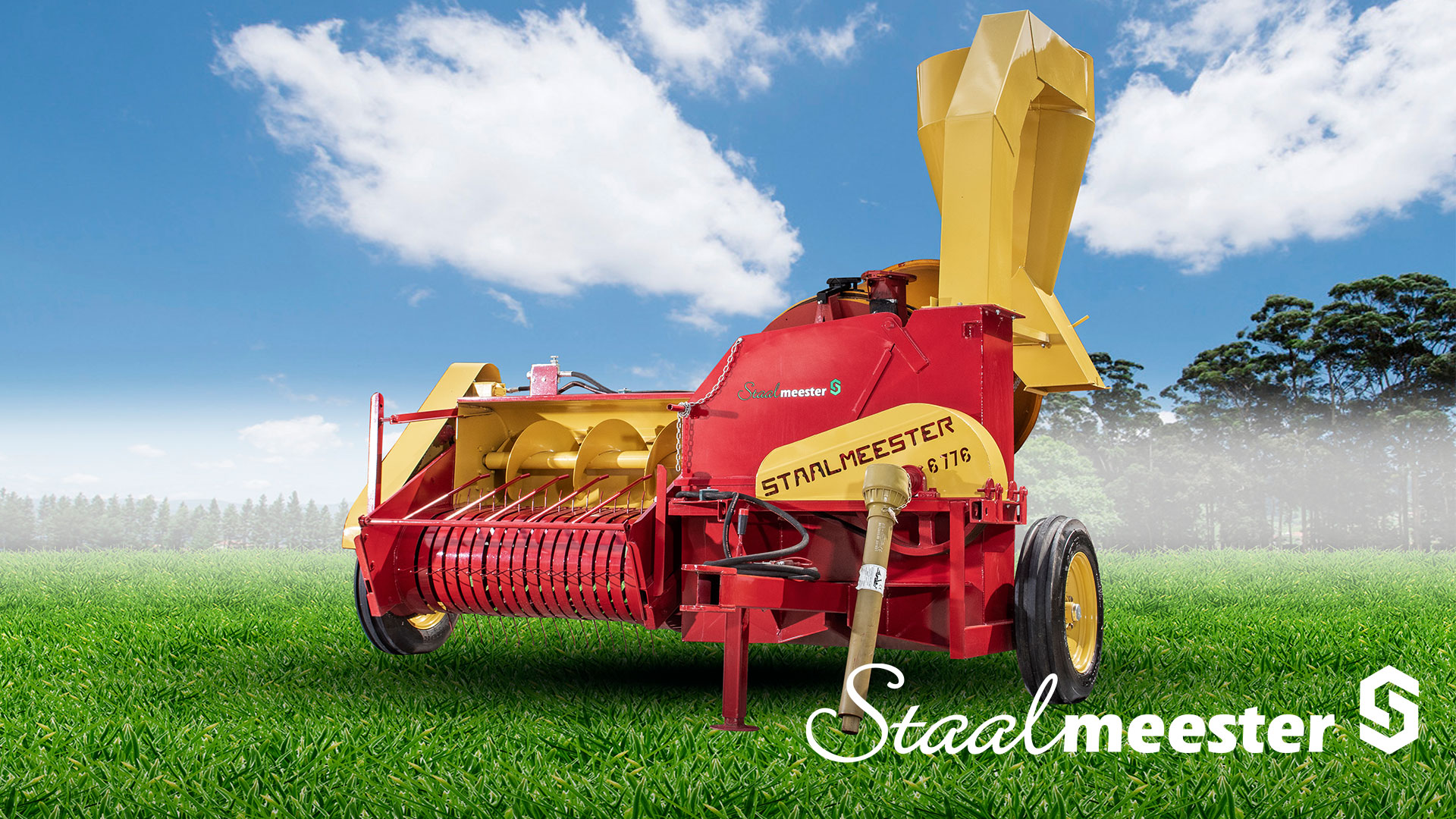

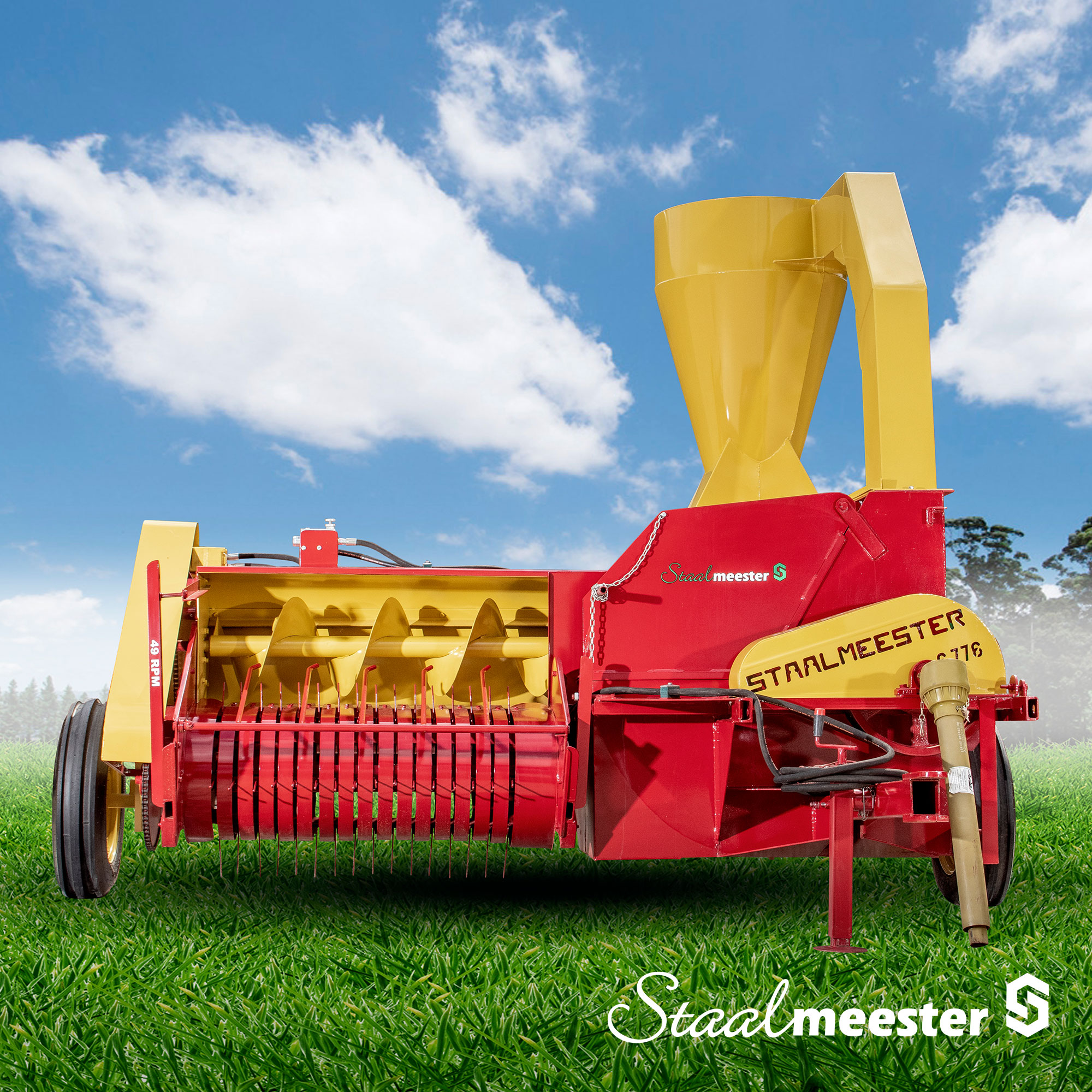

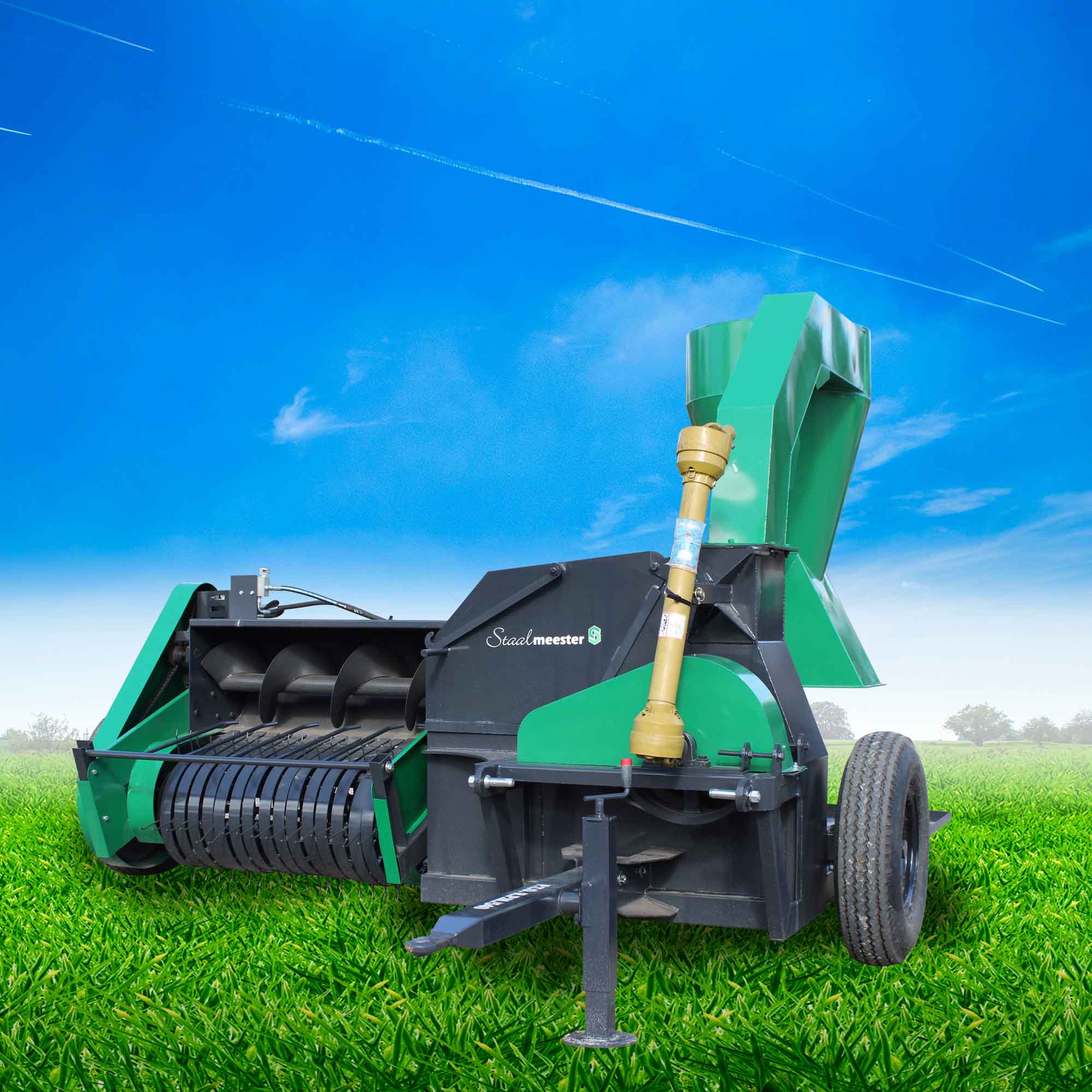

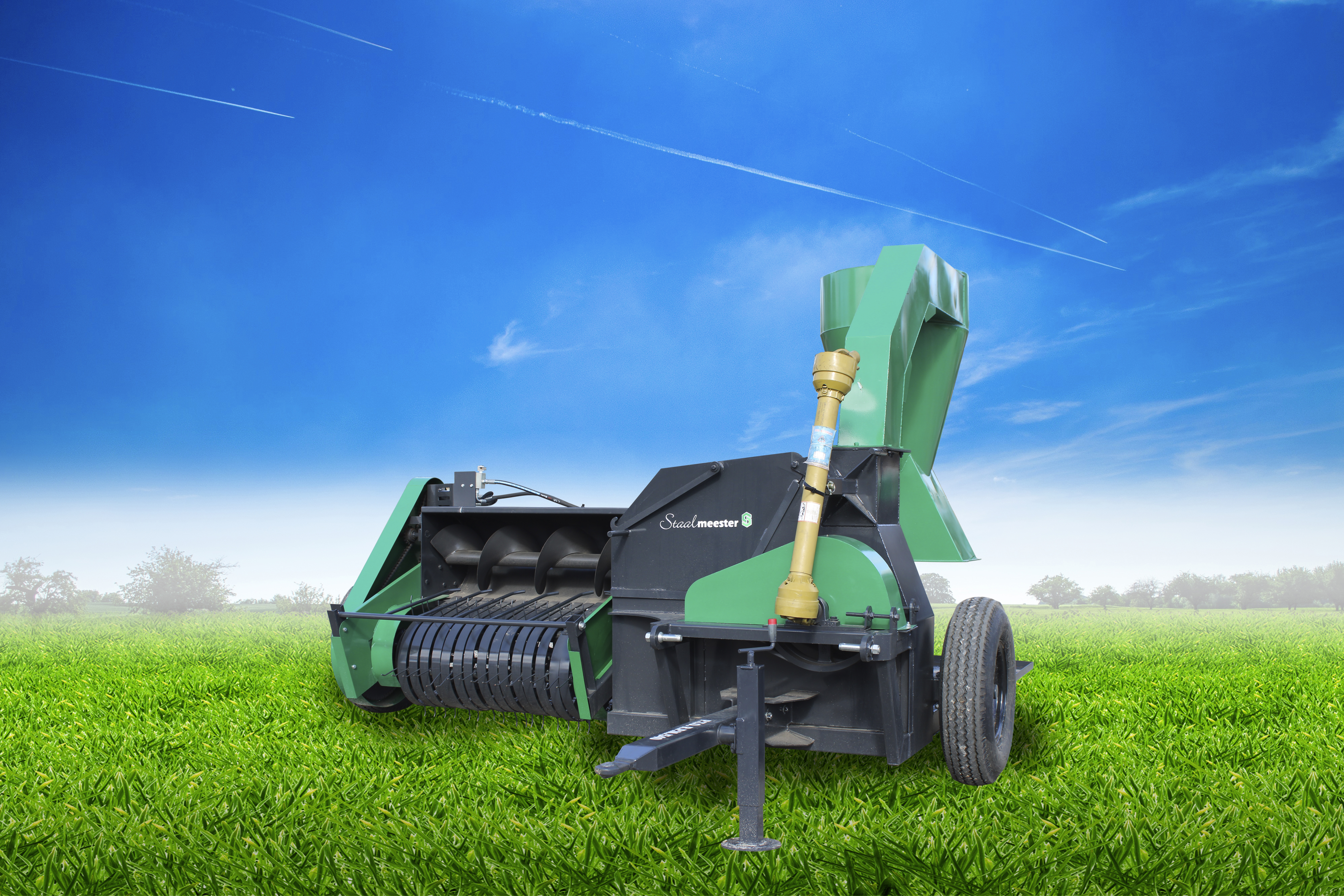

The pickup unit is bolted to the standard 6776 Hammer Mill and is specially designed for South African conditions. The fodder is milled and treated in one process – double handling is therefore entirely eliminated.

Hammer Mill Test Results Pick up Hammer Mill Brochure

Product Overview

video thumb
video thumb
video thumb
video thumb
video thumb
Pickup width 1 300 mm
Width 3 200 mm
Length 1 840 mm
Weight 1 010 kg
PTO power ** 45 – 787 kW
Cam disc bearings 4
Hydraulic motor with control valve
**The recommended tractor size depends on the working conditions, growth and environmental factors.

Additional Info:

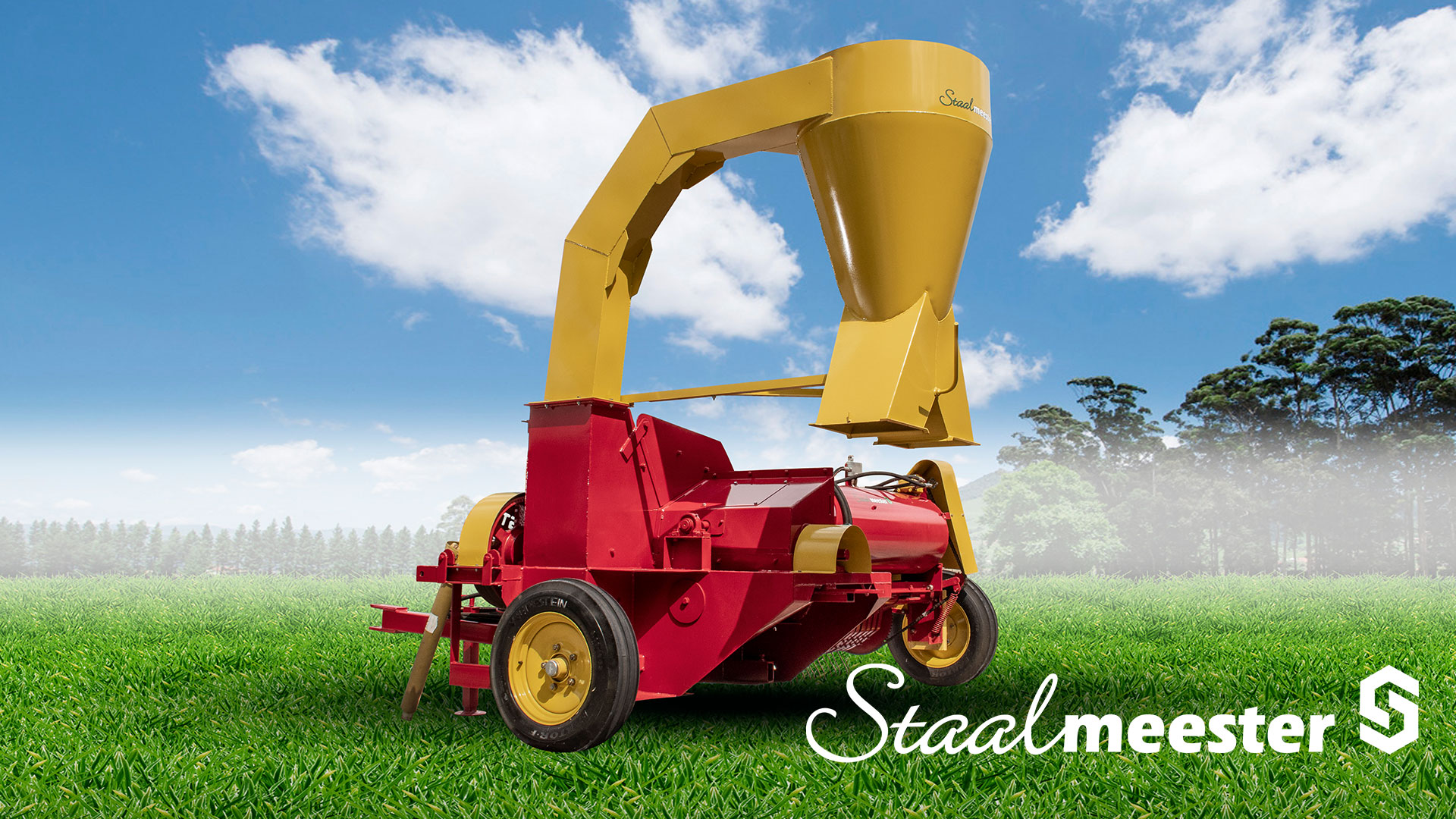

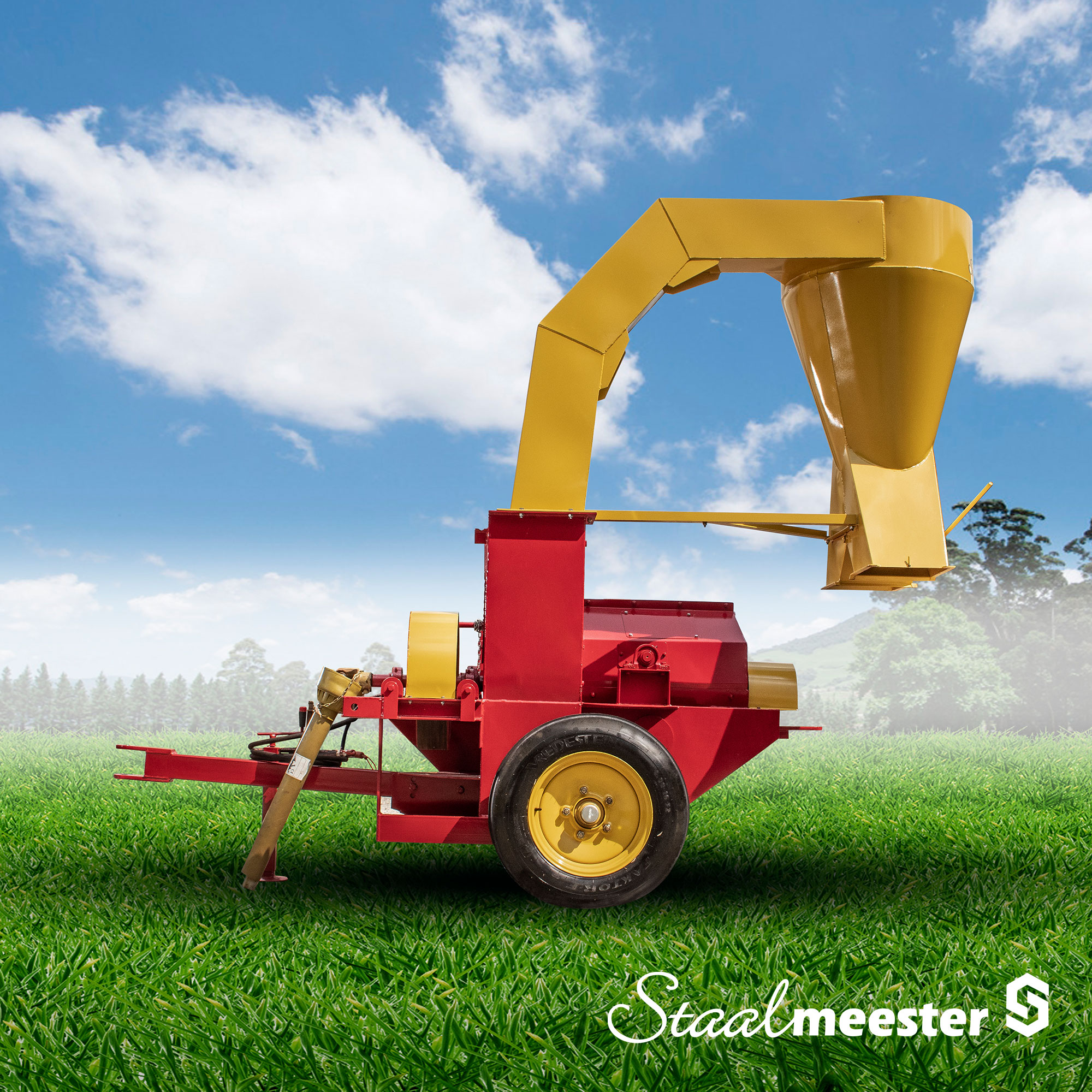

Unscrew the gathering unit and you have an ordinary mill. Material such as Lucerne, grass, sugar cane, peanut hay, wheat straw and maize stalks can be picked up from the swath effortlessly and milled to your specifications.

OPTIONAL: Double cyclone or chute

Capacity with 25mm screen :

  • Lucerne: 11 680 kg/h
  • Shelled maize: 21 800 kg/h

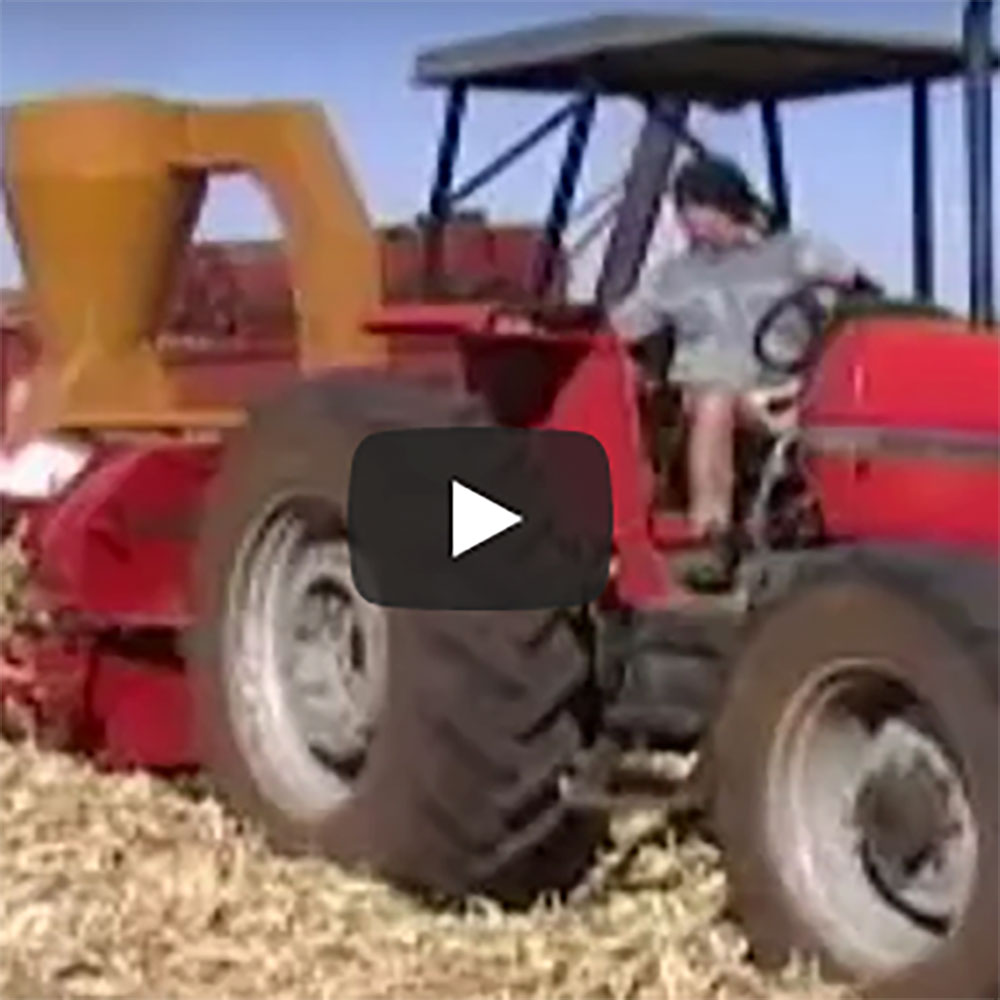

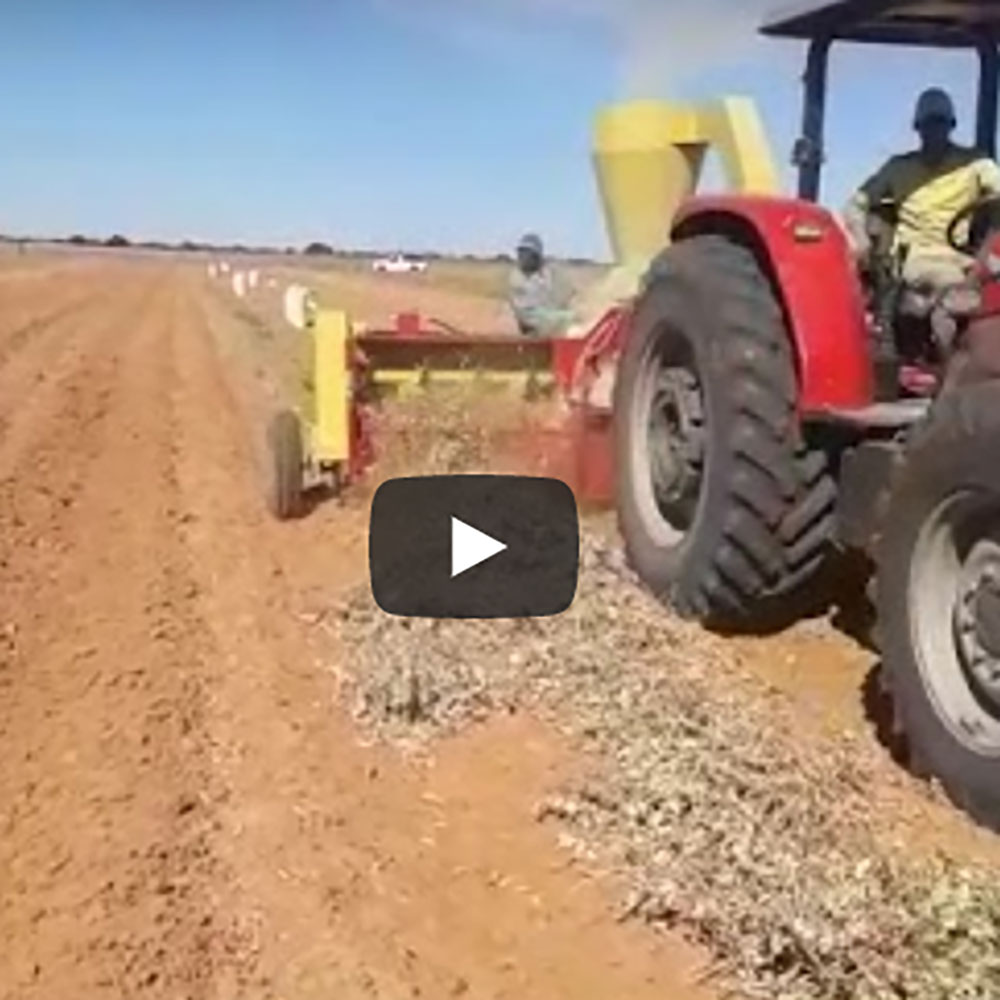

Pick up Hammer Mill

Watch the Pick up Hammer Mill video on our YouTube channel.

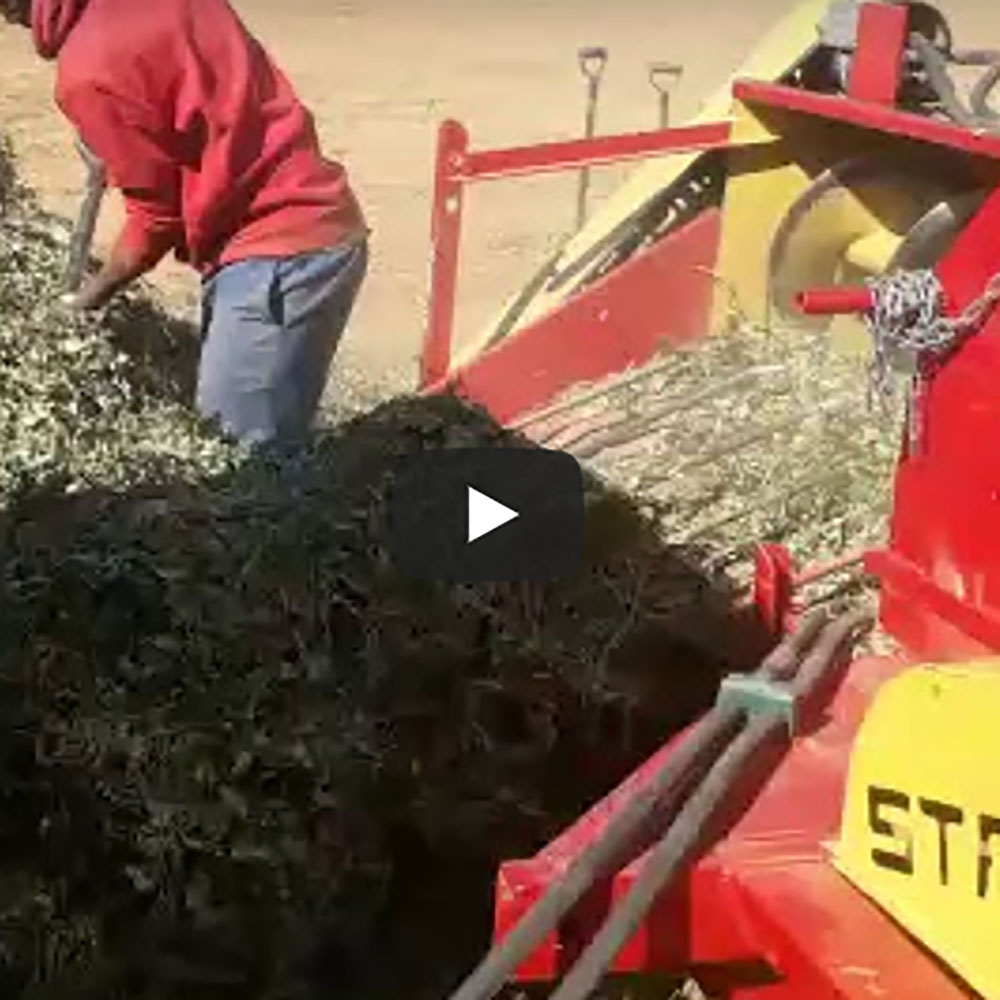

Pick up Hammer Mill

Watch the Pick up Hammer Mill video on our YouTube channel.

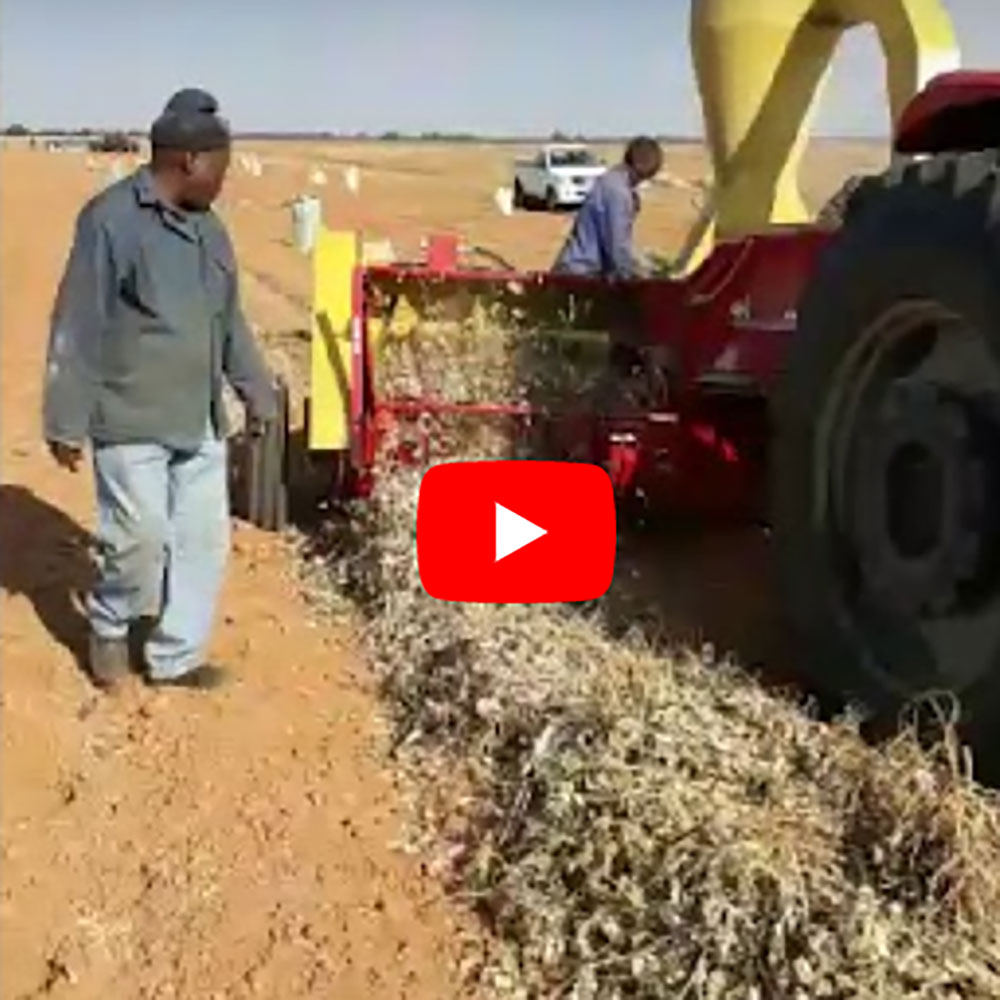

Pick up Hammer Mill

Watch the Pick up Hammer Mill video on our YouTube channel.

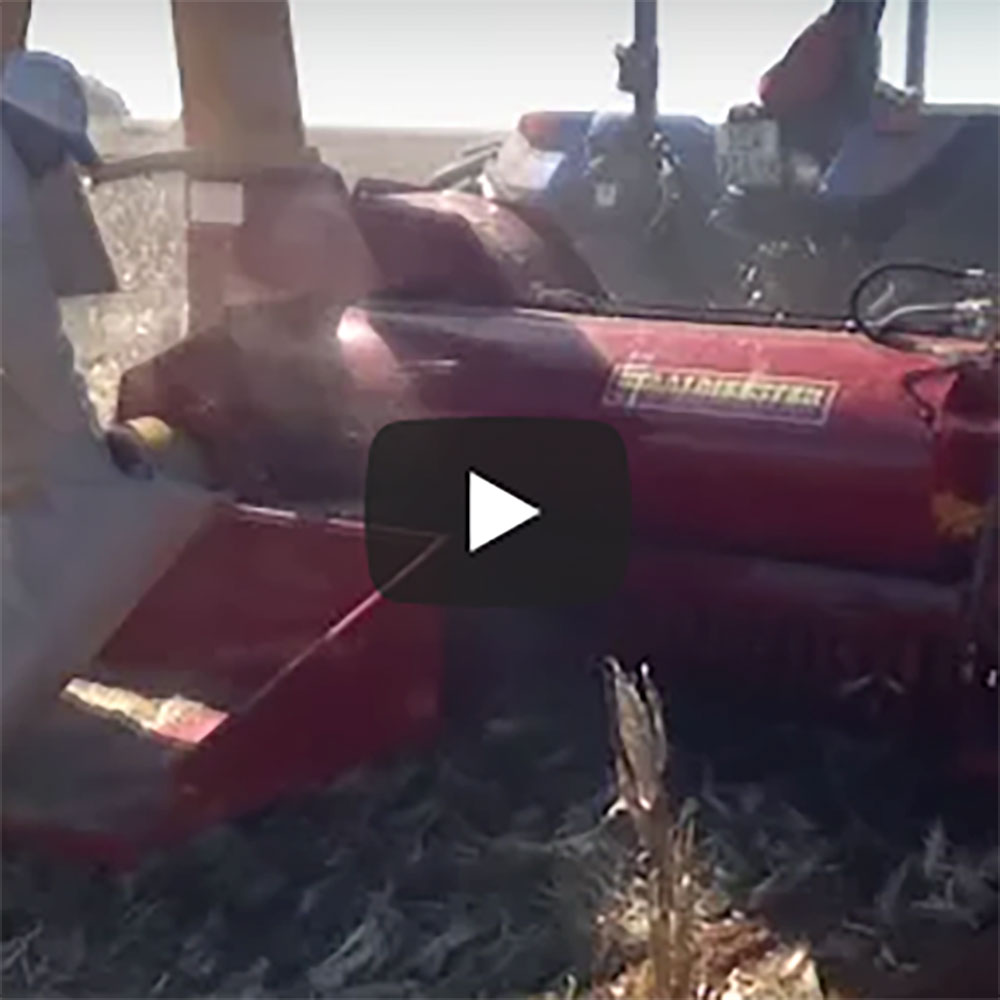

6776 Pick up Hammer Mill on maize
