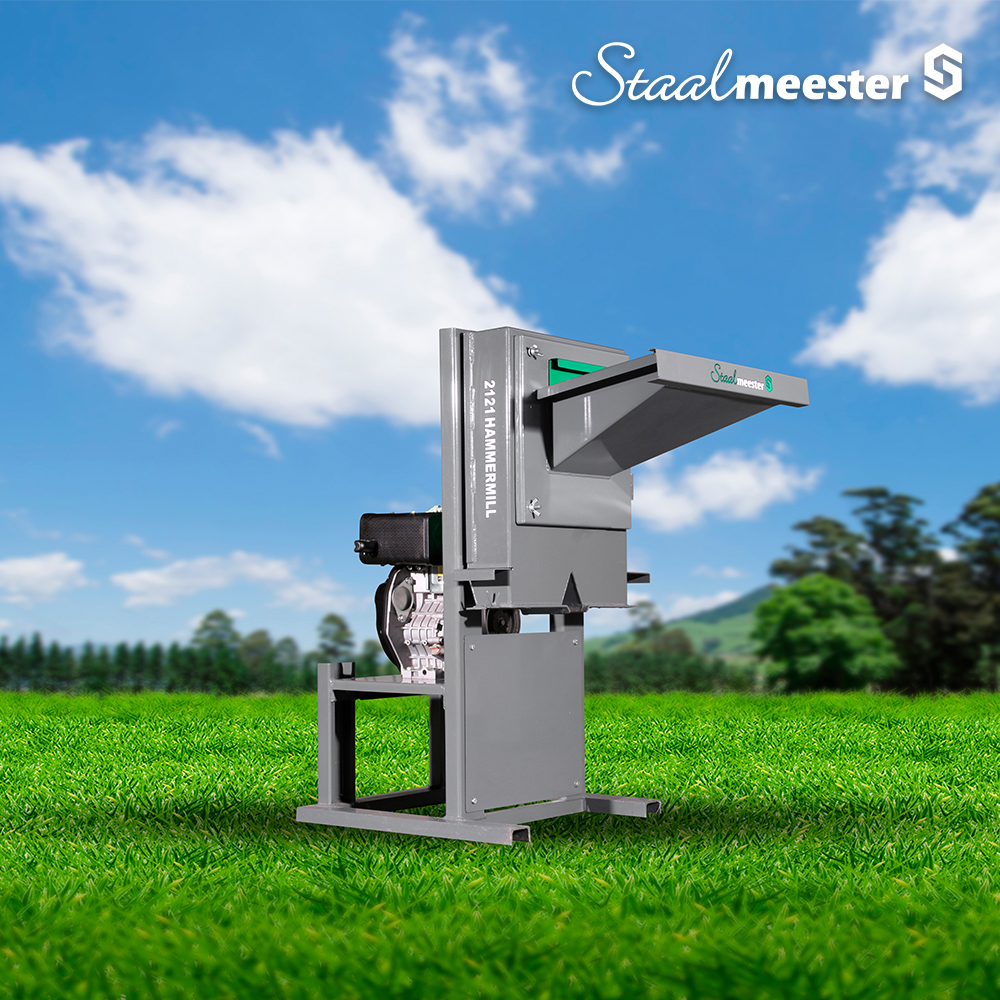

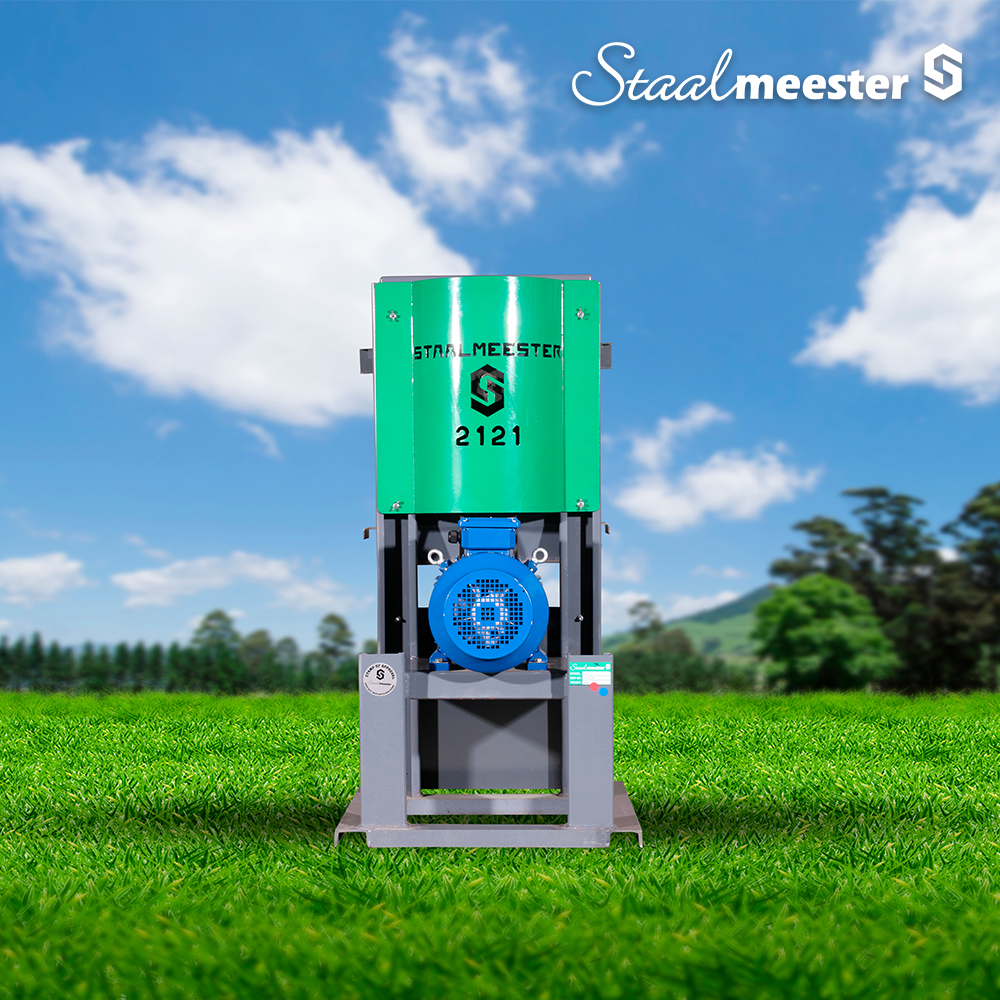

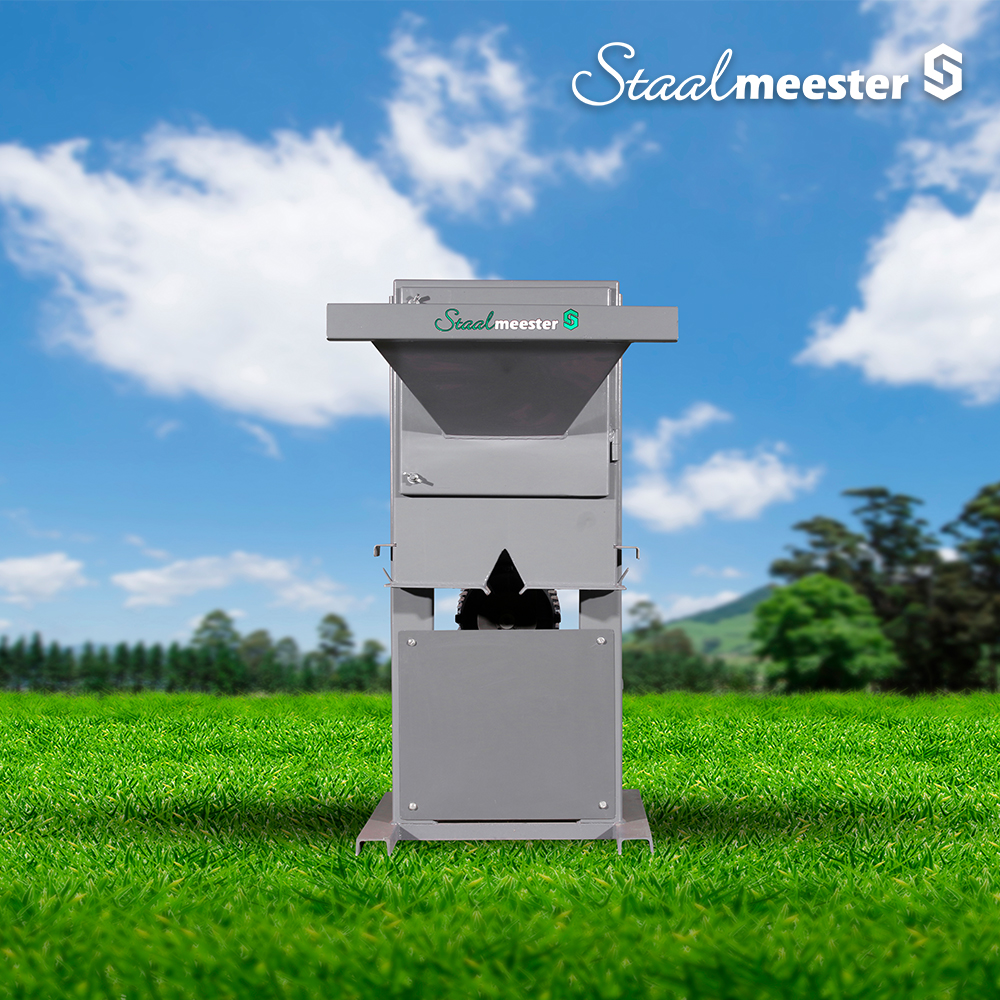

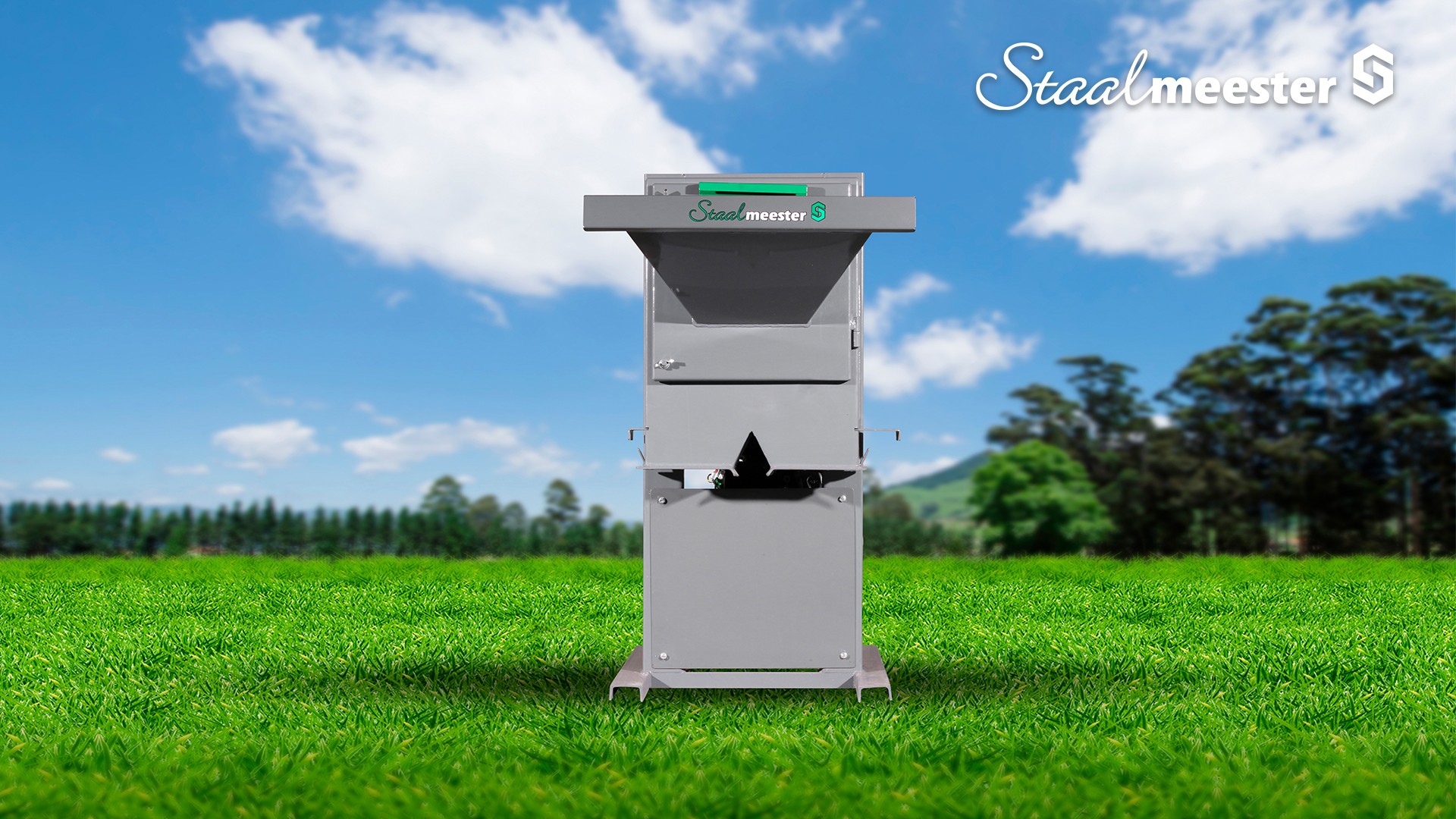

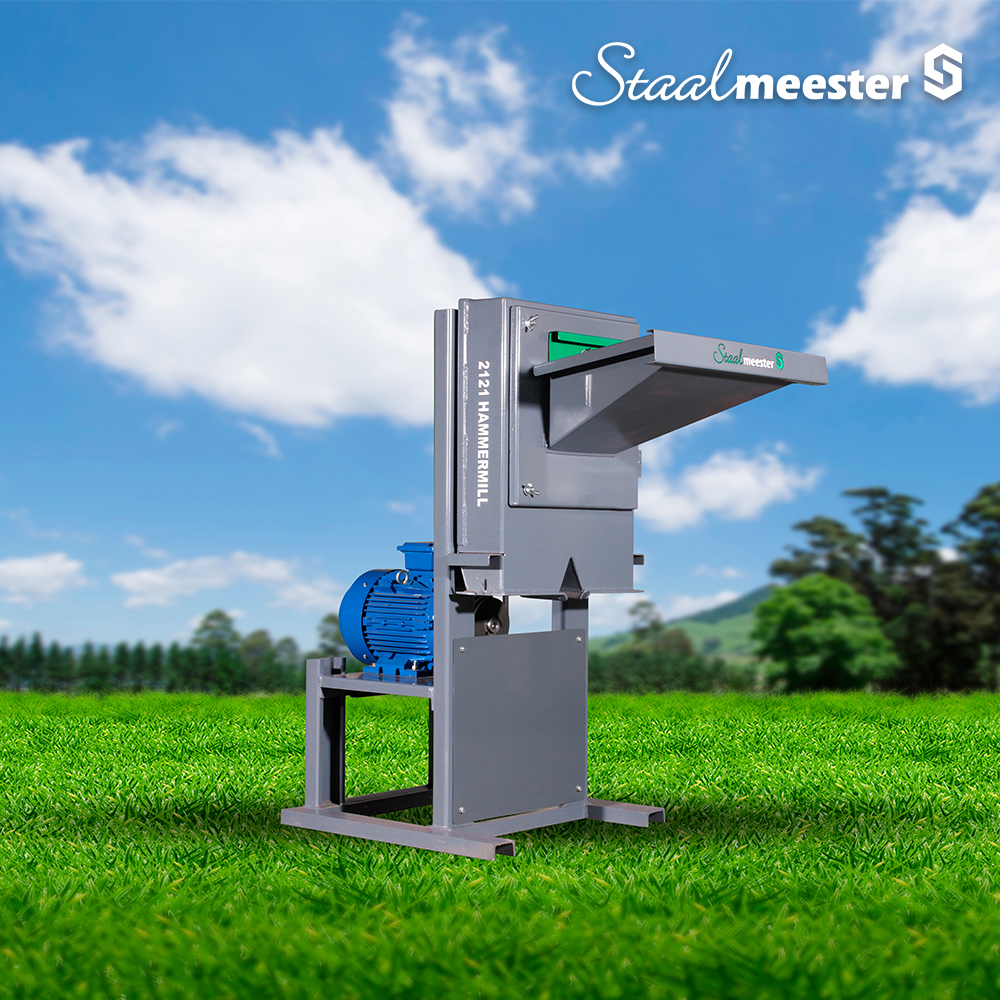

Staalmeester | 2121 Hammer Mill

Staalmeester | 2121 Hammer Mill

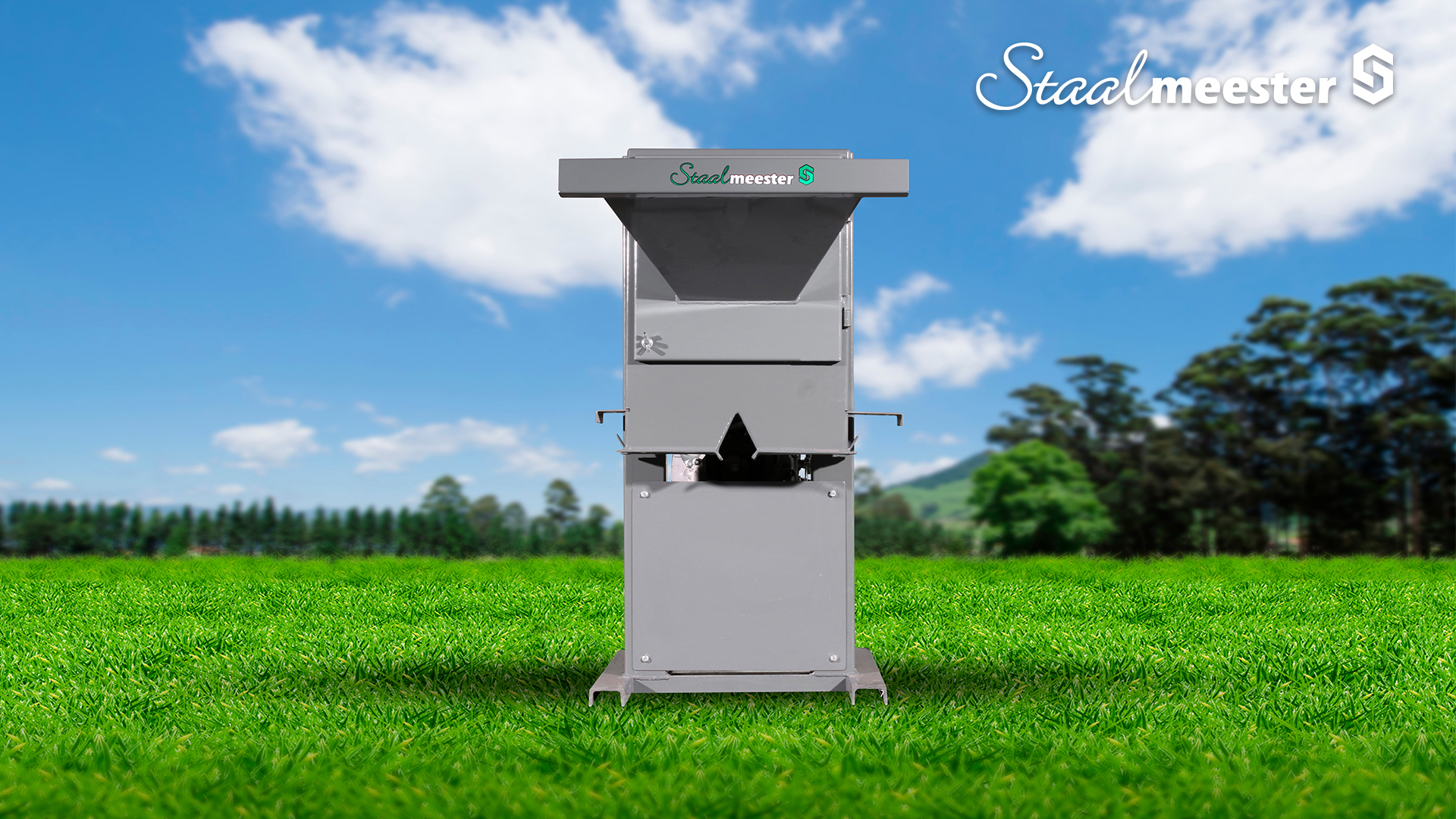

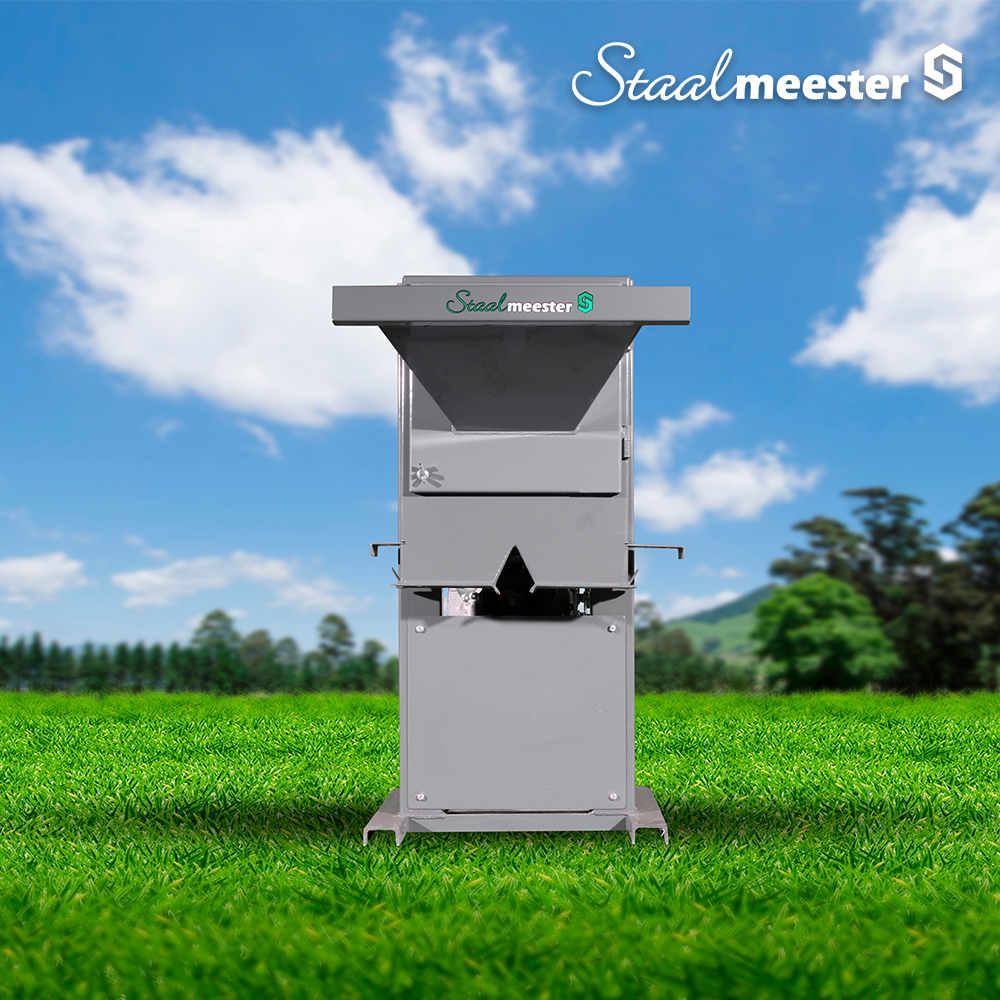

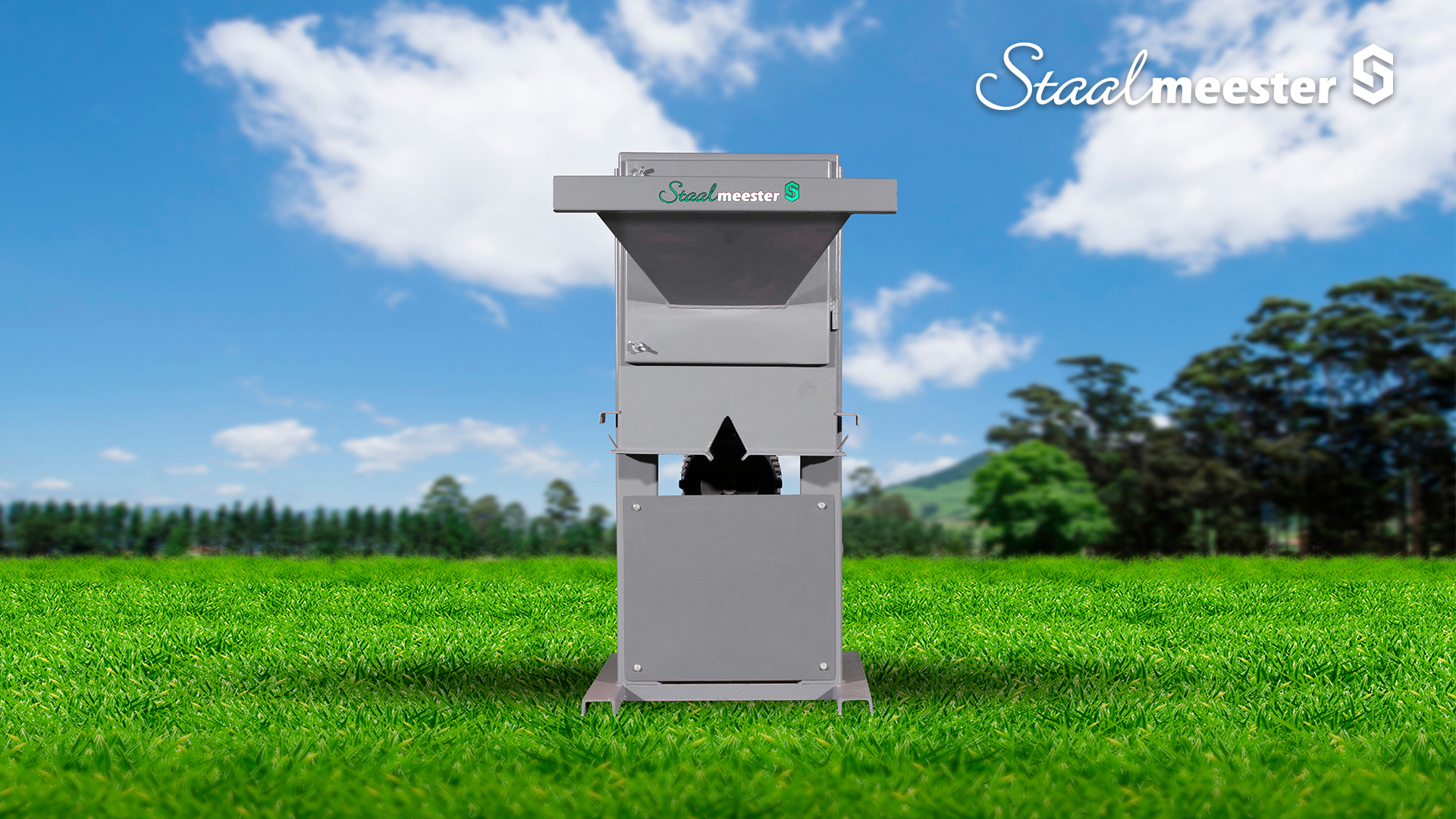

The 2121 produces affordable stock feeds. This is a dust free hammer mill with an adjustable closing plate and comfortable feeding tray. The hammer mill uses gravity for effective milling.
The 2121 has an effective 360 ° effective milling area, this increases the quality of the feed and has a much larger capacity.

Operator Manual Hammermill Brochure

Product Overview

Gallery
Specifications

2121 Hammer Mill

video thumb — 2121 Hammer Mill

Rotor Ø	310 mm
Rotor Shaft	30 mm
Housing Width	180 mm
Housing Ø	330 mm
Milling Sieve	360°
Motor Speed	2900 r/pm
Rotor Speed	4400 r/pm
kW Required	5 - 7 kW
Effective Screen area	1550 cm²
Weight with motor	223 kg
Weight without motor	154 kg

Additional Info:

Product Info:

Features:

Screen sizes that vary from 0.8 mm up to 70 mm.
Rotor fitted with 4 hardened blades and v-shaped cutting tip.
Low power consumption.
1 year warranty.
Ideal for the production of “super maize meal”
Can be used to mill grain, lucerne and grass types.

Power options available :

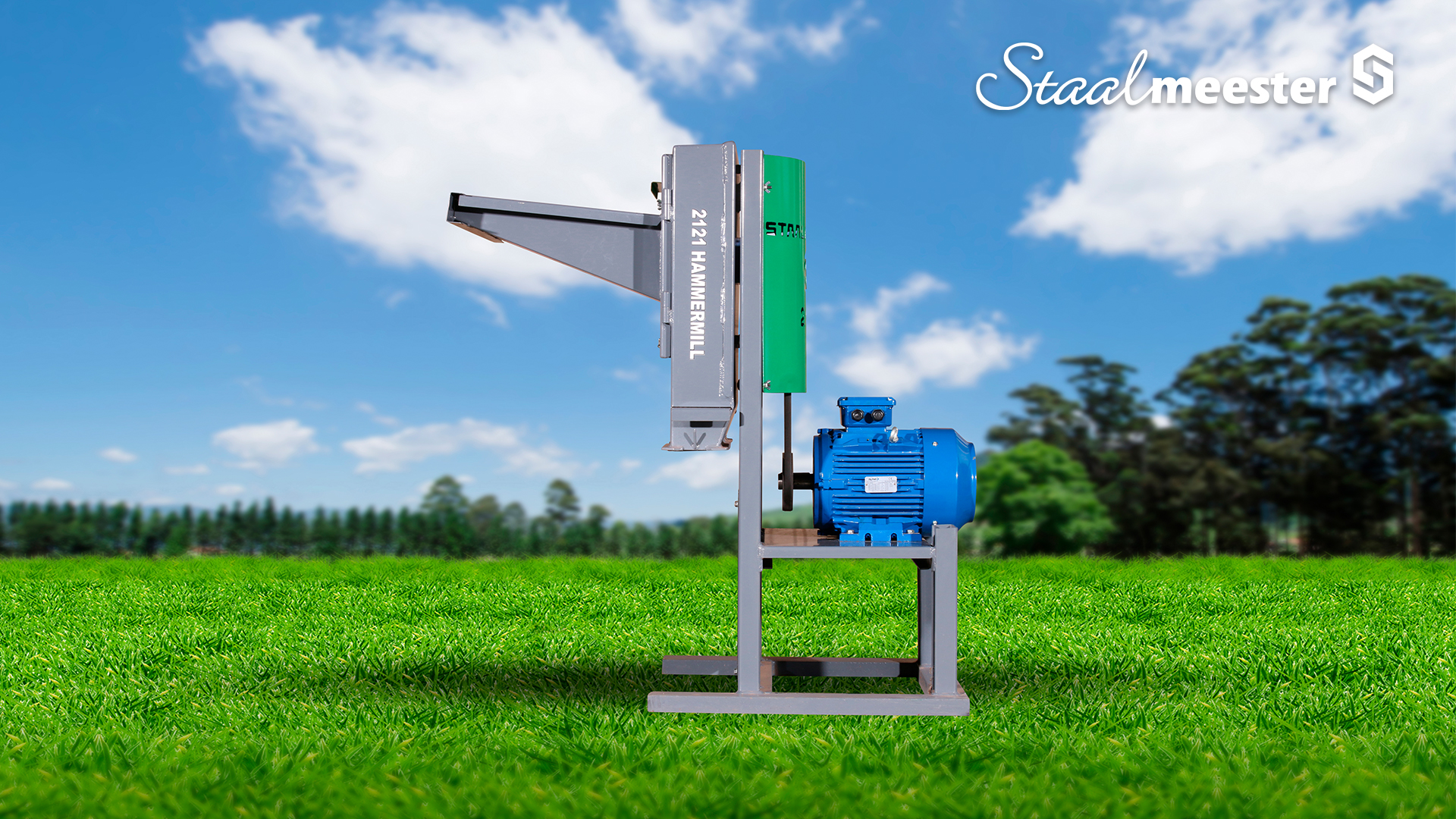

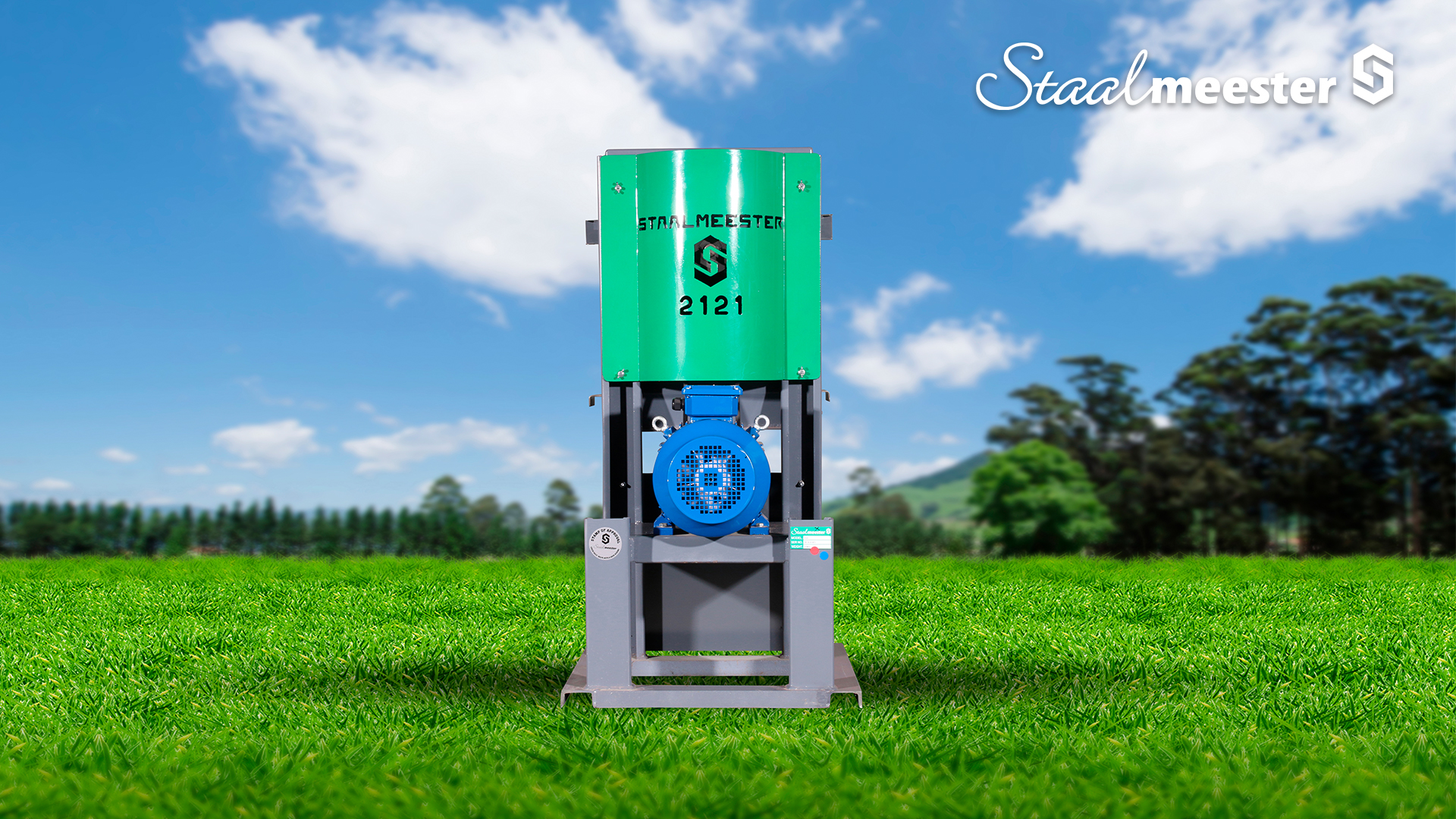

Electric 5.5 kW
Electric 7.5 kW

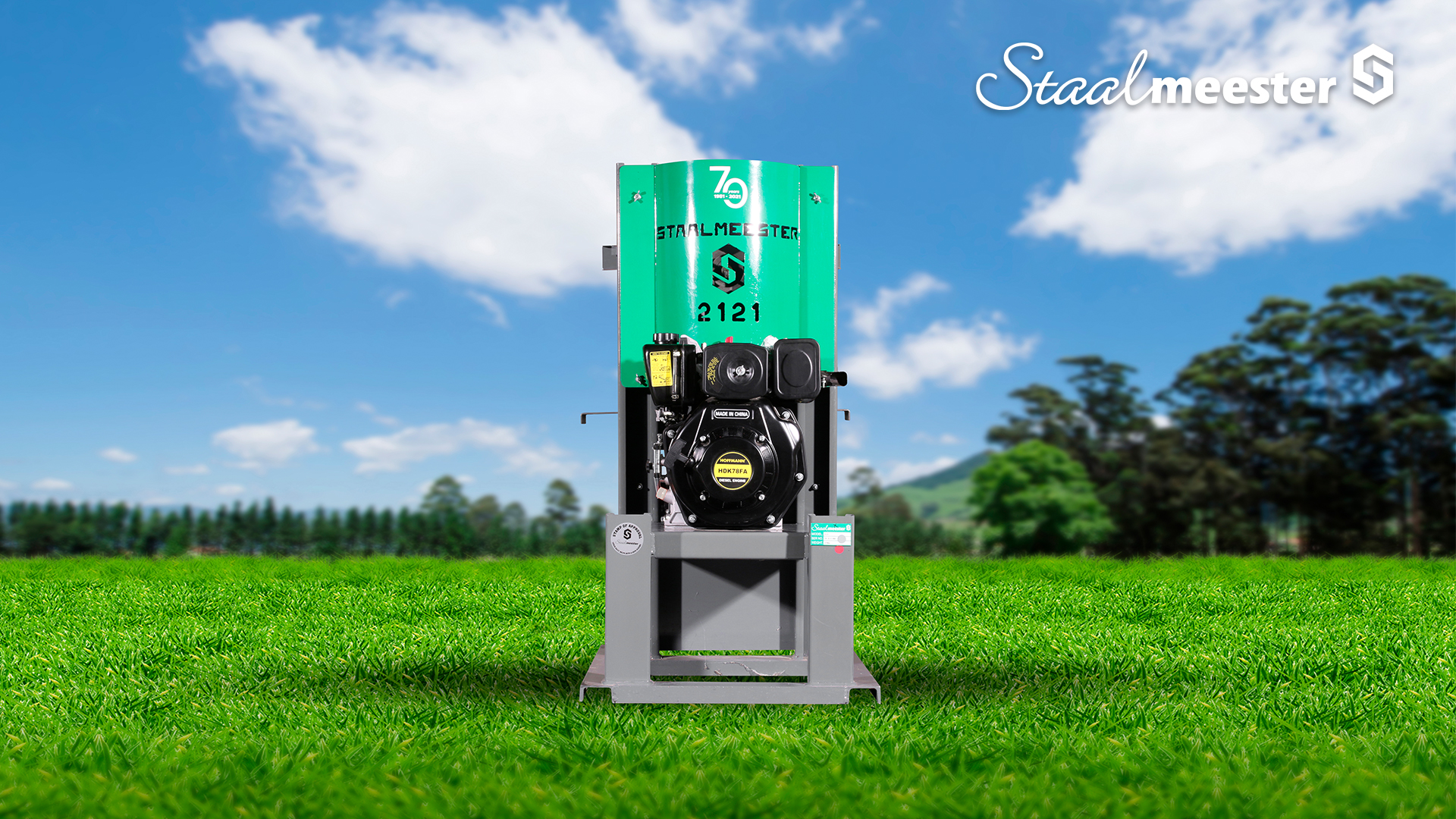

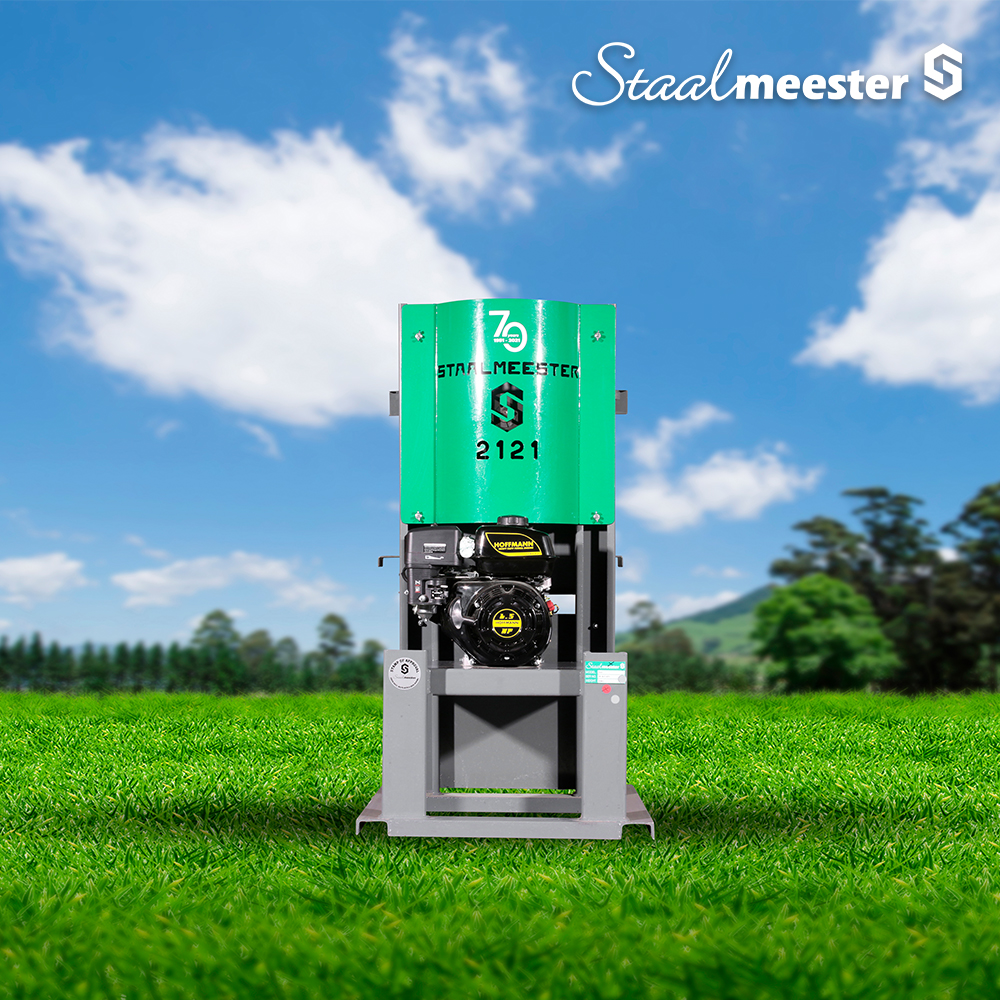

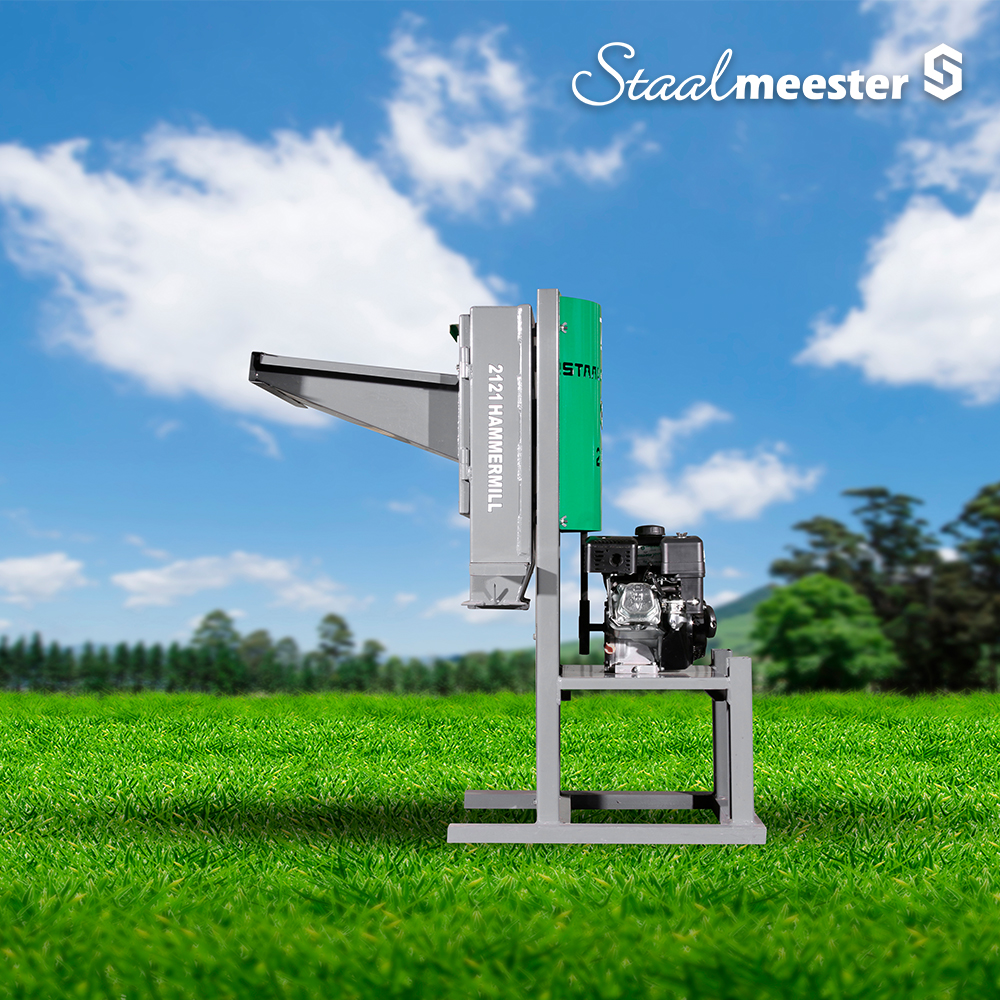

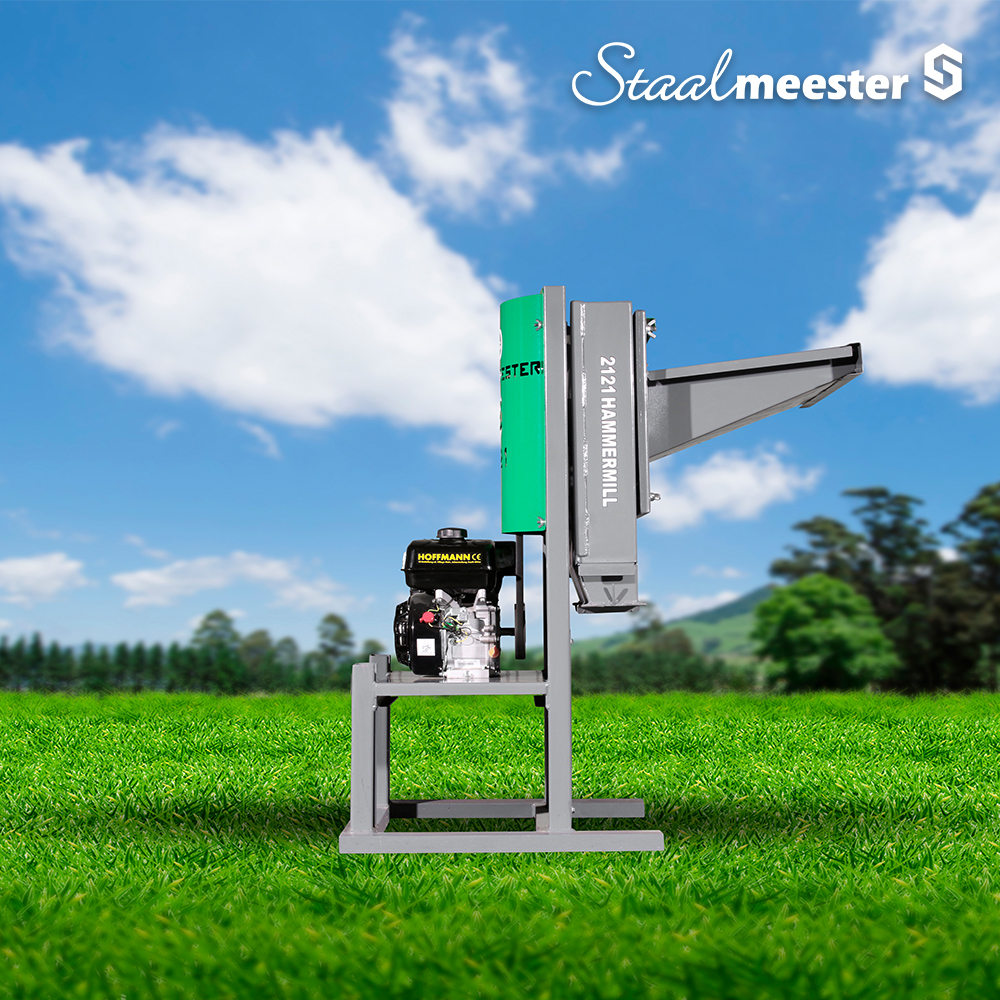

Petrol 6.5 HP

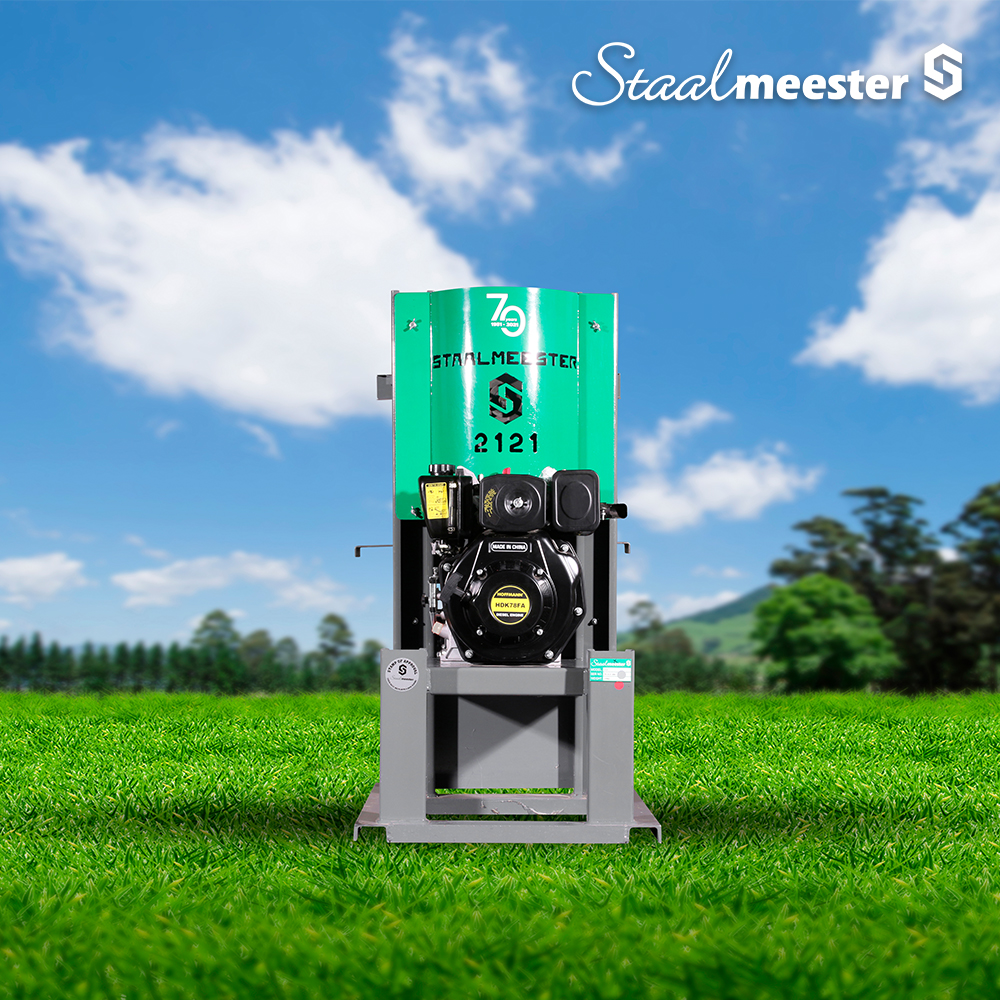

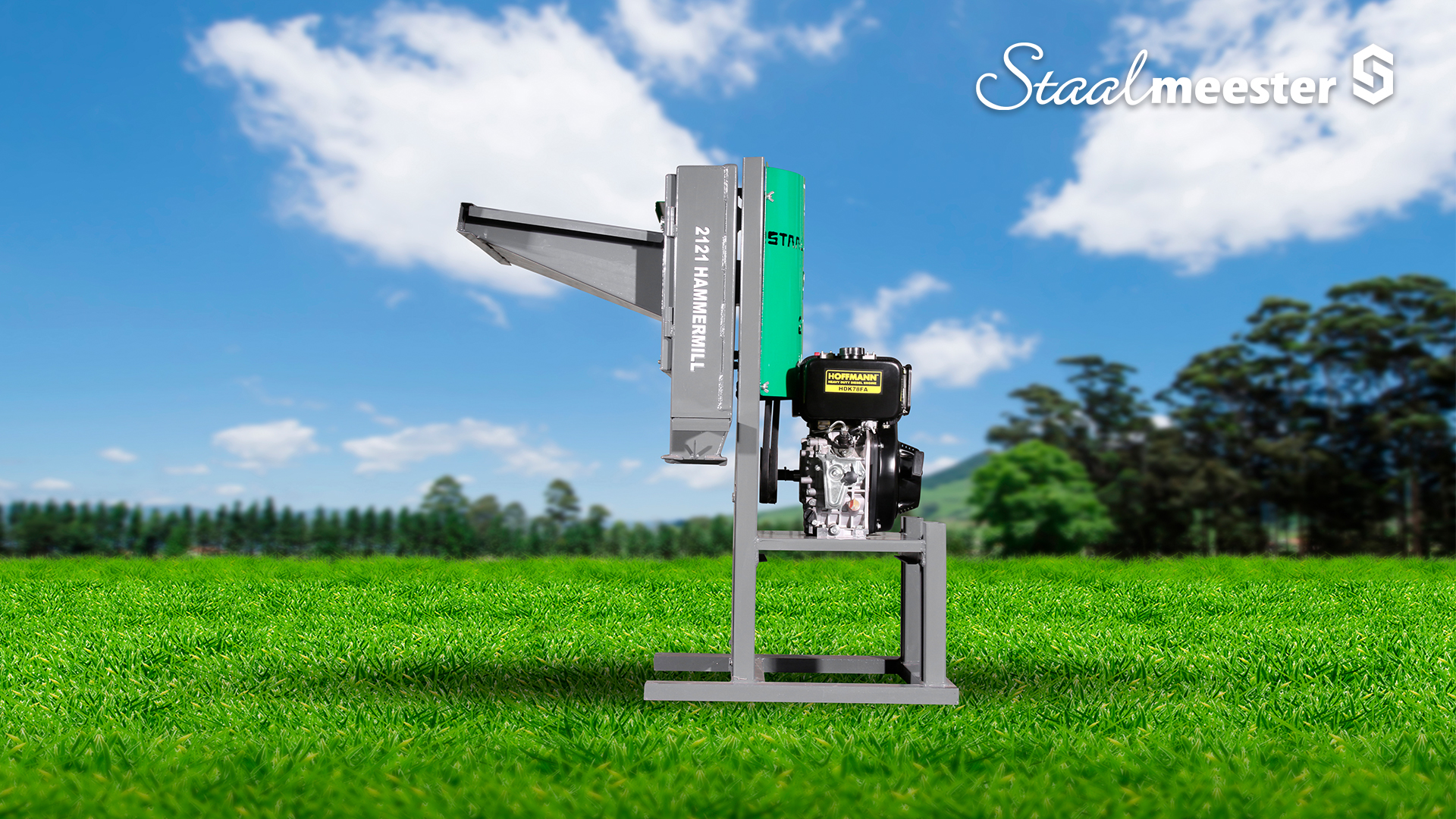

Diesel 7.5 kW
Without motor

Hammermill Test Results

Videos

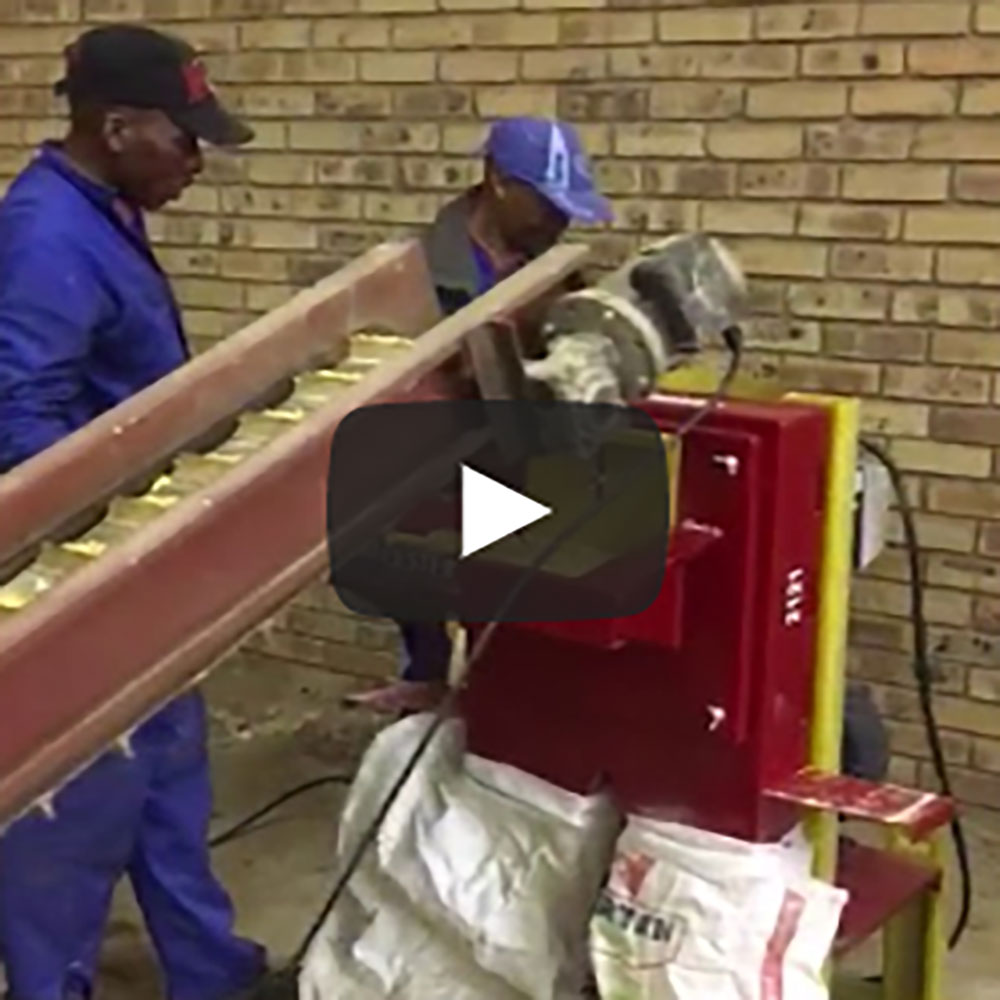

2121 Hammermill Dust free on maize

Watch the 2121 Hammermill Dust free on grass video on our YouTube channel.

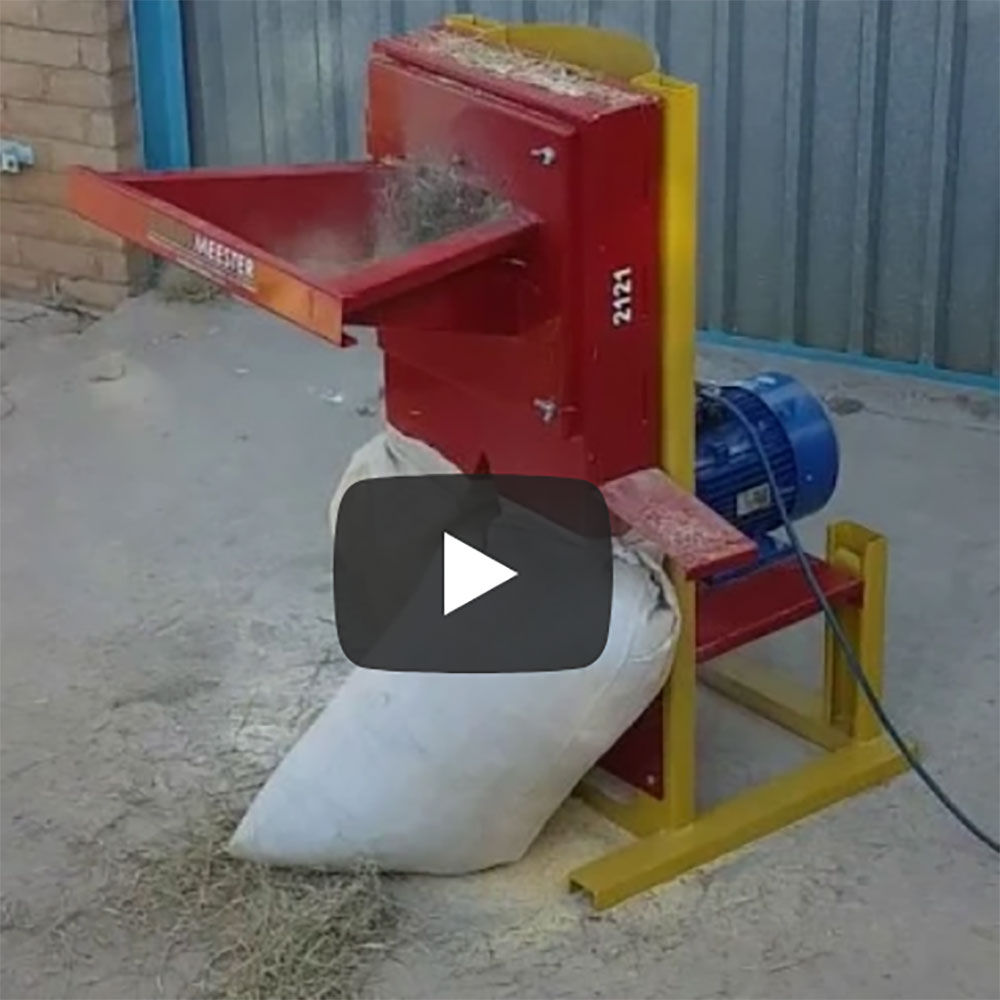

2121 Hammermill Dust free on grass

Watch the 2121 Hammermill Dust free on grass video on our YouTube channel.

2121 Hammermill Dust free on maize

Watch the 2121 Hammermill Dust free on maize video on our YouTube channel.

2121 Hammermill on coal

Watch the 2121 Hammermill on coal video on our YouTube channel.

Hammermill Playlist

Watch the Hammer Mill playlist on our YouTube channel.

Staalmeester | 2121 Hammer Mill Variations

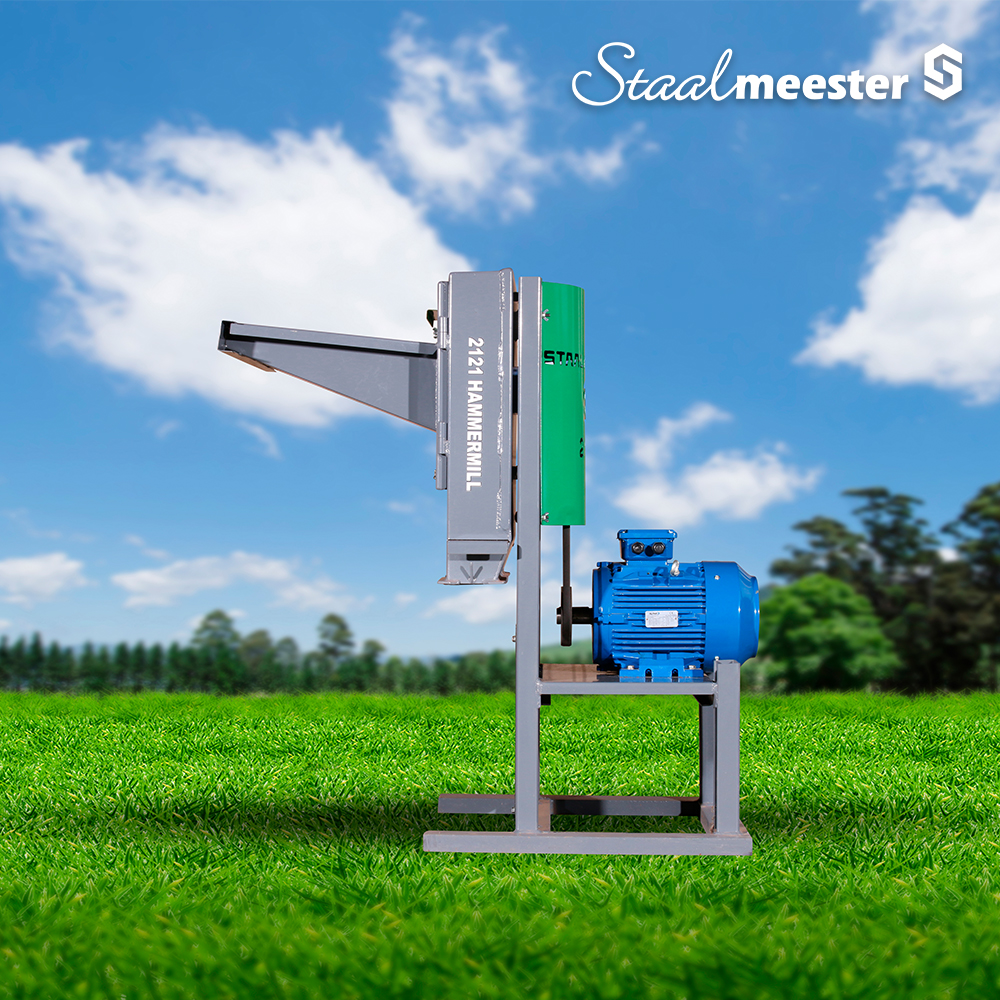

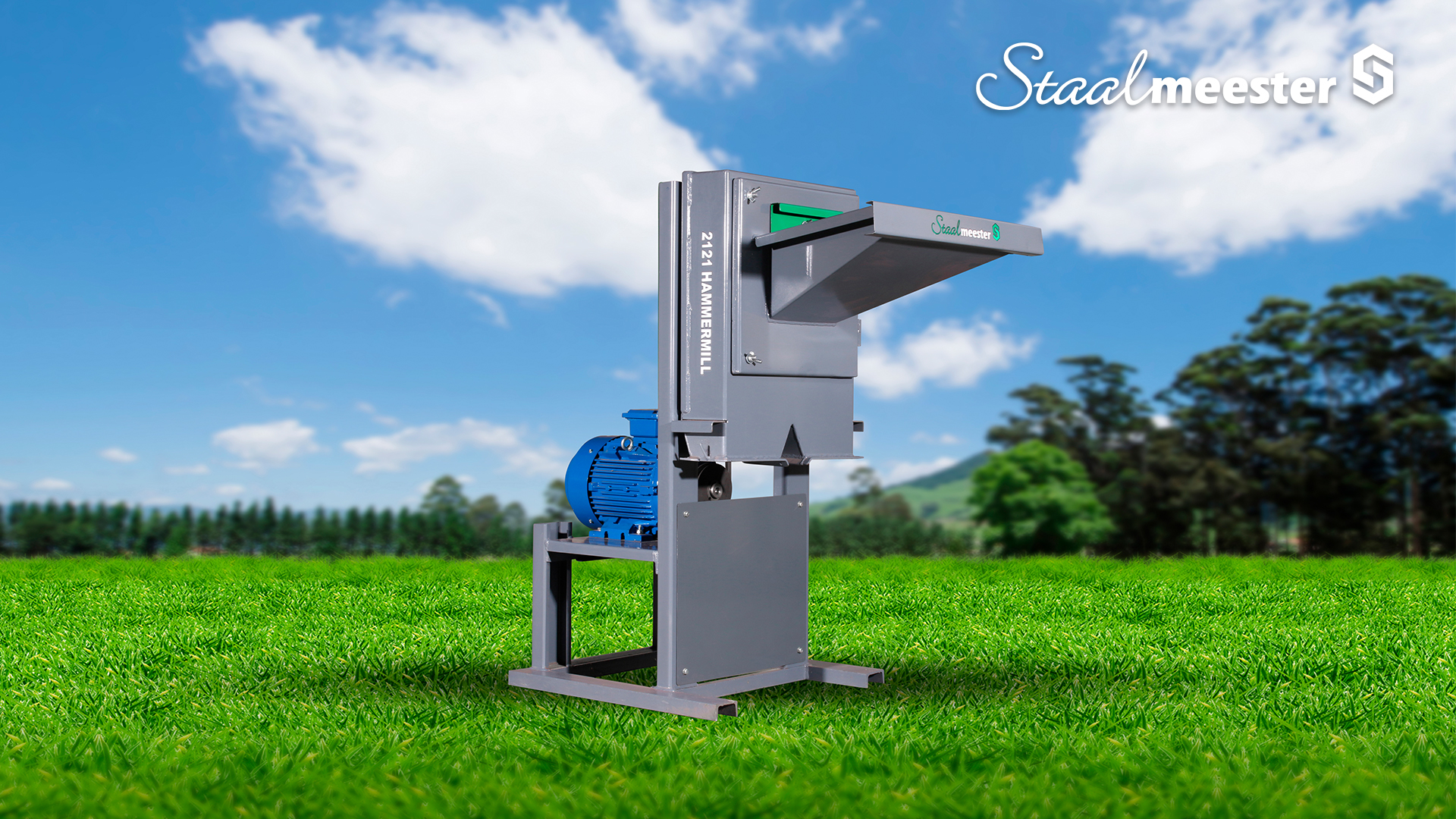

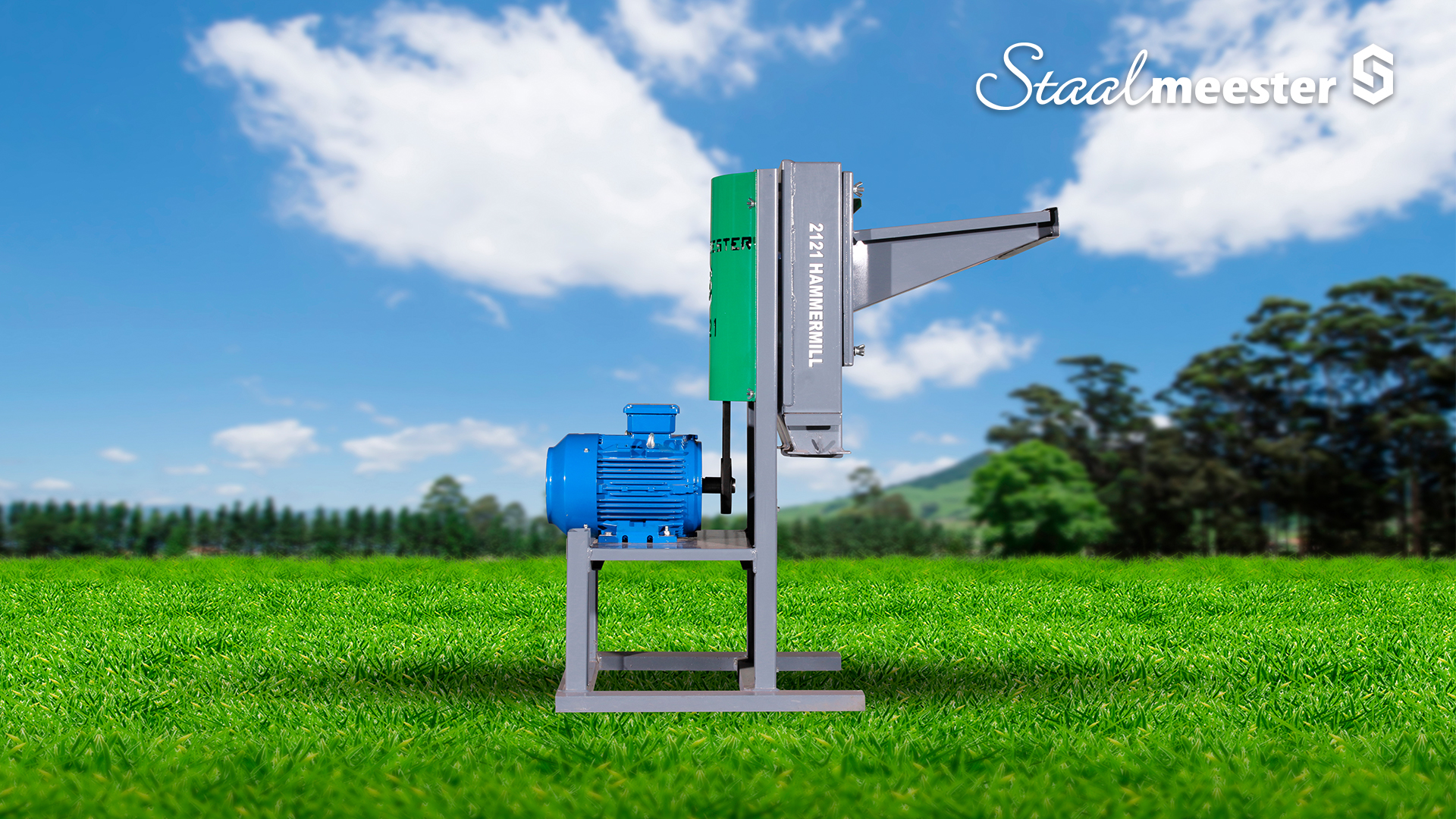

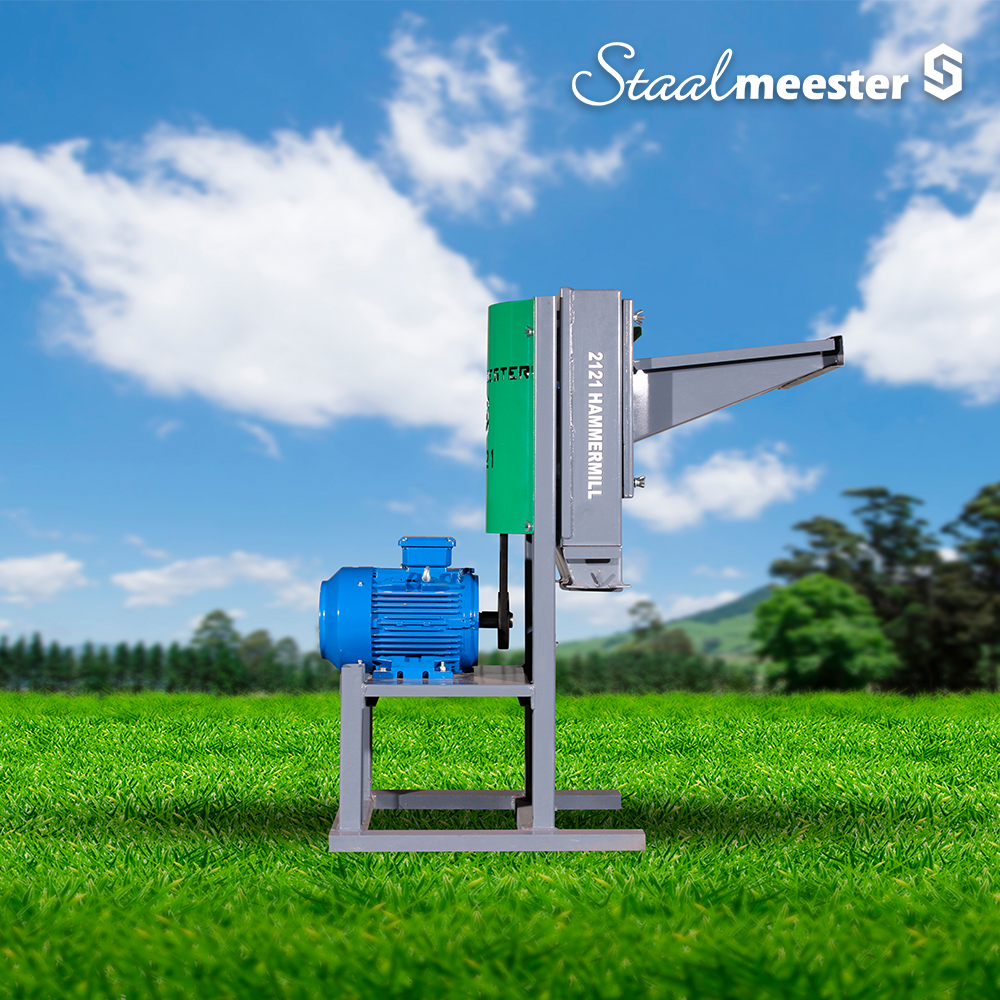

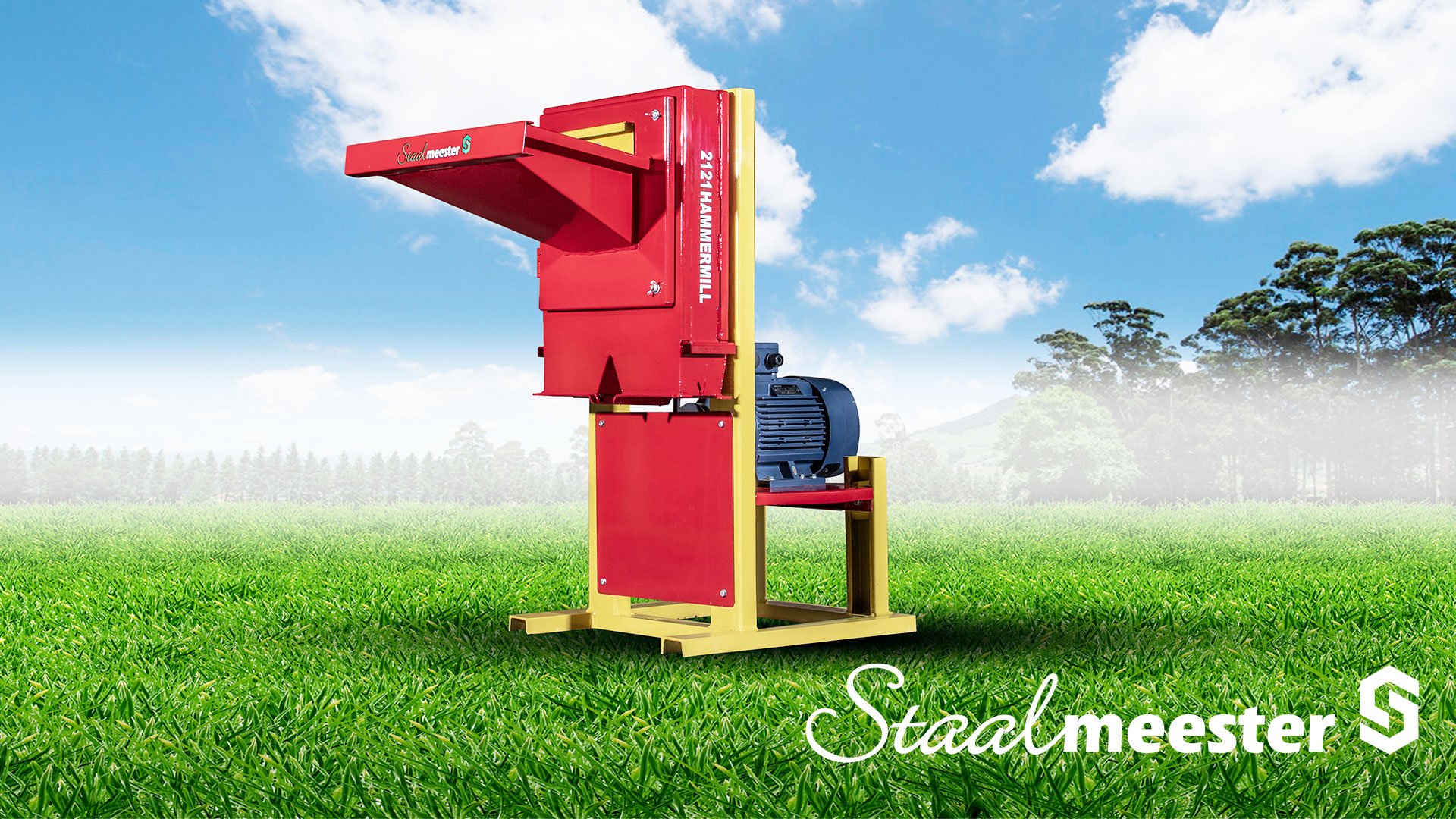

2121 Hammer Mill Electric

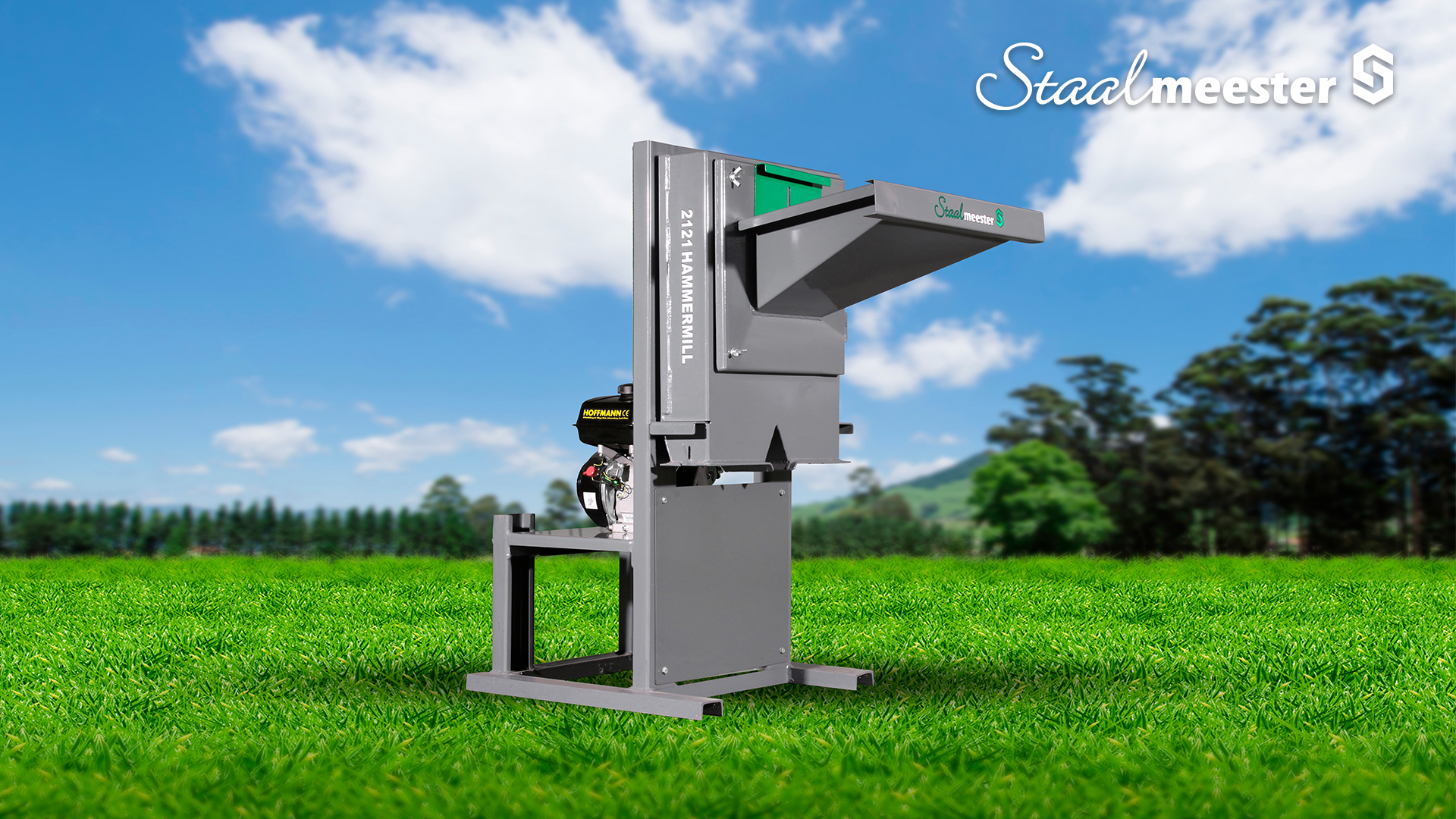

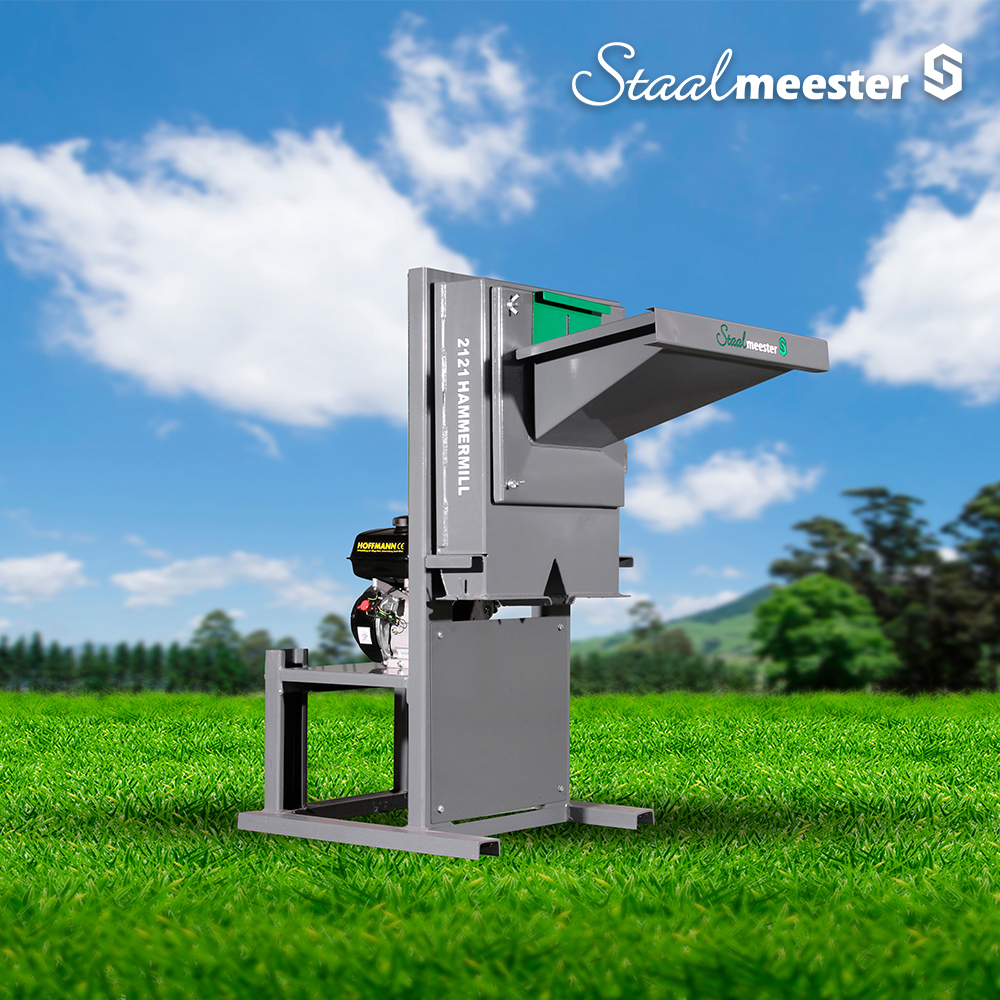

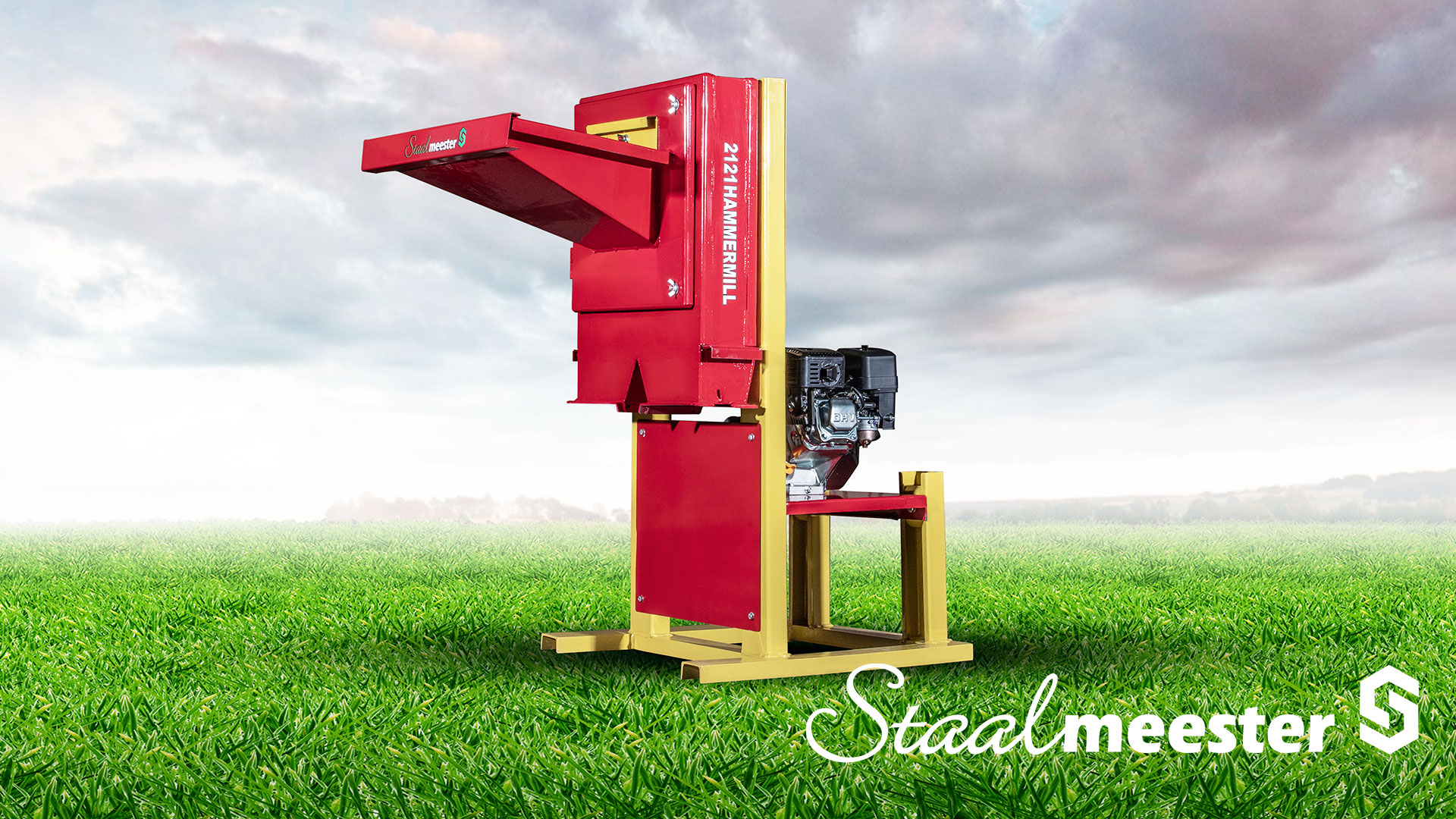

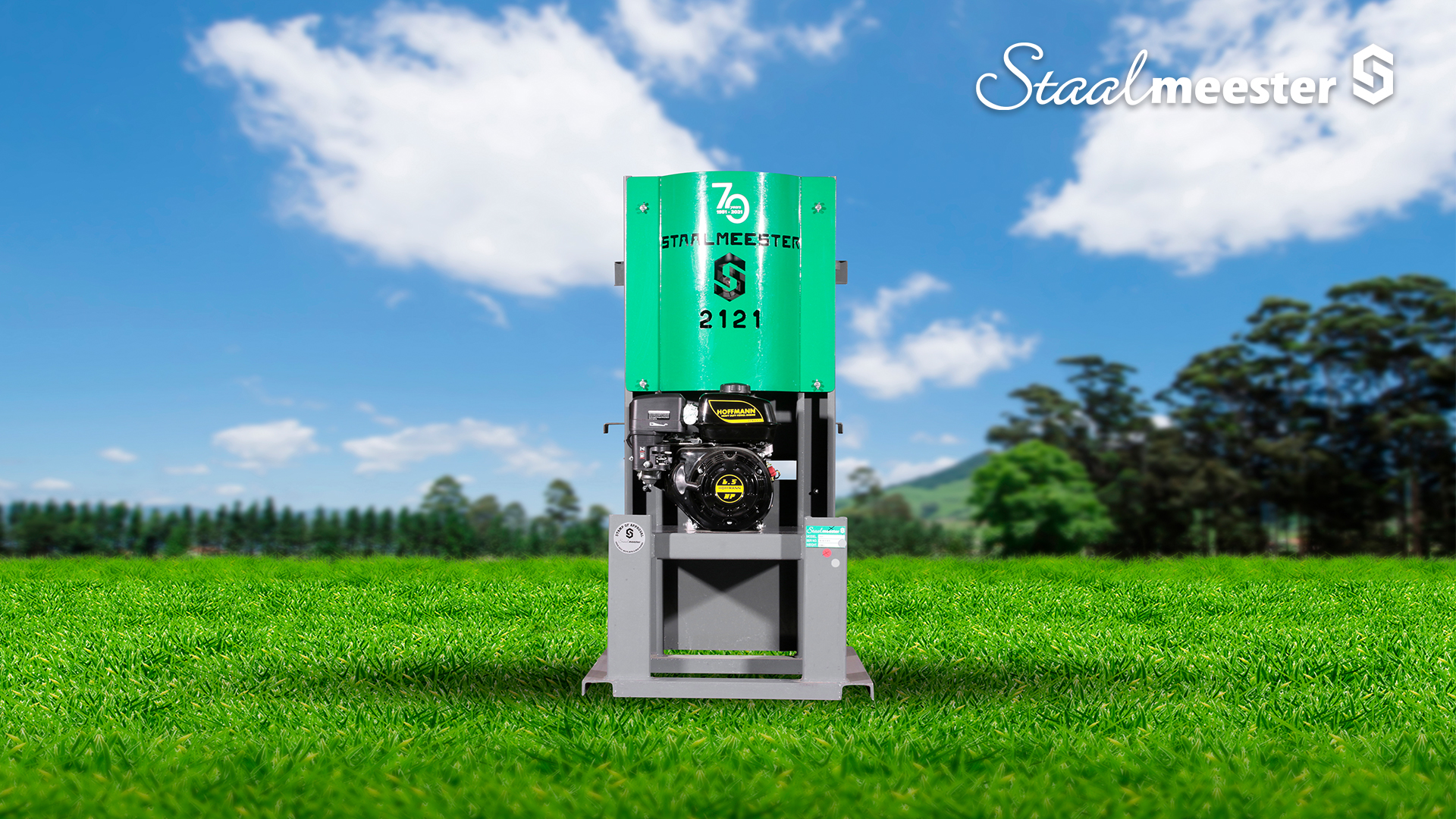

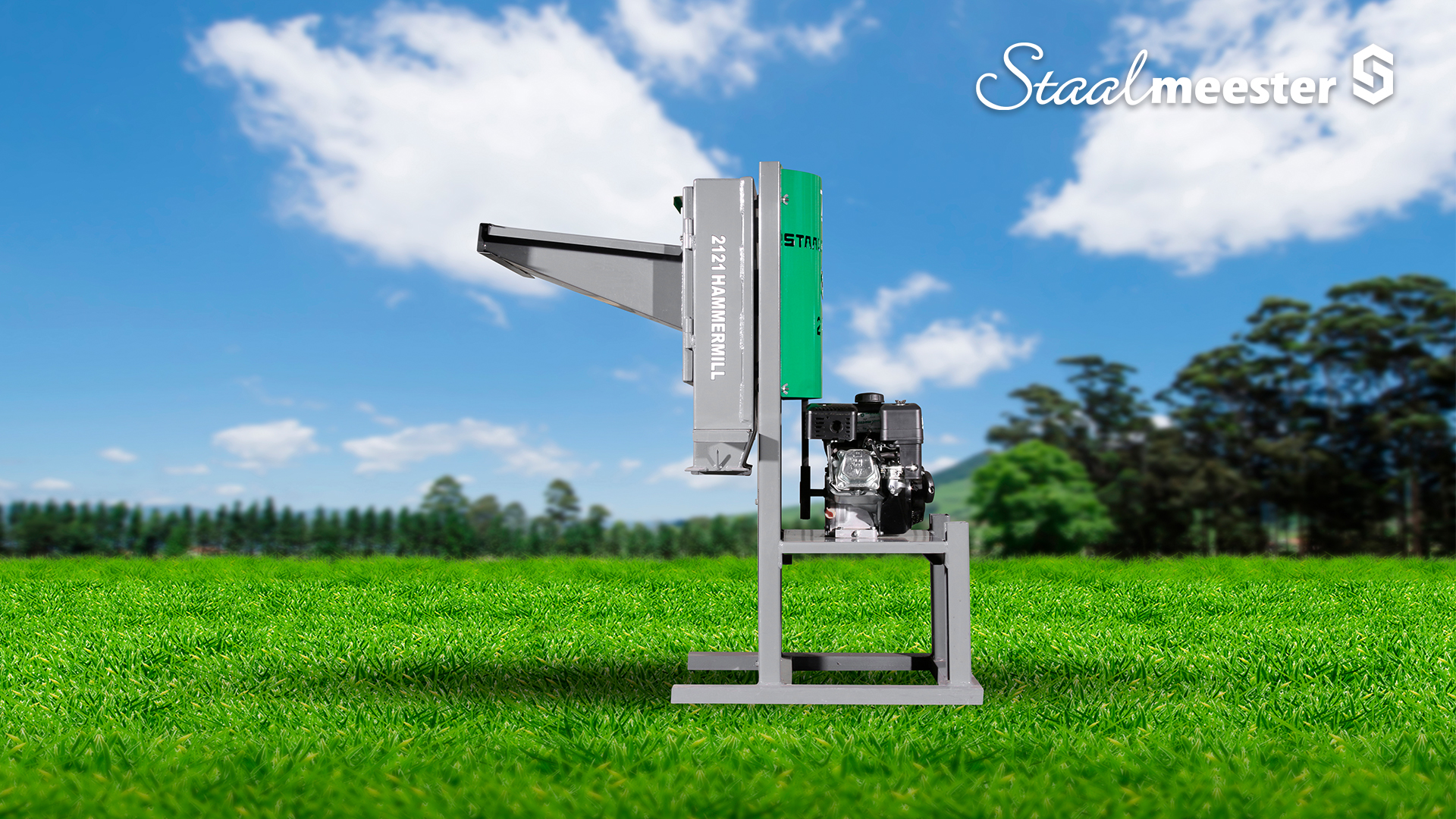

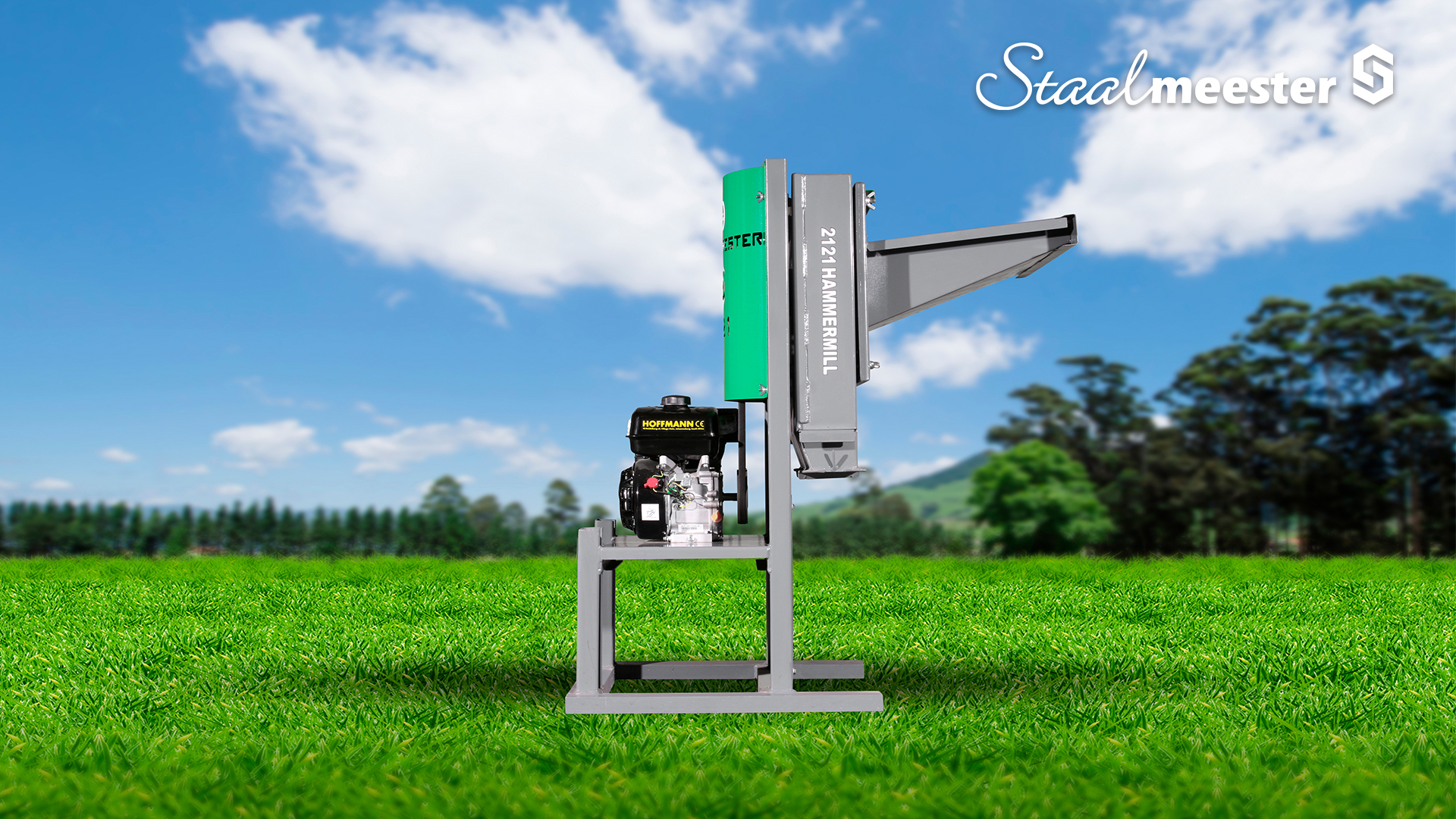

2121 Hammer Mill Petrol

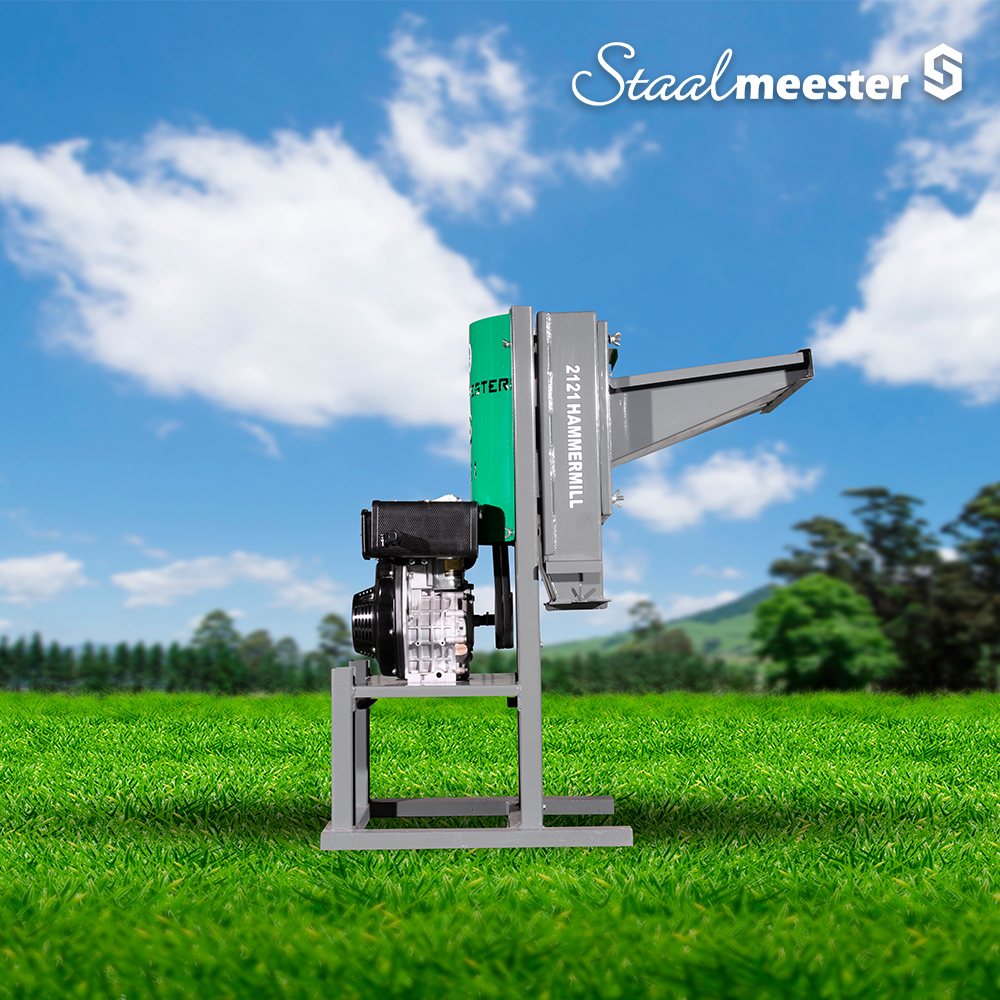

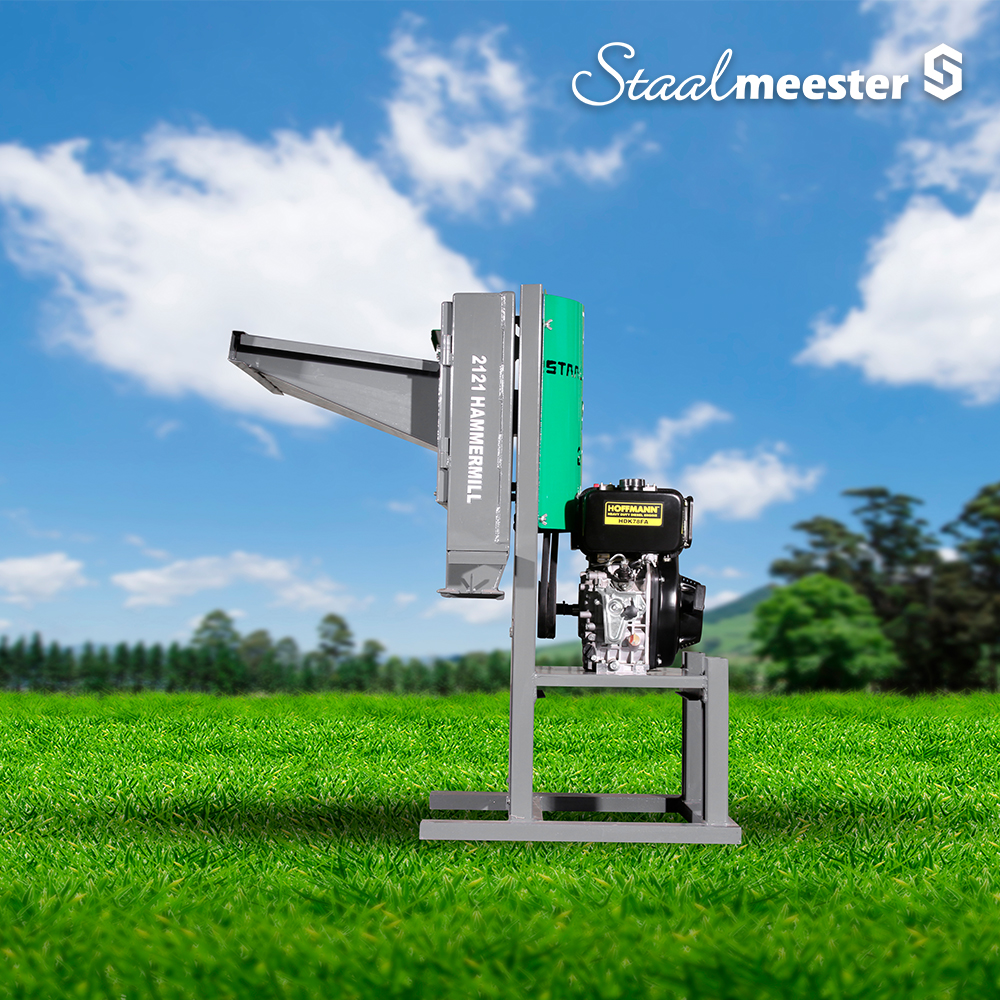

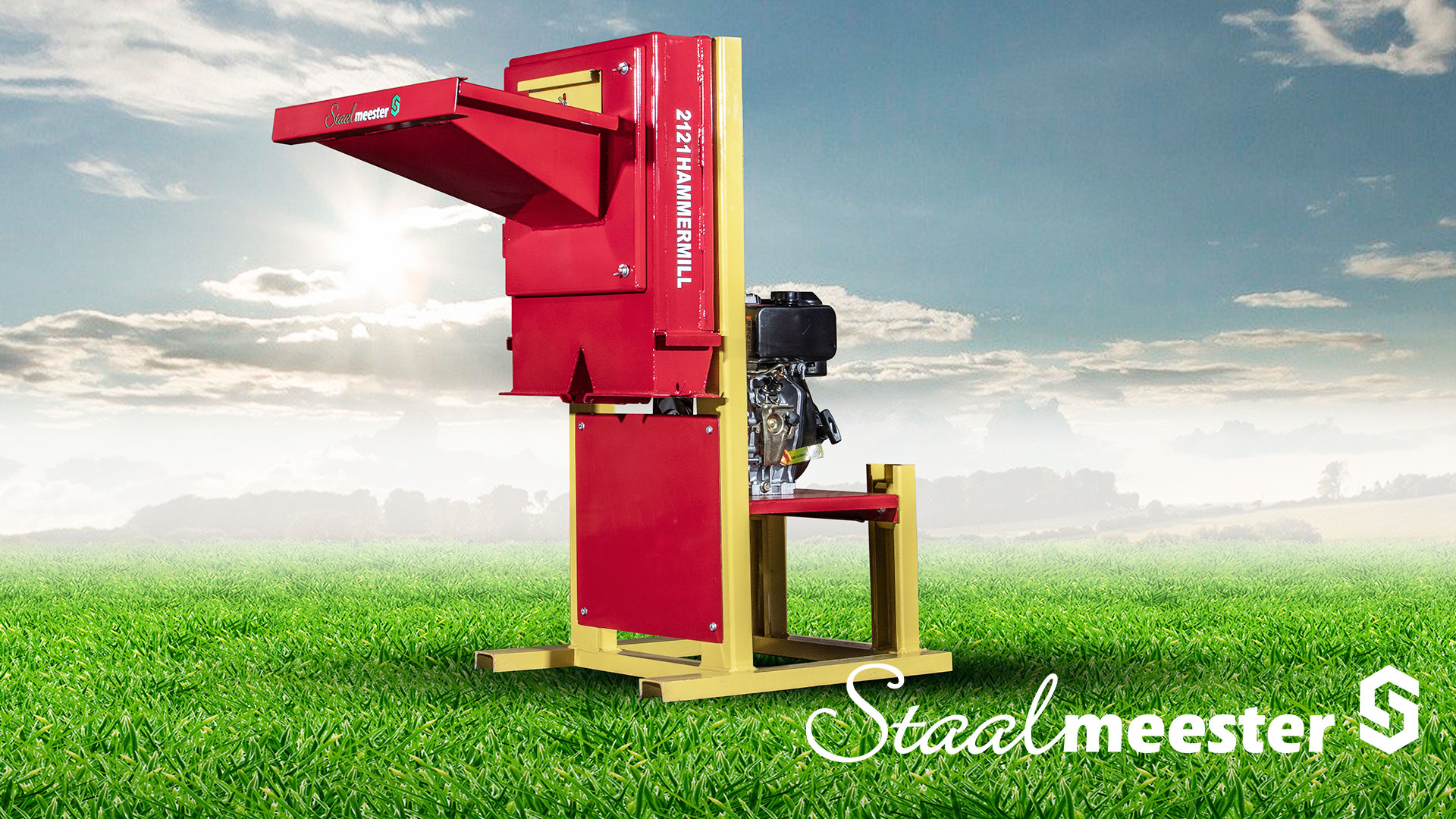

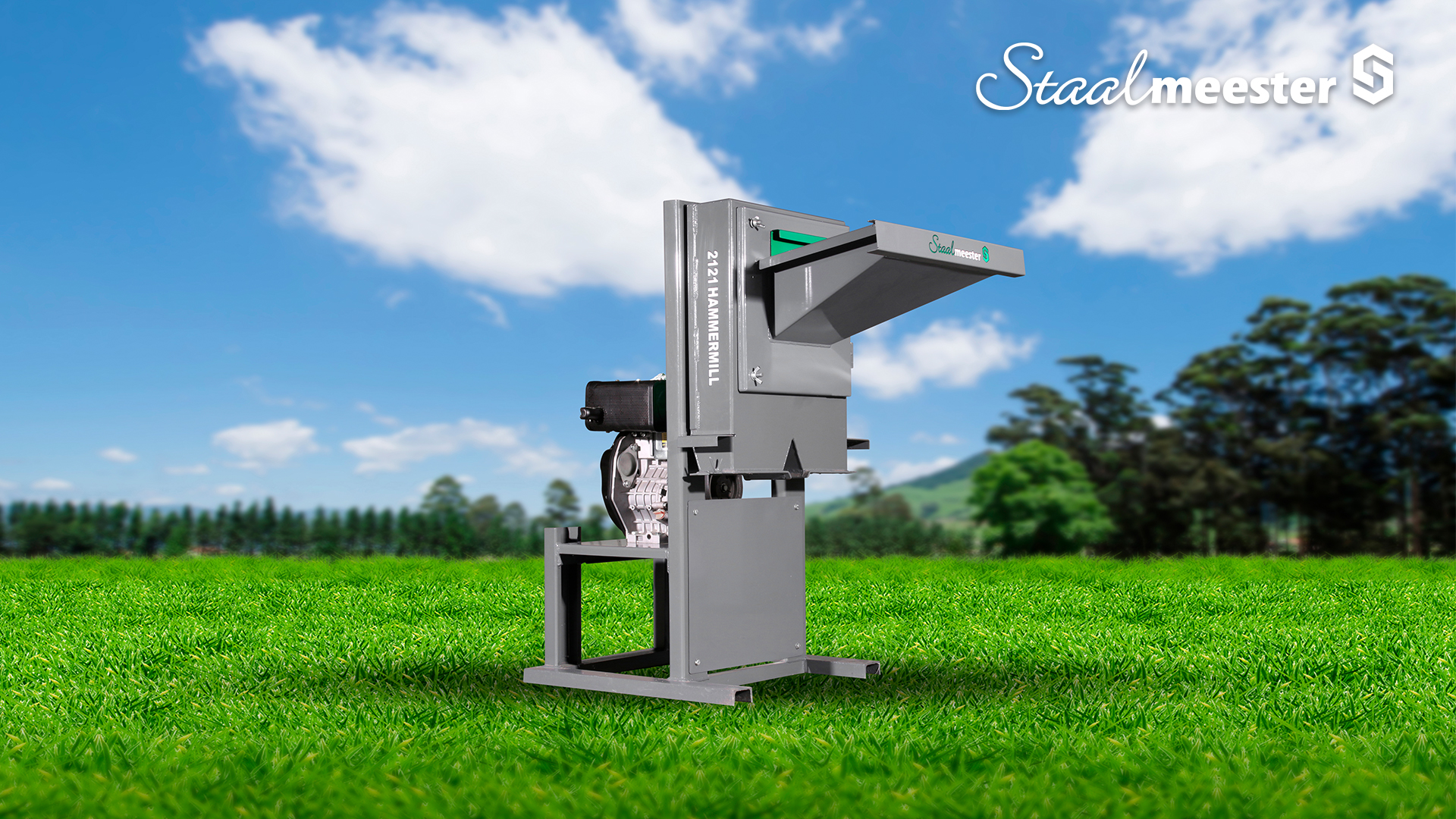

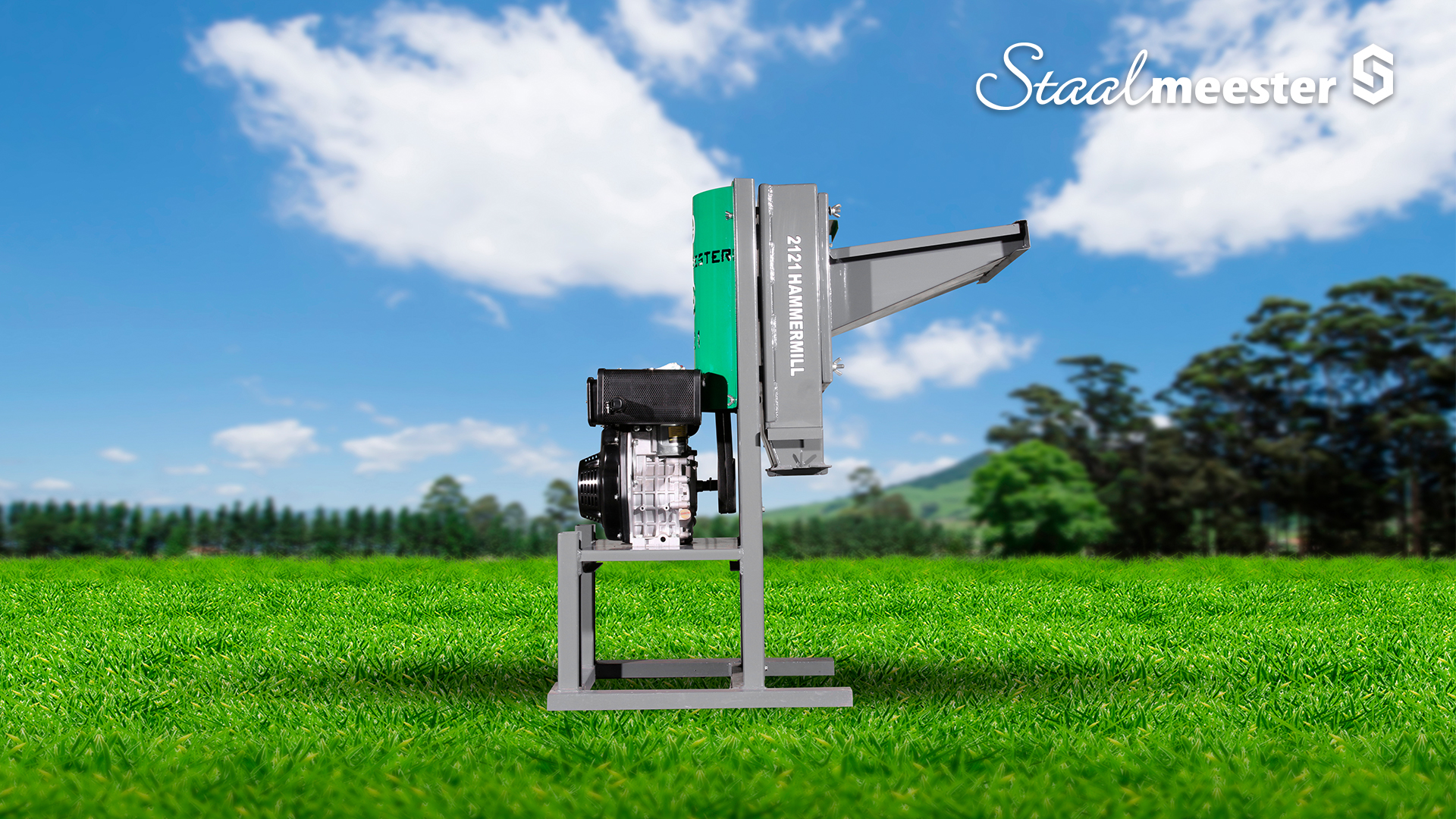

2121 Hammer Mill Diesel
